1080P IR850+RGB Dual Lens Camera Module Wide Dynamic 60 Frames MIPI Interface

1080P IR850+RGB Dual Lens Camera Module Wide Dynamic 60 Frames MIPI Interface

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS21576-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: SC2310 Sensor
Resolution: H1920*V1080 Dimensions: (customizable)
Pixel Size: 3.0um X3.0um Focus Type: Fixed Focus
Interface: MIPI Feature: HD
Highlight:

IR850+RGB Dual Lens Camera Module

,

MIPI Dual Lens Camera Module

,

Wide Dynamic 1080P Camera Module

Product Description

1080P IR850+RGB Dual Lens Wide Dynamic Camera Module 60 Frames MIPI Interface​



2MP Camera Module

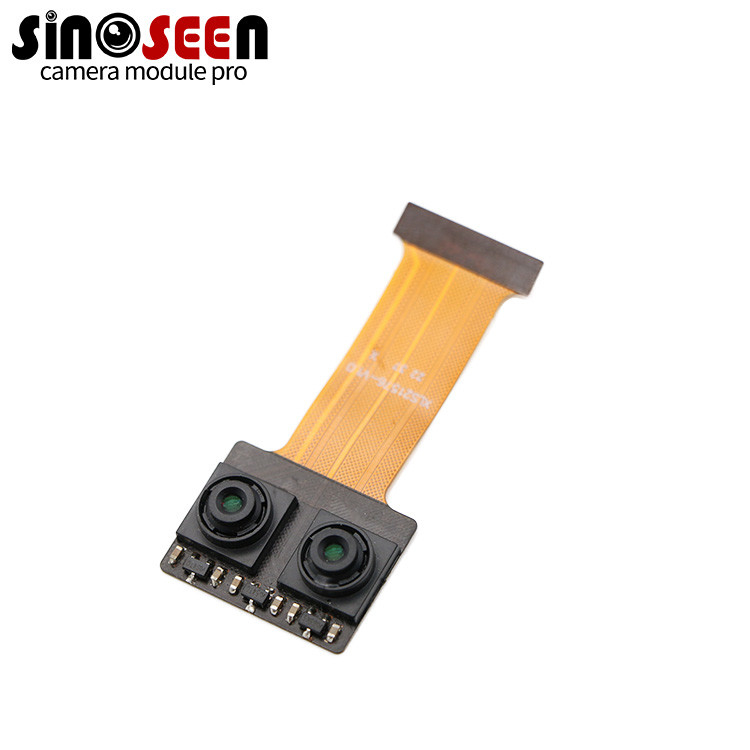

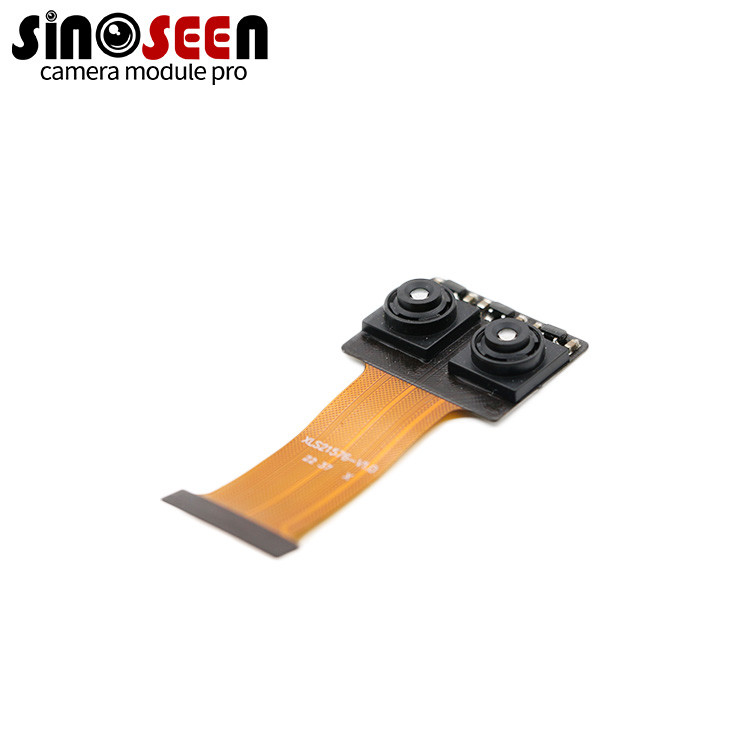

The camera module supports video recording in 1080P (1920 x 1080 pixels) resolution, delivering HD video quality with excellent detail and clarity. The camera module contains two lenses, one with an IR850 filter and the other with an RGB filter. The IR850 lens captures images in infrared (IR) light, enabling day/night vision or enhanced visibility in low-light or nighttime conditions. RGB lenses capture images under standard visible light, providing accurate color representation. And it is designed with wide dynamic range technology, allowing it to handle scenes with various lighting conditions. WDR helps capture details in both bright and dark areas of an image simultaneously, resulting in a more balanced and clear image.


Specification

Model No

SNS21576-V1.0

Sensor

SC2310 sensor

Pixel

2 Mega Pixel

Most effective pixels

H1920*V1080

Pixel Size

3.0um x3.0um

Image Area

5808µm x 3288µm

Compression format

YUV2 / MJPG

Resolution

See above

Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

TBDdB

Dynamic range

TBDdB

Sensitivity

3700 mV/lux-sec

Interface type

mipi


Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Power supply requirement

AVDD28: 2.7~3.3V(Typ.2.8V)

DVDD18: 1.15~1.3V(Typ.1.2V)

IOVDD: 1.7~3.0V(Typ.1.8V)

Audio frequency

Optional

Power consumption

DC 5V, 200mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Storage temperature

0~60℃

Operating temperature

-20~80℃

1080P IR850+RGB Dual Lens Camera Module Wide Dynamic 60 Frames MIPI Interface 0
