Dual Lens 2MP Camera Module With Fill Light And USB Interface For Enhanced Functionality
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1118-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/3’GC2083 CMOS |
|---|---|---|---|
| Resolution: | H1920*V1080 | Dimensions: | (customizable) |
| Pixel Size: | 2.7um X2.7um | Focus Type: | Fixed Focus |
| Interface: | USB | Feature: | HD |
| High Light: | Dual Lens 2MP Camera Module,2MP Camera Module With Fill Light,USB Interface Dual Lens Camera Module |
||
Product Description

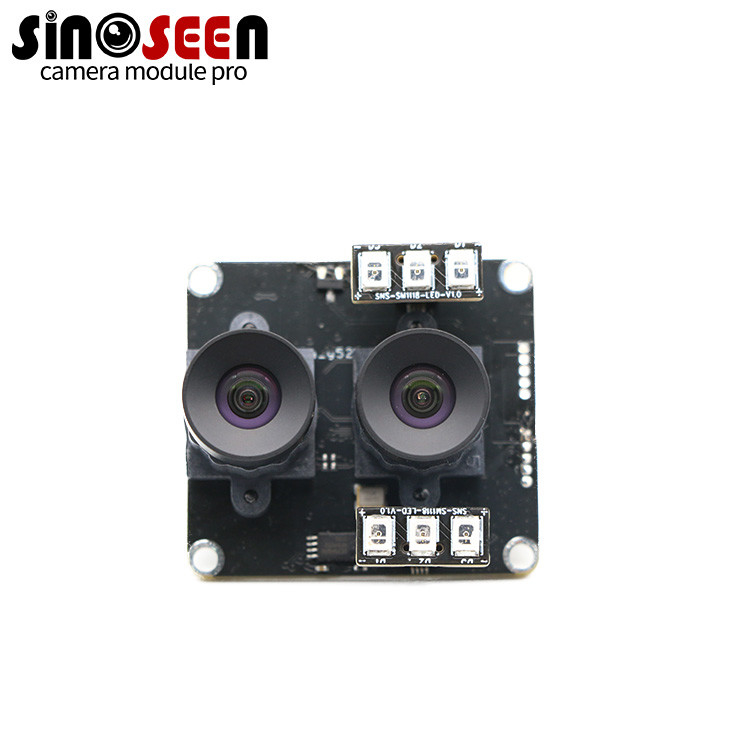

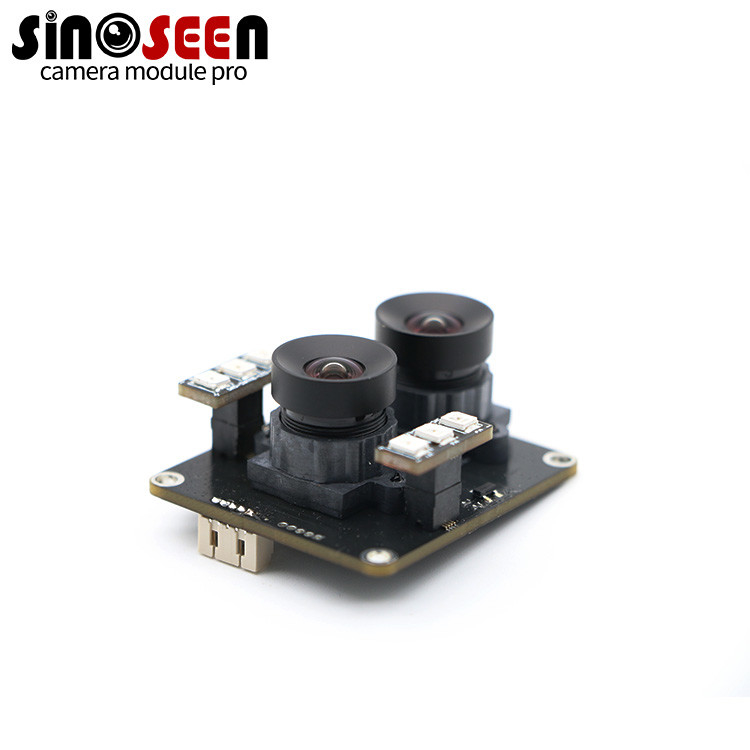

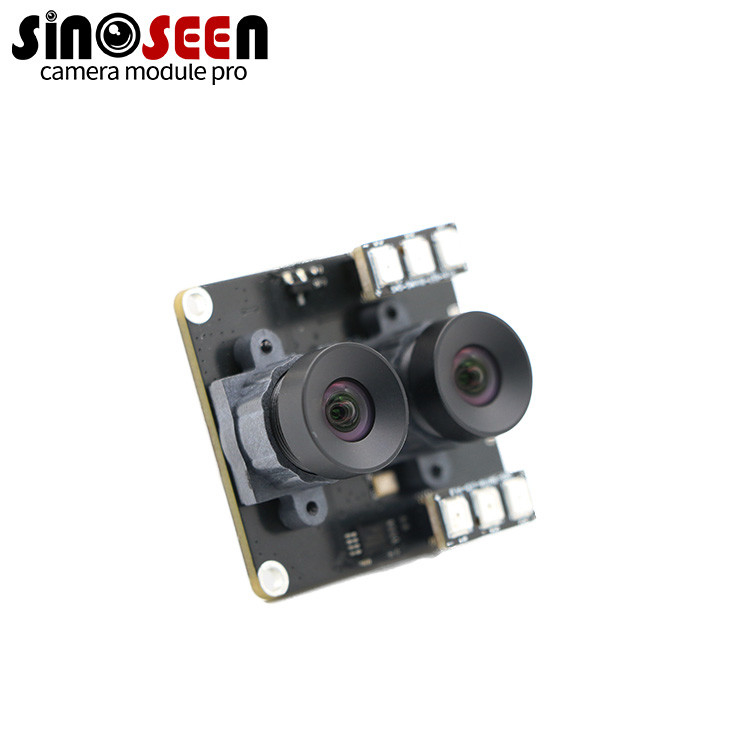

2MP Dual Lens Camera Module With Fill Light And USB Interface For Enhanced Functionality
2MP USB Camera Module
The camera module's dual-lens design includes two separate lenses, each with its own sensor. This configuration allows images to be captured simultaneously or independently, providing the flexibility to capture different perspectives or apply different effects. The inclusion of a fill light in the camera module improves image quality in low-light environments. Fill light provides additional illumination to ensure your subject is well-lit, reducing shadows and increasing visibility. This feature is particularly useful in applications such as video conferencing, live streaming, or low-light photography.
USB interface allows easy connection to host devices. The USB interface provides a convenient and widely compatible connection method, allowing the camera module to be easily integrated into various devices such as computers, laptops, tablets or embedded systems.
The combination of dual lenses, fill light, and USB port provides enhanced functionality and flexibility for capturing images and video. It delivers higher image quality in challenging lighting conditions and integrates seamlessly with a variety of devices.
|
Model No |
SNS-SM1118-V1.0 |
|
Sensor |
1/3’GC2083 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
H1920*V1080 |
|
Pixel Size |
2.7um x2.7um |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
