Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS11874-V1.0
| Attribute | Value |
|---|---|
| Type | MIPI Camera Module |
| Sensor | OV9281 1/4 inch |
| Resolution | 1MP 1280×800 |
| Dimensions | Customizable |
| Frame Rate | 120FPS |
| Lens FOV | 48° (optional) |
| Interface | MIPI |
| Module | SNS11874-V1.0 |
|---|---|
| Sensor | OV9281 CMOS |
| Pixel | 1MP |
| Effective Pixels | 1280×800 |
| Pixel Size | 3μm×3μm |
| Frame Rate | 120fps |
| Focus Type | Fixed focus |
| Output Interface | 2-lane MIPI |
| Output Formats | 10-bit RAW |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Supported OS | Windows, Linux, MacOS, Android |

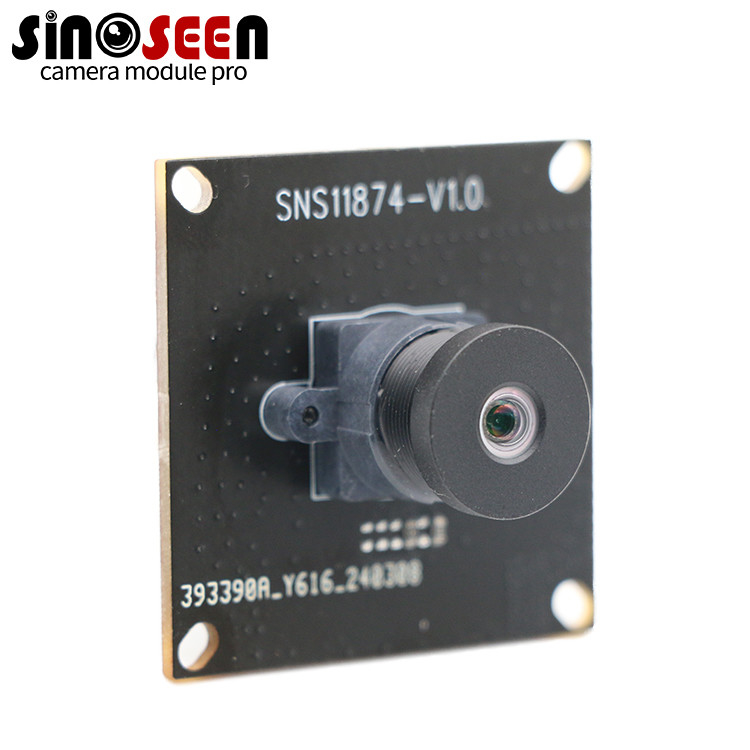

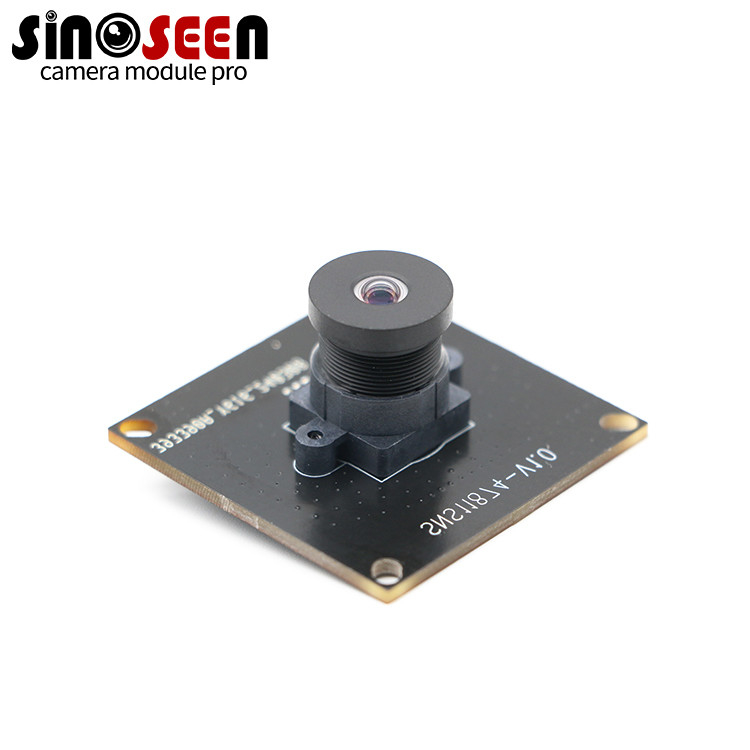

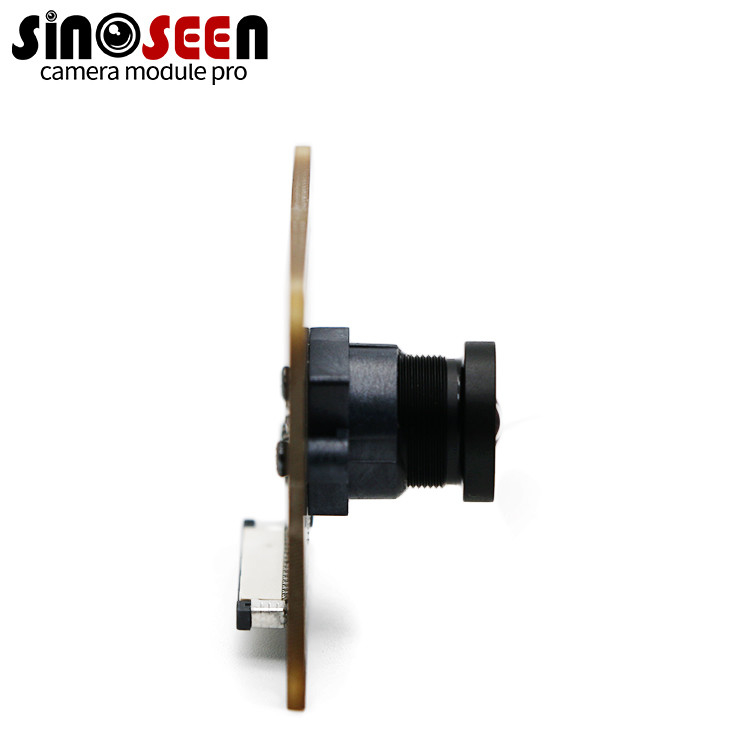

This high-performance MIPI camera module is specifically designed for smart transportation systems, featuring the OV9281 CMOS sensor that delivers 1MP resolution (1280×800) at an impressive 120FPS frame rate. The fixed-focus lens ensures clear imaging without manual adjustments, while the MIPI interface provides efficient data transmission.
