Name: 8MP IMX317 USB Camera Module 4K 30FPS Fixed Focus
Brand: Shenzhen Sinoseen Technology Co., Ltd
SKU: SNS-DZ1009-V1.0
Availability: InStock

Home > products > USB Camera Module >

8MP IMX317 USB Camera Module 4K 30FPS Fixed Focus

Digital Cameras 8MP Camera Module

IMX317 CMOS 8MP Camera Module

USB Interface 8MP Camera Module

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-DZ1009-V1.0

Request A Quote

Product Details

Type:

USB Camera Module

Sensor:

IMX317 1/2.5 Inch

Resolution:

8MP 3840*2160

Dimensions:

Customizable

Frame Rate:

30FPS

Lens FOV:

82°(optional)

Interface:

USB

Highlight:

Digital Cameras 8MP Camera Module

IMX317 CMOS 8MP Camera Module

USB Interface 8MP Camera Module

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Tray+Anti-static bag in carton box

Delivery Time

2-3weeks

Payment Terms

T/T

Supply Ability

500000 pieces/month

USB2.0 Camera Module OV9782 720P 120fps for Barcode Scanning

Get Best Price

video

IMX317 USB Camera Module 8MP 4K 30FPS Compact Design

Get Best Price

video

8MP IMX317 USB Camera Module 4K 30FPS

Get Best Price

video

IMX317 USB Camera Module 8MP 4K 30FPS Fixed Focus

Get Best Price

Contact Now

Product Description

8MP IMX317 USB Camera Module 4K 30FPS Fixed Focus

Product Attributes

Attribute	Value
Type	USB Camera Module
Sensor	IMX317 1/2.5 inch
Resolution	8MP 3840*2160
Dimensions	Customizable
Frame Rate	30FPS
Lens FOV	82°(optional)
Interface	USB

Product Overview

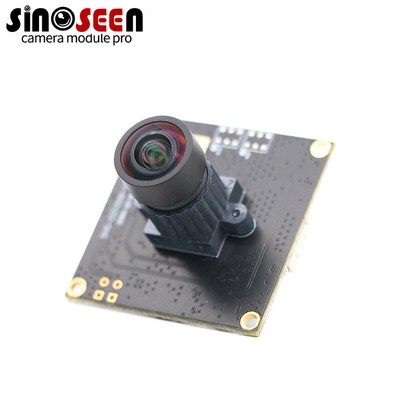

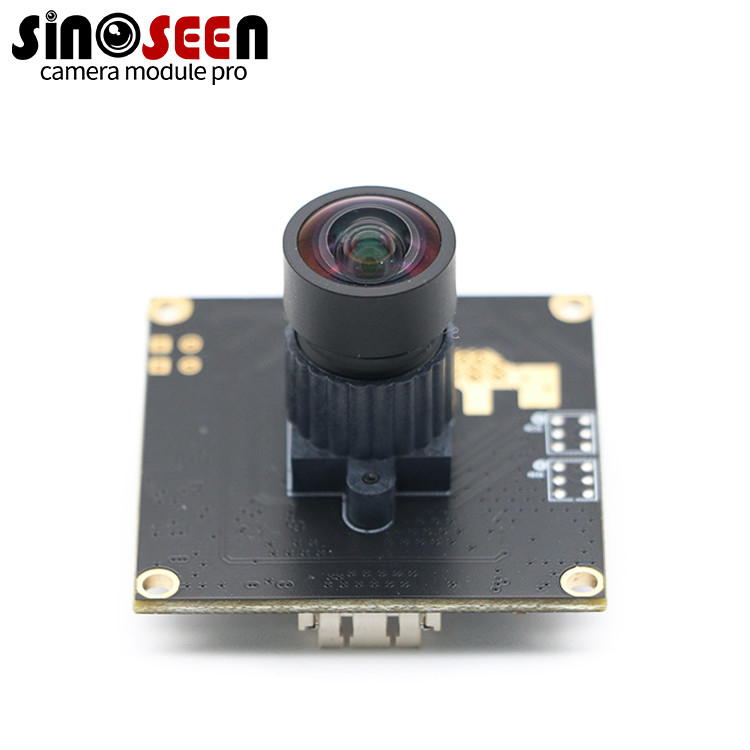

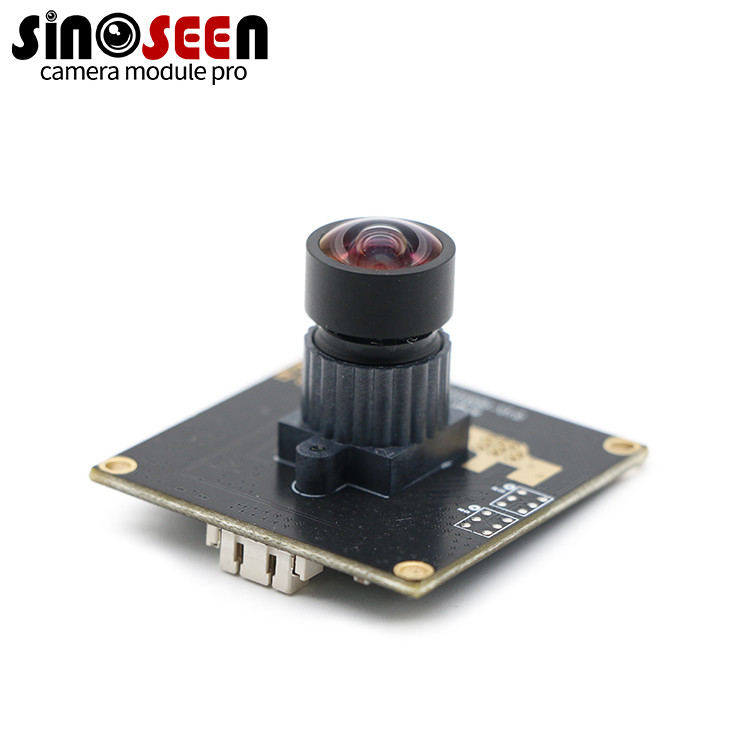

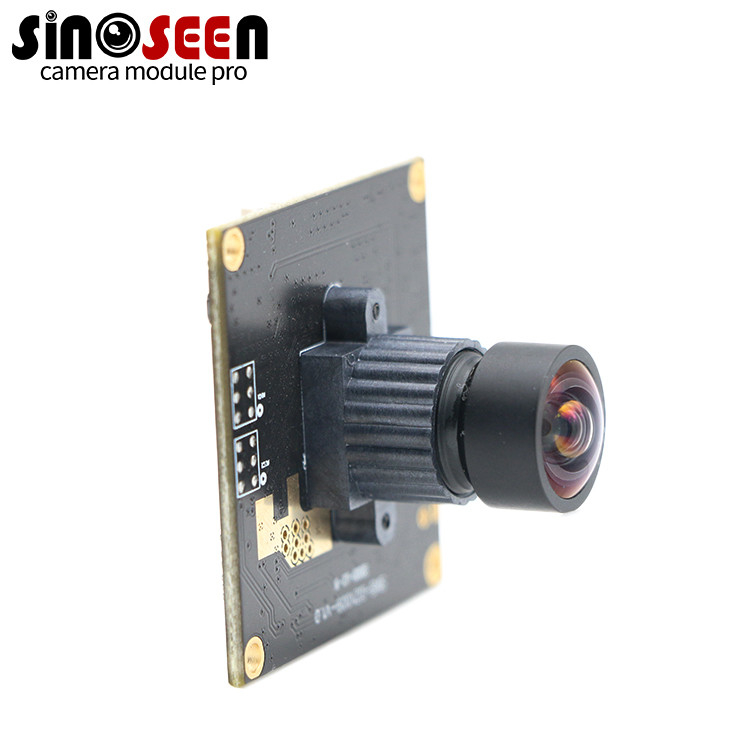

This high-performance 8MP camera module features the IMX317 CMOS sensor, delivering 4K video at 3840×2160 resolution with 30FPS frame rate. The fixed-focus design and USB interface make it ideal for integration into various digital imaging applications.

Key Features

High-quality 4K video capture at 30FPS
Compact fixed-focus design reduces size and complexity
Universal USB interface for easy integration
Excellent image quality with IMX317 sensor
Wide operating temperature range

Technical Specifications

Module	SNS-DZ1009-V1.0
Sensor	IMX317 CMOS
Image sensor size	1/2.5 inch
Pixel	8MP
Most effective pixels	3840×2160
Pixel Size	1.62μm×1.62μm
Frame rate	30fps
Focus type	Fixed focus
Output interface	USB2.0
Video output	MJPG/YUV
Output formats	RAW Bayer 10bits
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
Support OS	Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+

Applications

Ideal for digital cameras, dash cams, sports cameras, surveillance systems, and industrial applications requiring compact, high-resolution imaging solutions.
