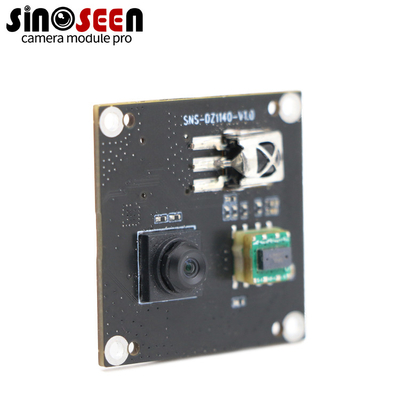

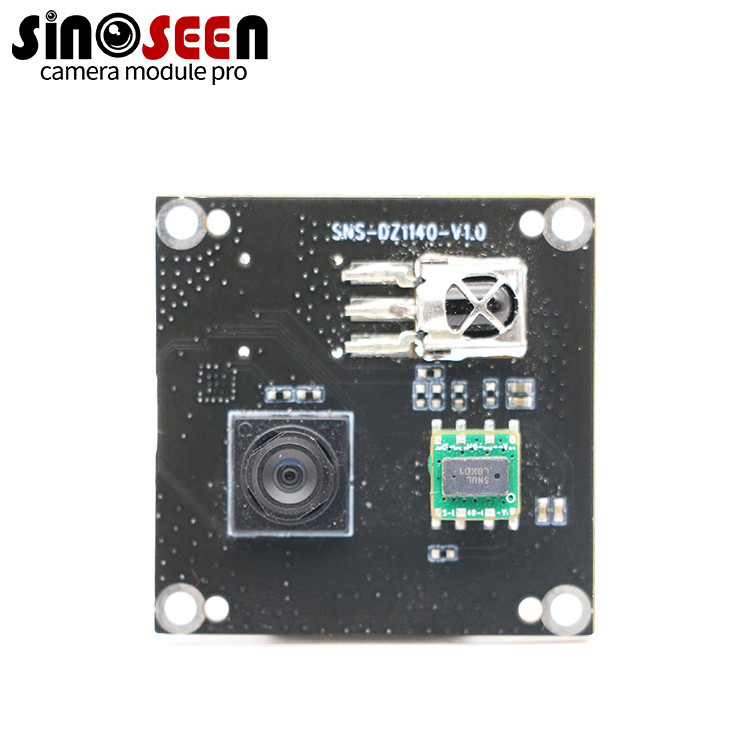

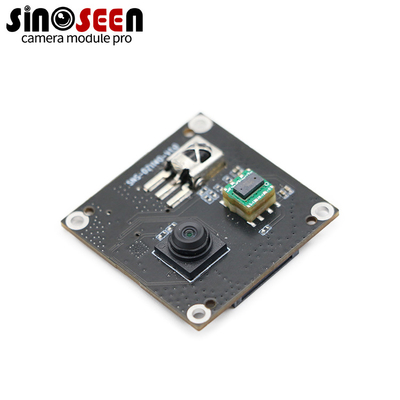

30W 640*480 Fixed focus with BF20A6 1/10 inch CMOS sensor USB interface 30FPS for Video conference phone equipment
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1140-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | BF20A6 1/10 Inch |
|---|---|---|---|
| Resolution: | 30W 640*480 | Dimensions: | Customizable |
| Frame Rate: | 30FPS | Lens FOV: | 51° |
| Interface: | USB | ||
Product Description
30W 640*480 Fixed focus with BF20A6 1/10 inch CMOS sensor USB interface 30FPS for Video conference phone equipment
This camera module is a compact and versatile solution for video conferencing applications. It features a 1/10 inch CMOS sensor with a resolution of 640x480 pixels and can capture video at 30 frames per second. The fixed focus lens provides a simple and reliable imaging solution without the need for a complex autofocus machine, and the camera module has a USB interface for easy integration into a variety of video conferencing systems and devices. It is ideal for use in video conferencing phone equipment, providing high-quality video capture capabilities in a compact and cost-effective package.
The BF20A6 CMOS sensor used in this module has good low-light performance and sensitivity, making it suitable for a variety of lighting conditions. The 30W power consumption of this module also makes it an energy-efficient choice for video conferencing applications.
Overall, this 30W 640*480 fixed focus camera module with USB interface and 30FPS capture rate is a reliable and practical solution for integrating high-quality video capabilities into video conferencing phone equipment and other similar applications.
Specification
| Module |
SNS-DZ1140-V1.0 |
| Sensor | BF20A6 CMOS |
| Image sensor size | 1/10 inch |
| Pixel | 30W |
| Most effective pixels | 640*480 |
| Pixel Size | 2.25um*2.25um |
| Frame rate | 30fps |
| Optical distortion | <=15.5% |
| Image sensor Data output | RAW Data 10bits |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | YUV |
| Output formats | RAW Bayer 10bits |
| Max S/N ratio | TBD |
| Dynamic | TBD |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
