Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-DZ1140-V1.0
Module | SNS-DZ1140-V1.0 |
---|---|
Sensor | BF20A6 CMOS |
Image Sensor Size | 1/10 inch |
Resolution | 30W (640×480) |
Pixel Size | 2.25μm × 2.25μm |
Frame Rate | 30fps |
Optical Distortion | ≤15.5% |
Focus Type | Fixed focus |
Output Interface | USB 2.0 |
Video Output | YUV |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -20°C to 70°C |
Supported OS | Windows XP through 10, Linux (kernel 2.6.26+), Mac OS X 10.4.8+, Android 4.0+ |

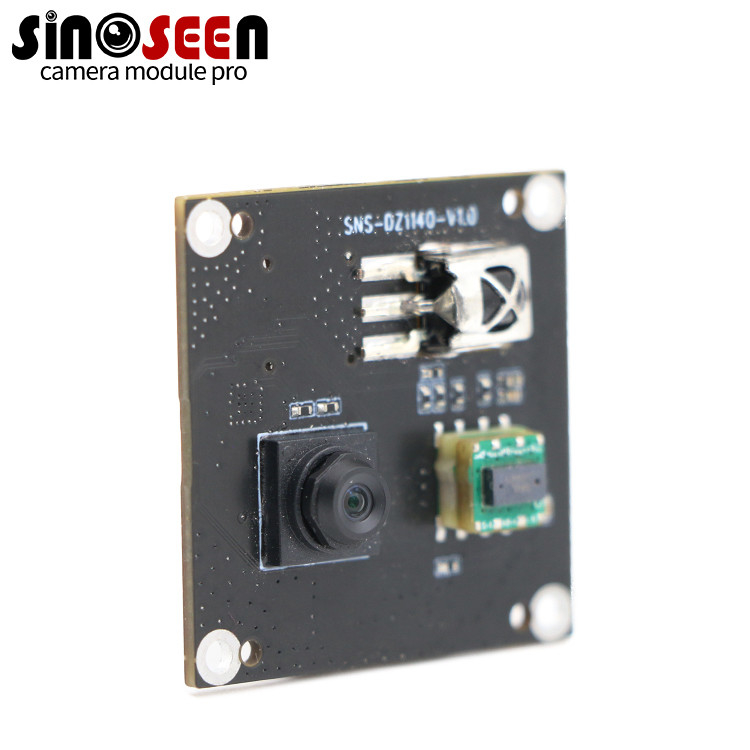

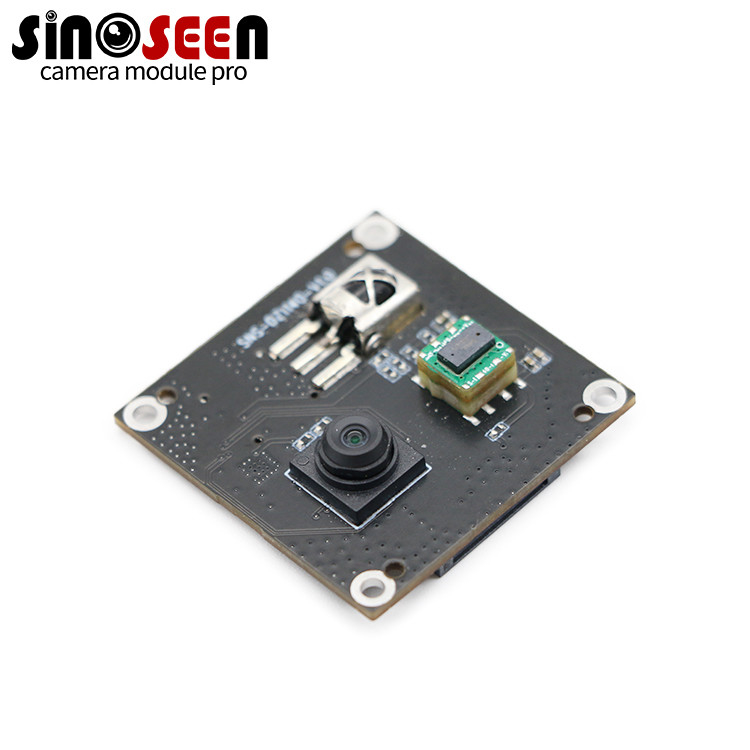

This compact USB camera module is specifically designed for video conferencing applications, featuring a BF20A6 1/10 inch CMOS sensor that delivers 640×480 resolution video at 30 frames per second. The fixed focus lens eliminates the need for complex autofocus mechanisms while maintaining reliable image quality.
The module's USB 2.0 interface ensures easy integration with various video conferencing systems and devices. With excellent low-light performance and sensitivity, this camera performs well in diverse lighting conditions while maintaining energy efficiency with just 30W power consumption.
Ideal for video conferencing phone equipment, this module provides a cost-effective solution for adding high-quality video capture capabilities to professional communication systems.
