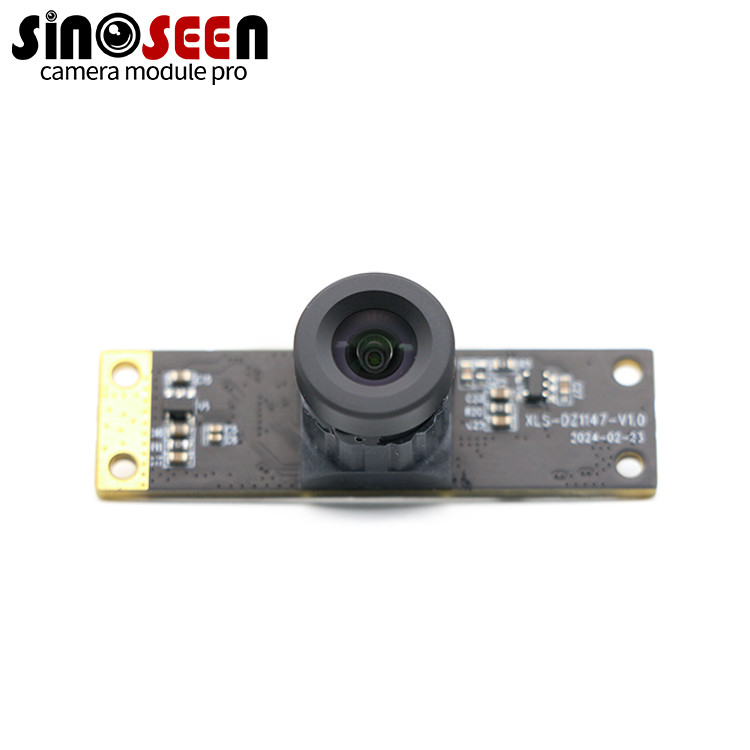

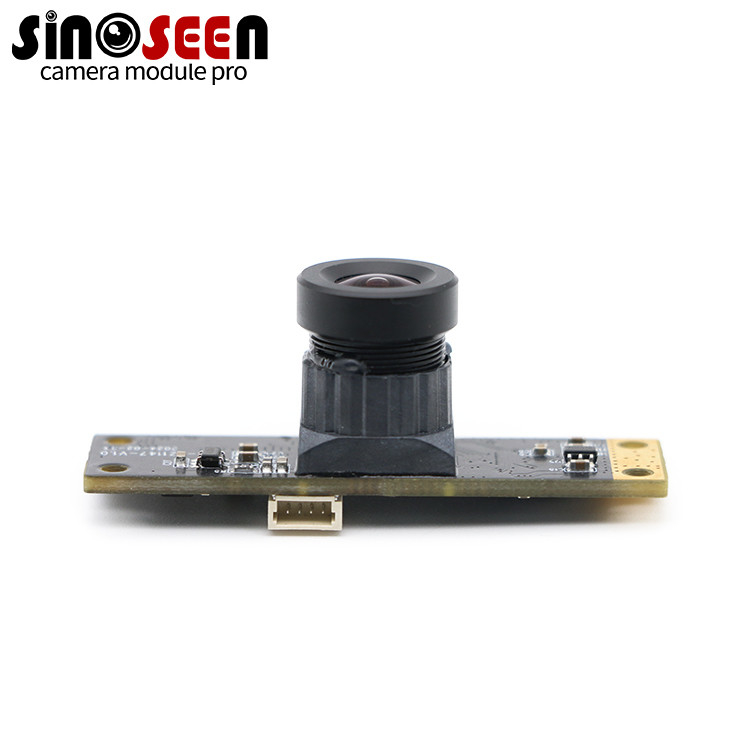

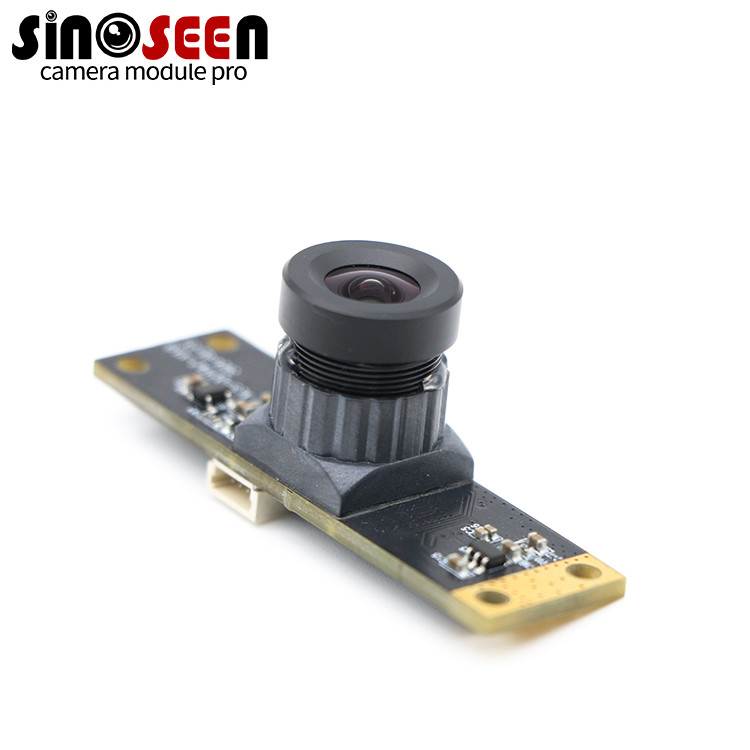

2MP 1920*1080 Fixed focus USB interface 25FPS with PS5268 sensor camera module for Driving Recorder
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1147-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | PS5268 1/2.7 Inch |
|---|---|---|---|
| Resolution: | 2MP 1920*1080 | Dimensions: | Customizable |
| Frame Rate: | 25FPS | Lens FOV: | 57° |
| Interface: | USB | ||
Product Description
2MP 1920*1080 Fixed focus USB interface 25FPS with PS5268 sensor camera module for Driving Recorder
The PS5268 is a 2-megapixel (2MP) CMOS image sensor capable of capturing 1920 x 1080 full HD (1080p) video at 25 frames per second (FPS). It is a fixed-focus camera module with a USB interface.
Key features of the PS5268 camera module:
Resolution: The sensor has a resolution of 2MP (1920 x 1080 pixels), which allows it to capture full HD 1080p video.
Frame Rate: The camera module can record video at 25 FPS, which provides smooth motion capture.
Fixed Focus: The camera module has a fixed-focus lens, simplifying the design and reducing the cost compared to autofocus or varifocal lenses.
USB Interface: The camera module communicates through a USB interface, making it easy to integrate with a variety of devices, such as computers, laptops, or embedded systems that support USB connectivity.
Applications: This type of camera module is well-suited for applications that require a basic, cost-effective full HD camera solution, such as security and surveillance systems, webcams, IoT devices, and various embedded imaging applications.
The PS5268 2MP 1920 x 1080 fixed-focus camera module with a USB interface provides a balance between image quality, frame rate, and ease of integration. It can be a suitable choice for projects or applications that need a reliable, high-definition camera input with a straightforward USB connectivity option.

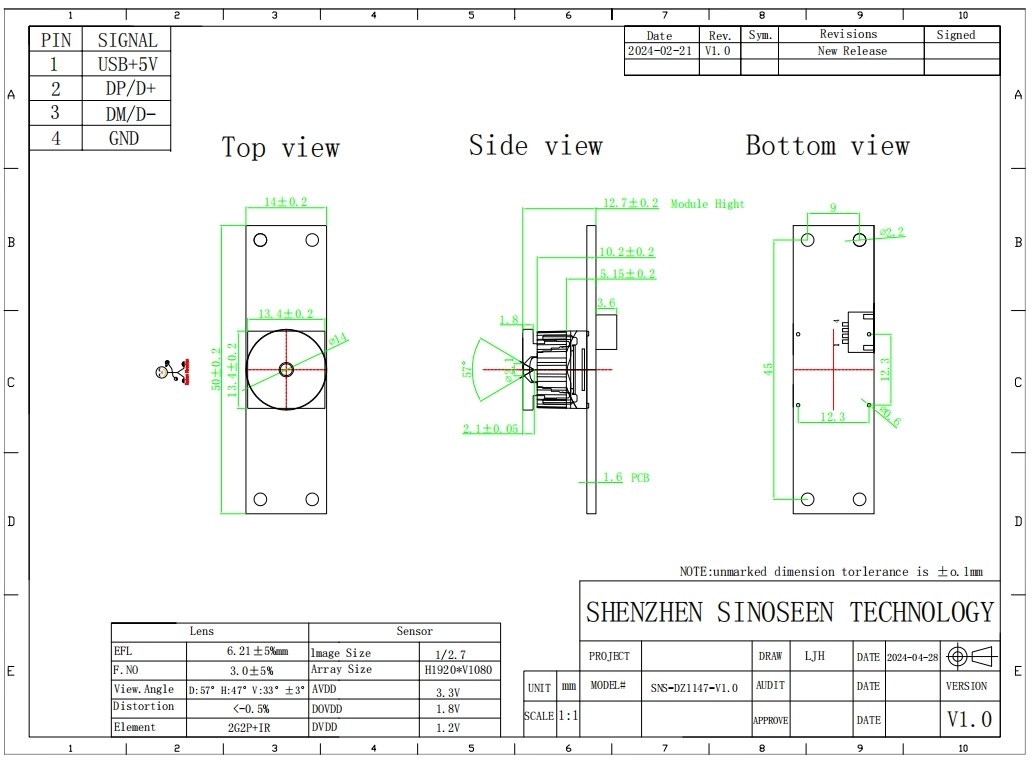

Specification
| Module |
SNS-DZ1147-V1.0 |
| Sensor | PS5268 CMOS |
| Image sensor size | 1/2.7 inch |
| Pixel | 2MP |
| Most effective pixels | 1920*1080 |
| Pixel Size | 3.0um*3.0um |
| Frame rate | 25fps |
| Optical distortion | <-0.5% |
| Image sensor Data output | RAW Data 10bits |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | MJPG/YUV |
| Output formats | RAW Bayer 10bits |
| Max S/N ratio | TBD |
| Dynamic | TBD |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
