Name: Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail
Brand: Shenzhen Sinoseen Technology Co., Ltd
SKU: SNS-DZ1142-V1.0
Availability: InStock

Home > products > USB Camera Module >

Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail

2.9um*2.9um Pixel Size USB Camera Module

Customizable Dimensions USB Camera Module

Place of Origin:

China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-DZ1142-V1.0

Request A Quote

Customizable Dimensions USB Camera Module With 2.9um*2.9um Pixel Size For Fine Detail

Product Details

Sensor Size:

1/2.9

Color:

Color

Gpu:

Mali-T860

Sensor Model:

MT9J003

Equipment Size:

42mm×40mm×10mm(±1mm)

Focal Length:

3.95mm

Lens Type:

Fixed

Video Capture Resolution:

720P

Special Feature:

Low Light

Feature:

HDR

Chip Type:

OV5648

Compatibility:

Windows, Mac, Linux

Weight:

50g

Object Distance:

1cm-infinite

Power Supply:

USB

Input Voltage:

3-3.6V Or 3.6-16V

Drive Mode:

Free Diver

Video Format:

MP4

Driving Method:

Drive Free

Focus:

Fixed Focus

Format:

MJPG YUY2

Maximum Effective Pixel:

1920(H)X1080(V)

Keywords:

IP Camera Module

Powered:

DC12V/POE

Production Process:

SMT(ROSH)

Module Size:

93.7*55.0(mm)

Operating Voltage:

DC5V

Sensor Type:

CMOS

Output Forma:

MJPG/YUY2

View Angle:

77.7°±3°

Mounting Options:

Clip, Tripod

Uvc Protocol:

USB Video Class（UVC）

Operating Temperature:

-10°C To 60°C

Most Effective Pixels:

3840(H) X 2160(V)

Stable Temperature:

0°C To 50°

Array Size:

4208x3120

Power Consumption:

About 140mA

Acquisition Speed:

1/30 Fps(E21W) 1/120fps(E21W1)

Dimensions:

50mm X 50mm X 20mm

Highlight:

2.9um*2.9um Pixel Size USB Camera Module

Customizable Dimensions USB Camera Module

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Tray+Anti-static bag in carton box

Delivery Time

2-3week

Payment Terms

T/T

Supply Ability

500000 pieces/month

2MP CMOS Camera Module 1920x1200 Resolution 50fps USB2.0 Type-C

Get Best Price

2MP CMOS Image Sensor with 1/2.44 Inch Format 97 Degree Wide Angle Lens Full HD 1080p Video and USB2.0 Interface

Get Best Price

48MP CMOS Camera Module USB2.0 Interface Multi-Format Output High Frame Rate Support for Machine Vision

Get Best Price

5MP CMOS Camera Module 1/2.8 Inch Sensor with 2592 x 1944 Resolution USB3.0 for Security

Get Best Price

+8618075543558

sales@sinoseen.com

Contact Now

Product Description

Customizable Dimensions USB Camera Module With 2.9μm×2.9μm Pixel Size For Fine Detail

The Sinoseen 1/2.8 CMOS image sensor delivers superior performance with resolutions up to 30 frames per second. Ideal for video streaming, conferencing systems, surveillance, educational displays, industrial inspection, and ATMs. Features plug-and-play USB2.0 interface with speeds up to 480M/S and multi-platform compatibility.

Key Features

High Resolution Maximum effective pixels: 3840(H) × 2160(V)

Superior Low Light Performance 2.9μm×2.9μm pixel size for enhanced detail

Multi-Platform Support Compatible with Windows, Mac, Linux, Android

Versatile Applications Suitable for industrial, surveillance, and commercial use

Technical Specifications

Attribute	Value
Sensor Size	1/2.9" CMOS
Sensor Model	MT9J003 / OV5648
Maximum Resolution	3840(H) × 2160(V)
Pixel Size	2.9μm × 2.9μm
Video Output	720P @ 30FPS
Lens Type	Fixed focus (3.95mm focal length)
View Angle	77.7°±3°
Interface	USB 2.0 (UVC compliant)
Power Supply	5V ±5% (USB powered)
Operating Temperature	-10°C to 60°C
Dimensions	50mm × 50mm × 20mm
Weight	50g

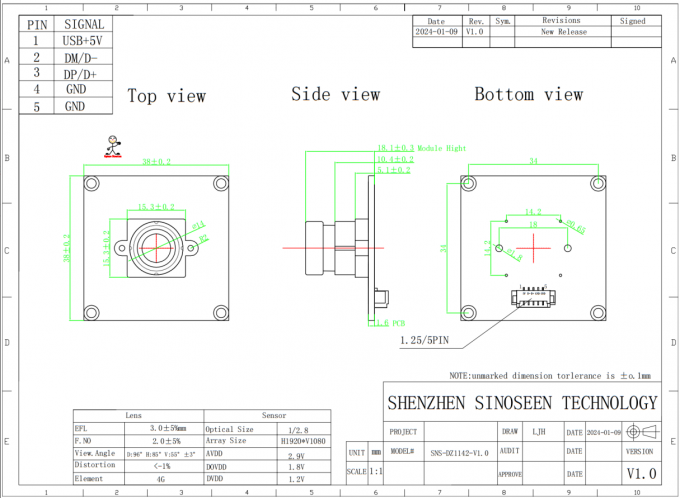

Detailed Specifications

Signal	SNS-DZ1142-V1.0	Remarks
Image Sensor Size	1/2.8" CMOS
Effective Pixels	1920×1080
Pixel Size	2.9μm×2.9μm
Optical Distortion	<-1%
Video Output Format	MJPG/YUV
Frame Rates	1920×1080 @ 30FPS 1280×960 @ 30FPS 1280×720 @ 30FPS	MJPG
Digital Interface	5pin 1.25mm USB2.0	Cable length: 1.5m
Transfer Rate	480MB/S
Lens View	M12×P0.5	LENS
FOV Angle	D:96°±3°

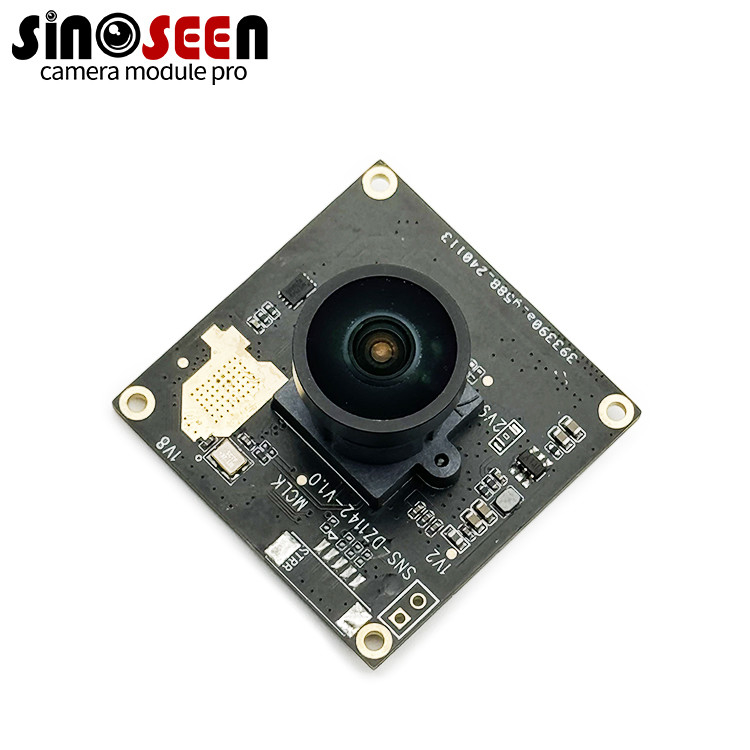

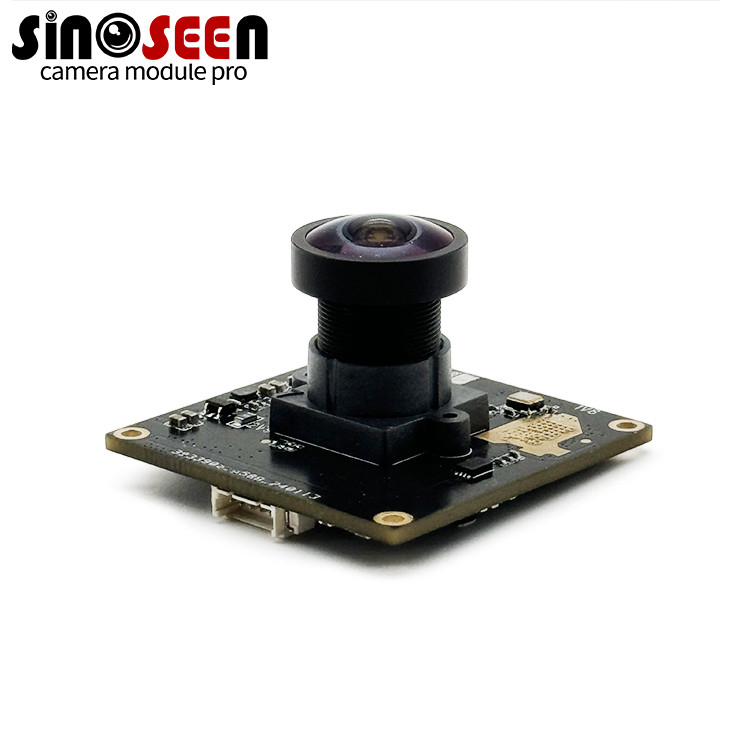

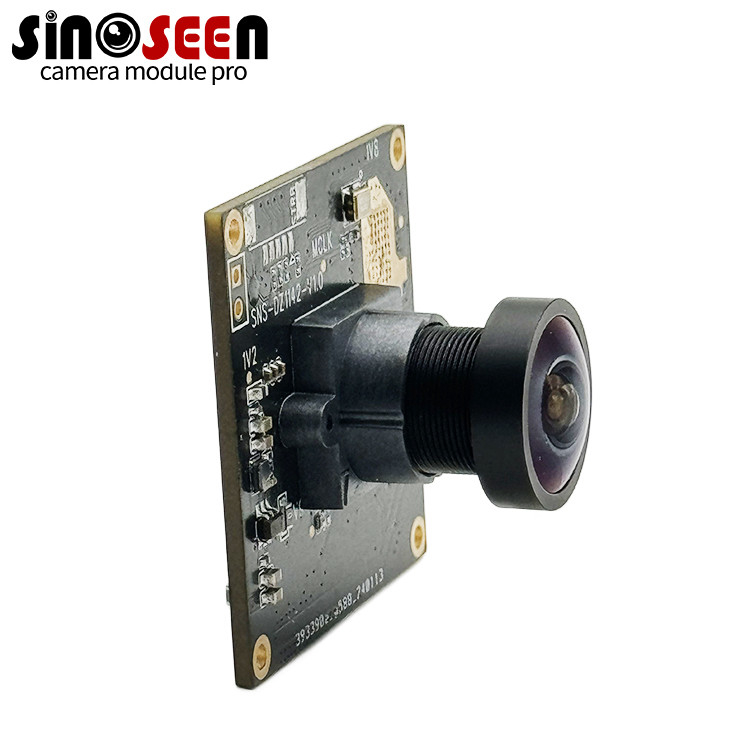

Sinoseen USB Camera Module with 2.9μm pixel size and customizable dimensions

Applications

Video conferencing systems
Surveillance and security systems
Industrial inspection equipment
ATM and banking systems
Educational displays and smart boards
Medical imaging devices
