Name: 8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
Brand: Shenzhen Sinoseen Technology Co., Ltd
SKU: SNS-GM1133-V1.0
Availability: InStock

Home > products > USB Camera Module >

8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios

Visual Recognition USB Camera Module

5MP USB Camera Module

8-Layer Design USB Camera Module

Place of Origin:

China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-GM1133-V1.0

Request A Quote

8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios

Product Details

Sensor Type:

CMOS

Module Size:

Two Layers 38mmX38mm

Audio Input:

Channel Audio MIC Input

Standard Interface:

USB2.0 High Speed

Pixel Size:

1.4µm X1.4µm

Coded Format:

H.265/H.264

Power Consumption:

About 140mA

Object Distance:

6CM-200CM

Driving Method:

Drive Free

F Number:

2.2

Operating Current:

610mA(VGA)

Max Image Circle:

4.8mm

Artwork:

8-Layer Design

Warranty:

10 Years

Compatibility:

Windows, Mac, Linux

Highlight:

Visual Recognition USB Camera Module

5MP USB Camera Module

8-Layer Design USB Camera Module

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

Tray+Anti-static bag in carton box

Delivery Time

2-3week

Payment Terms

T/T

Supply Ability

500000 pieces/month

USB2.0 Camera Module OV9782 720P 120fps for Barcode Scanning

Get Best Price

video

IMX317 USB Camera Module 8MP 4K 30FPS Compact Design

Get Best Price

video

8MP IMX317 USB Camera Module 4K 30FPS

Get Best Price

video

IMX317 USB Camera Module 8MP 4K 30FPS Fixed Focus

Get Best Price

+8618075543558

sales@sinoseen.com

Contact Now

Product Description

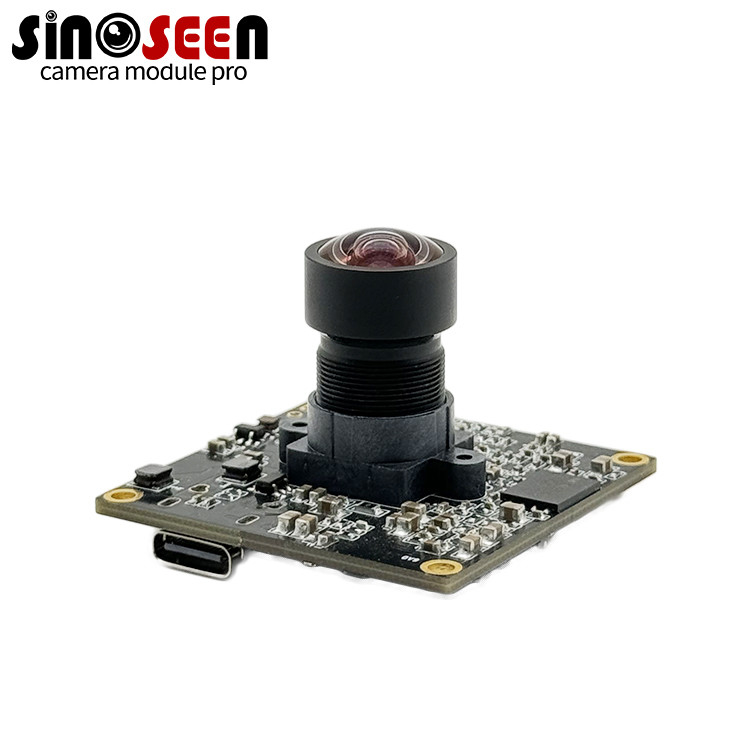

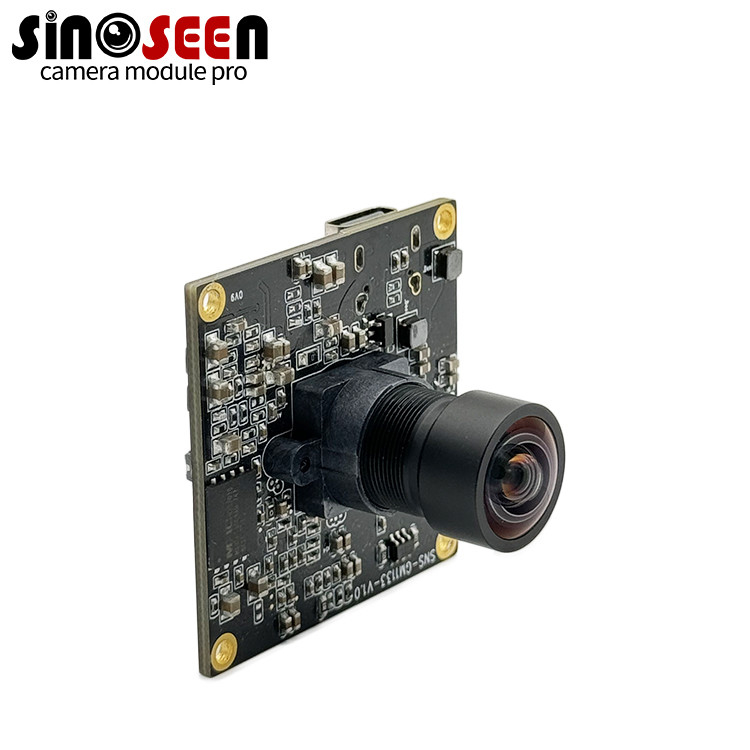

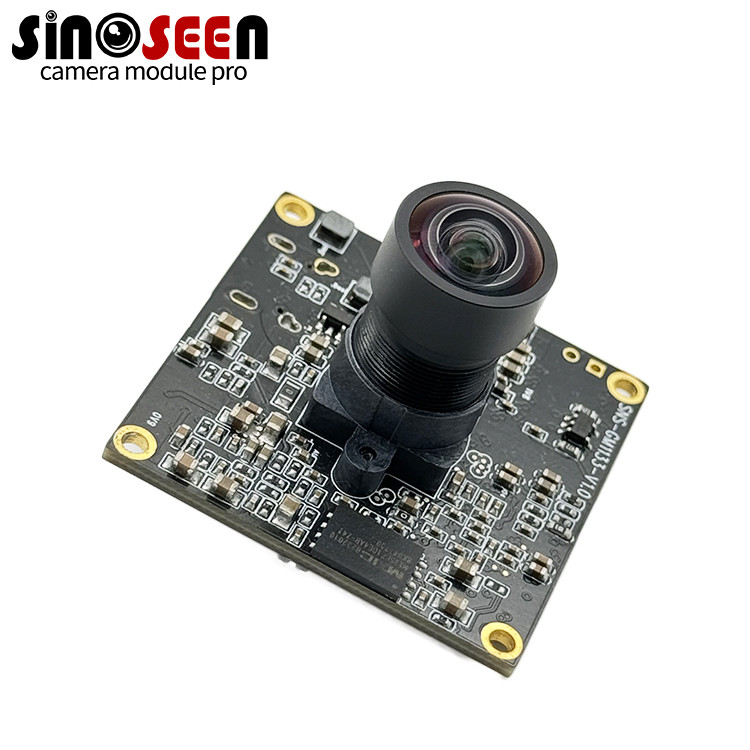

Sinoseen GM1133 1/2.8" vb1940 CMOS 5MP camera module with high-speed USB2.0 interface for seamless connection. This advanced digital image sensor delivers sharp images at a resolution of 2592x1944 and a frame rate of 30FPS, making it particularly suitable for machine vision applications. Support plug and play functions and a variety of operating systems, widely used in video conferencing, monitoring, industrial testing and other fields. It features enhanced low-light performance and customizable image Settings.

Upgrade your imaging solution with Sinoseen multifunctional camera modules that perfectly meet professionals' needs for superior image quality and reliability in a variety of visual recognition scenarios.

Signal		SNS-GM1133-V1.0	REMARKS
Image Sensor Size(图像感光尺寸)		1/2.8inch
Effective Pixels(有效像素)		2592H*1944V
Pixel size(像素点大小)		2.0 um*2.0 um
Optical distortion(畸变)		<0.45%
Image sensor Data output(数据输出类型)		Raw Bayer 10bits
Video output(输出格式)		MPJG/YUV
Maximum Frame Rates(分辨率和帧率)		25921944 30 FPS 19201080 30 FPS 1600*1200 30 FPS	MJPG
SNR max(信噪比)		TBD
Dynamic range(动态范围)		TBD
Min. Illumination(最低照度)		TBD
Digital interface(连接接口)		Type-c USB2.0	线长1.5米
Transfer rates(接口速度)		480MB/S
Power requirements(电源)		5V±5%
Storage temperature储藏温度		-20℃to70℃
operating temperature 工作温度		-10℃to60℃
Power Consumption (功率)	NO LED	/
	IR-LED	/
PCB printig ink		black
OS(支持系统)		Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC )
Lens view (默认镜头)		M12*P0.5	LENS
Lens Construction 镜头结构		3G2P+650IR
F/NO光圈		3.0±5%
EFL 有效焦距		4.18 mm±5%
FOV 角度		82°±3°
对焦方式		定焦
拍摄距离		60cm-∞

8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios 0
