8-Layer Design Customizable Image Settings 5MP USB Camera Module for Visual Recognition Scenarios
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1133-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Sensor Type: | CMOS | Module Size: | Two Layers 38mmX38mm |
|---|---|---|---|
| Audio Input: | Channel Audio MIC Input | Standard Interface: | USB2.0 High Speed |
| Pixel Size: | 1.4µm X1.4µm | Coded Format: | H.265/H.264 |
| Power Consumption: | About 140mA | Object Distance: | 6CM-200CM |
| Driving Method: | Drive Free | F Number: | 2.2 |
| Operating Current: | 610mA(VGA) | Max Image Circle: | 4.8mm |
| Artwork: | 8-Layer Design | Warranty: | 10 Years |
| Compatibility: | Windows, Mac, Linux | ||
| Highlight: | Visual Recognition USB Camera Module,5MP USB Camera Module,8-Layer Design USB Camera Module |
||
Product Description
8-Layer Design Customizable Image Settings 5MP USB Camera Module
High-Performance Visual Recognition Solution

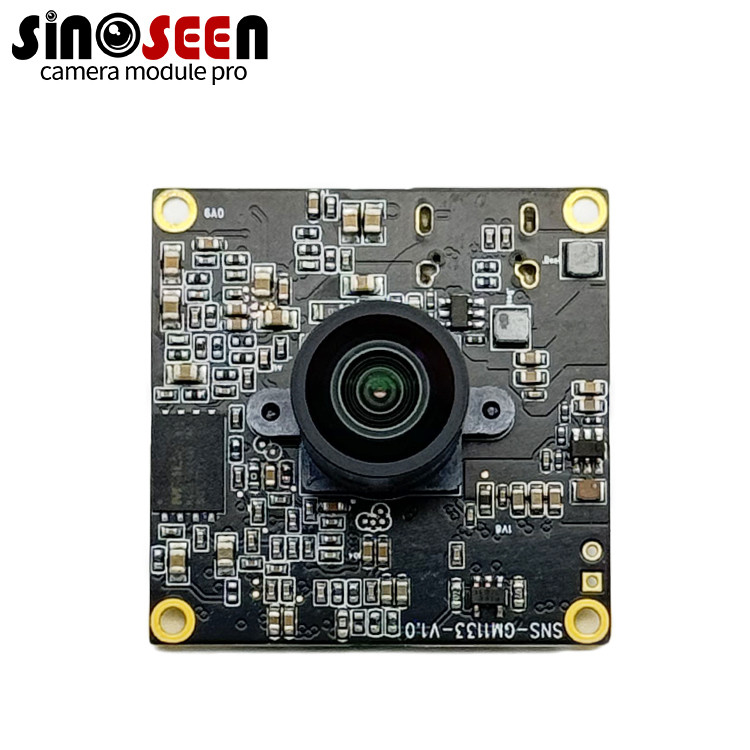

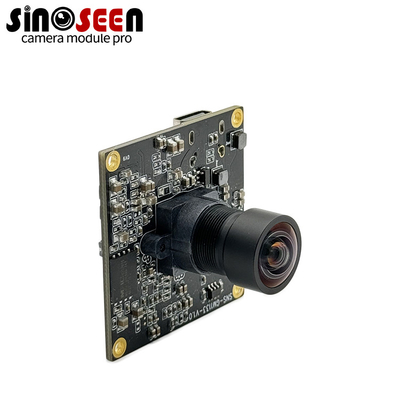

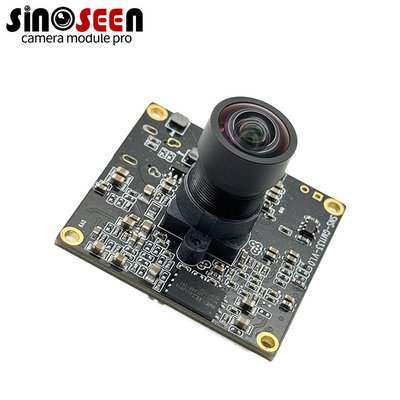

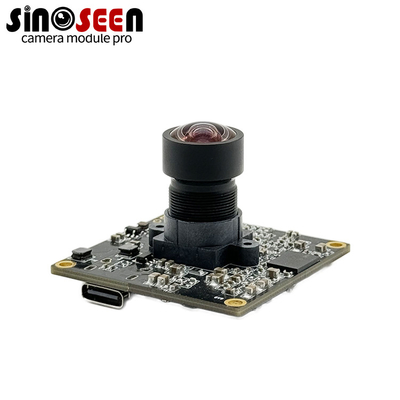

The Sinoseen GM1133 5MP camera module features a 1/2.8" VB1940 CMOS sensor with USB2.0 interface, delivering sharp 2592x1944 resolution images at 30FPS. Ideal for machine vision applications, video conferencing, monitoring, and industrial testing with enhanced low-light performance and customizable image settings.
Key Features
- 5MP high-resolution imaging (2592x1944 @ 30FPS)
- Plug-and-play USB2.0 interface with Type-C connector
- Wide OS compatibility (Windows, Mac, Android, Linux)
- Enhanced low-light performance
- Customizable image settings
- Compact 8-layer PCB design with black printing
- M12 lens mount with 82° field of view
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8inch | |
| Effective Pixels | 2592H*1944V | |
| Pixel Size | 2.0 um*2.0 um | |
| Optical Distortion | <0.45% | |
| Data Output | Raw Bayer 10bits | |
| Video Output | MPJG/YUV | |
| Frame Rates | 2592*1944 @30FPS 1920*1080 @30FPS 1600*1200 @30FPS |
MJPG |
| Digital Interface | Type-C USB2.0 | 1.5m cable |
| Transfer Rate | 480MB/S | |
| Power Requirements | 5V±5% | |
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -20℃ to 70℃ | |
| Lens Specification | M12*P0.5 | 3G2P+650IR |
| F/NO Aperture | 3.0±5% | |
| Effective Focal Length | 4.18 mm±5% | |
| Field of View | 82°±3° | |
| Focus Type | Fixed focus | |
| Shooting Distance | 60cm-∞ |
Upgrade your imaging solution with Sinoseen's multifunctional camera modules, designed to meet professional requirements for superior image quality and reliability in various visual recognition scenarios.
