120 FPS USB Camera Module with Advanced Digital Sensors for Rich Colors and Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1159-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD、negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Stable Temperature: | 0°C To 50°C | Dsp: | USB2.0 DSP |
|---|---|---|---|
| Data Storage: | Video, Pictures | Precision: | ≥5mil |
| Standard Configuration: | USB3.0 High Speed | Chip Type: | OV5648 |
| Image Resolution: | 640*480 | Image Sensor: | CMOS |
| Keywords: | IP Camera Module | Distortion: | ＜22% |
| Interface: | USB | Gpu: | Mali-T860 |
| Max Pixel Rate: | 28Mp/s | Snr: | ≥50db |
| Sensor Type: | CMOS | ||
| Highlight: | 120 FPS USB Camera Module,Rich Colors USB Camera Module,Advanced Digital USB Camera Module |
||
Product Description

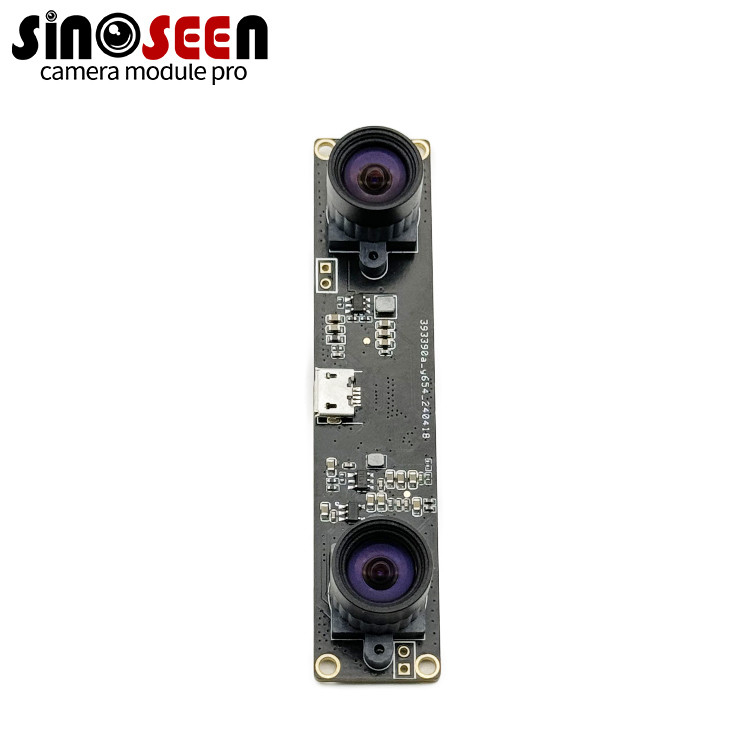

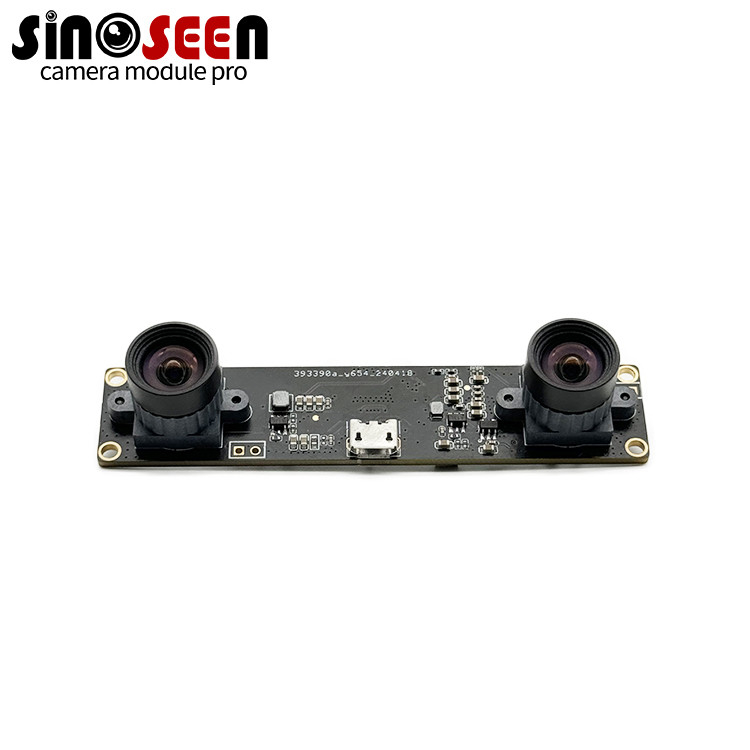

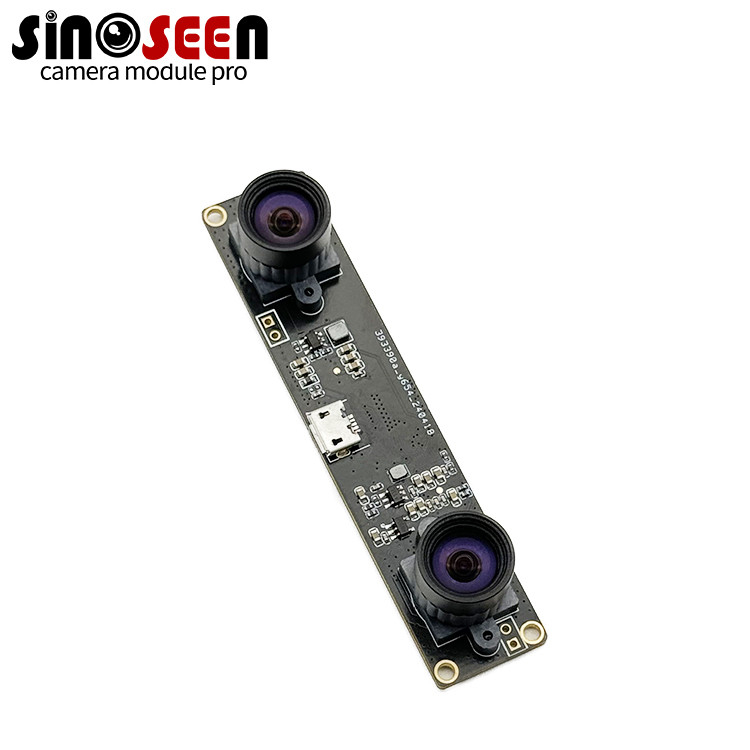

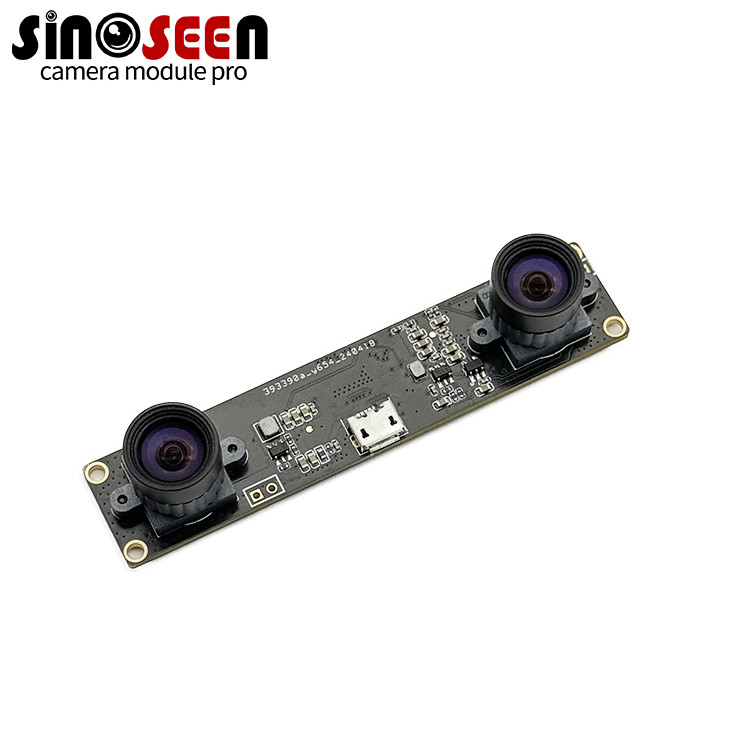

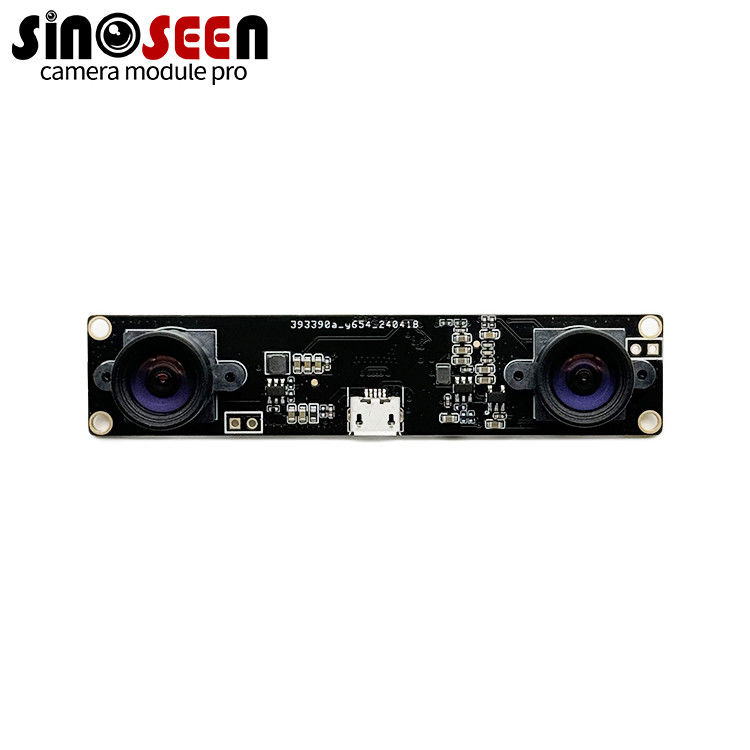

120 FPS USB Camera Module with Advanced Digital Sensors
High-Performance Imaging Solution
The Sinoseen 1/4" CMOS OV9281 image sensor module features advanced digital sensors supporting resolutions up to 120 FPS. Designed for superior performance in both high-resolution and low-light environments, this module delivers rich colors and exceptional image quality.
Key Features
- High-speed 120 FPS performance for smooth video capture
- Excellent low-light performance for challenging environments
- USB 2.0 plug-and-play connectivity with 1.5m cable
- Broad compatibility with Windows, Mac, Android, and Linux systems
- Compact M12 lens mount with fixed focus (60cm-∞)
- Robust construction for industrial applications
Technical Specifications
| Specification | Value | Notes |
|---|---|---|
| Image Sensor Size | 1/4 inch | |
| Effective Pixels | 1280H * 800V | |
| Pixel Size | 3 μm * 3 μm | |
| Optical Distortion | < -1.2% | |
| Data Output | Raw Bayer 10bits | |
| Video Output | MPJG/YUV | |
| Maximum Frame Rates | Multiple resolutions up to 210FPS | MPJG |
| Digital Interface | USB 2.0 | 1.5m cable |
| Transfer Rates | 480MB/S | |
| Power Requirements | 5V ±5% | |
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -20℃ to 70℃ | |
| Lens View | M12 * P0.5 | Default lens |
| Lens Construction | 1G5P+650IR | |
| F/NO Aperture | 2.4 ±5% | |
| Effective Focal Length | 2.6 mm ±5% | |
| Field of View | D: 83° ±3° |
Supported Operating Systems
Windows XP/Vista/7/8.1/10, Mac OS, Android, Linux 2.6.2 (including UVC support)
Ideal Applications
- Video conferencing systems
- Surveillance and security
- Industrial inspection
- Machine vision applications
- Automated quality control
