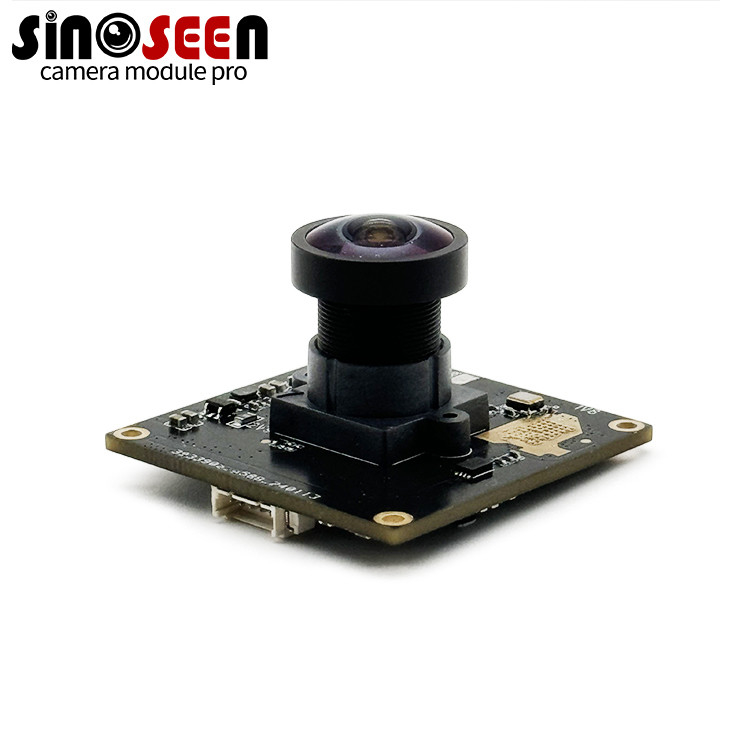

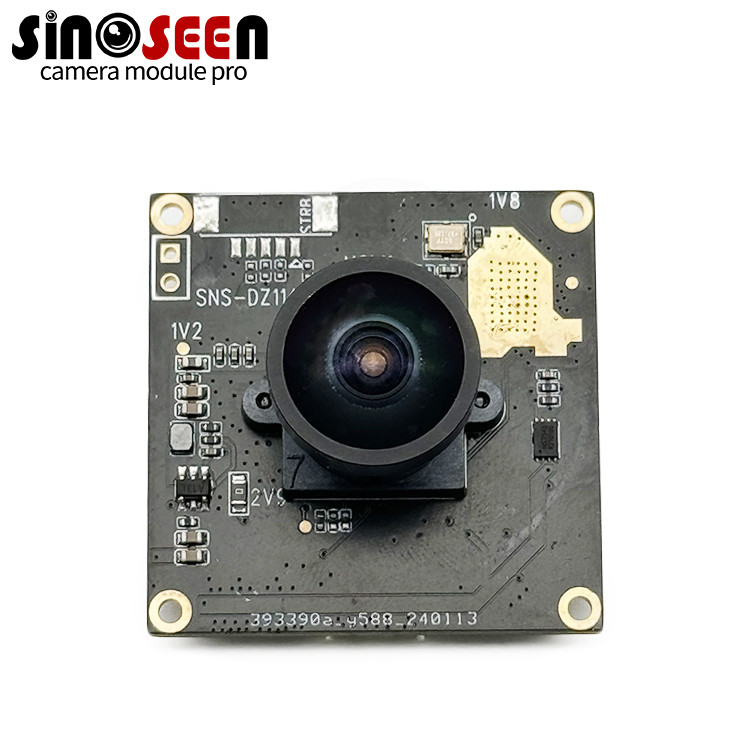

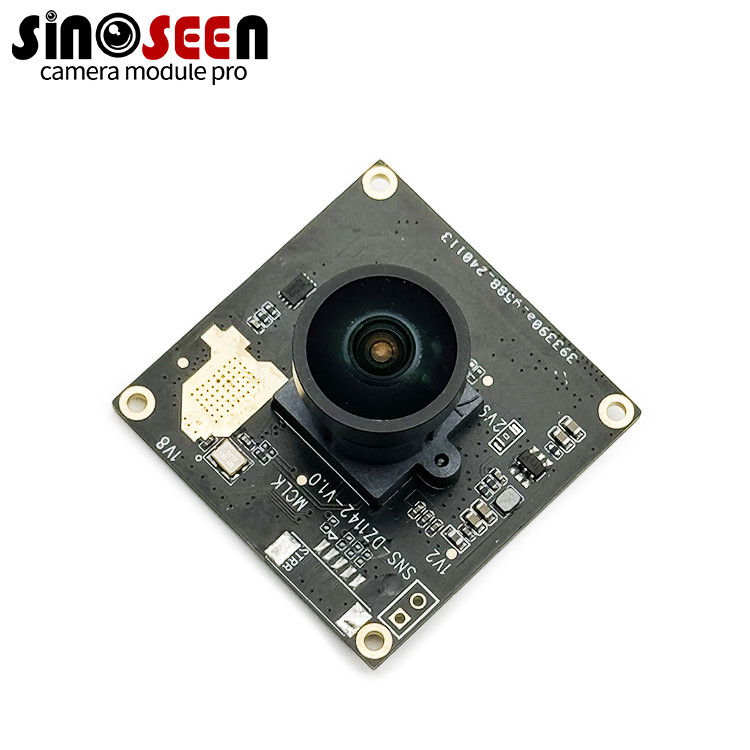

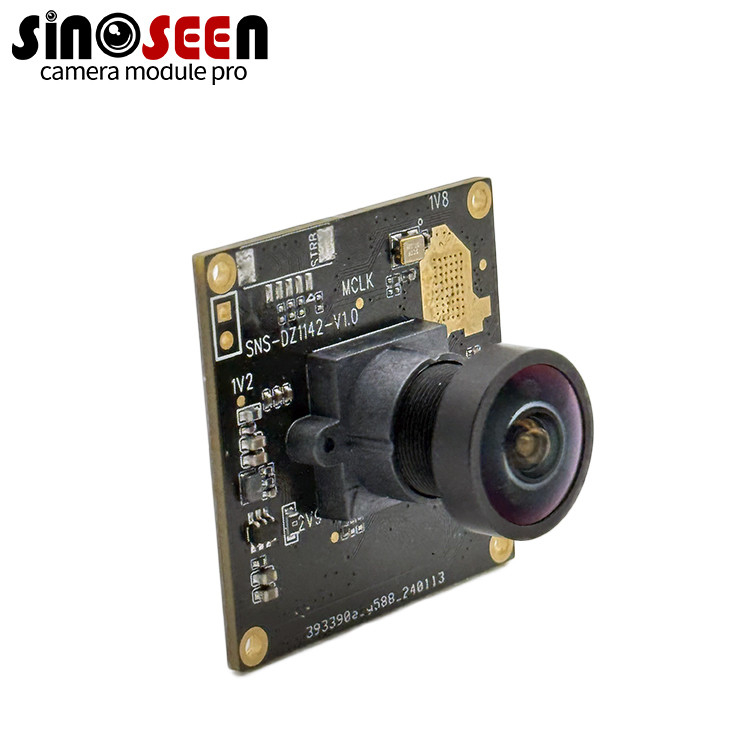

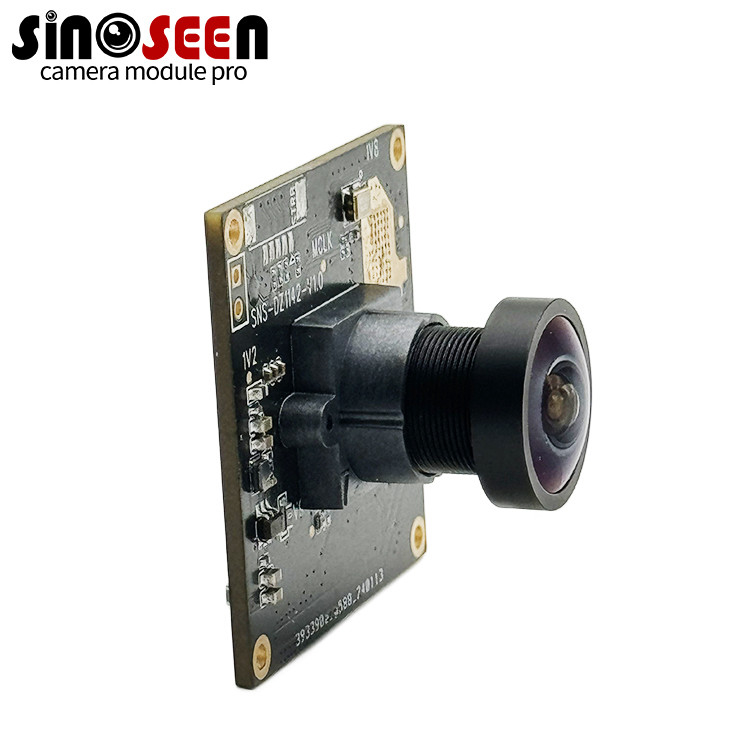

Streamline Your Hardware Integration and Driver Debugging with Sinoseen USB Camera Module Plug-and-Play USB2.0 Technology
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1142-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Sensor Size: | 1/2.9 | Color: | Color |
|---|---|---|---|
| Gpu: | Mali-T860 | Sensor Model: | MT9J003 |
| Equipment Size: | 42mm×40mm×10mm(±1mm) | Focal Length: | 3.95mm |
| Lens Type: | Fixed | Video Capture Resolution: | 720P |
| Special Feature: | Low Light | Feature: | HDR |
| Chip Type: | OV5648 | Compatibility: | Windows, Mac, Linux |
| Weight: | 50g | Object Distance: | 1cm-infinite |
| Power Supply: | USB | Input Voltage: | 3-3.6V Or 3.6-16V |
| Drive Mode: | Free Diver | Video Format: | MP4 |
| Driving Method: | Drive Free | Focus: | Fixed Focus |
| Format: | MJPG YUY2 | Maximum Effective Pixel: | 1920(H)X1080(V) |
| Keywords: | IP Camera Module | Powered: | DC12V/POE |
| Production Process: | SMT(ROSH) | Module Size: | 93.7*55.0(mm) |
| Operating Voltage: | DC5V | Sensor Type: | CMOS |
| Output Forma: | MJPG/YUY2 | View Angle: | 77.7°±3° |
| Mounting Options: | Clip, Tripod | Uvc Protocol: | USB Video Class（UVC） |
| Operating Temperature: | -10°C To 60°C | Most Effective Pixels: | 3840(H) X 2160(V) |
| Stable Temperature: | 0°C To 50° | Array Size: | 4208x3120 |
| Power Consumption: | About 140mA | Acquisition Speed: | 1/30 Fps(E21W) 1/120fps(E21W1) |
| Dimensions: | 50mm X 50mm X 20mm | ||
Product Description
Streamline Your Hardware Integration and Driver Debugging with Sinoseen USB Camera Module Plug-and-Play USB2.0 Technology
Product Attributes
| Attribute | Value |
|---|---|
| Sensor Size | 1/2.9 |
| Color | Color |
| Gpu | Mali-T860 |
| Sensor Model | MT9J003 |
| Equipment Size | 42mm×40mm×10mm(±1mm) |
| Focal Length | 3.95mm |
| Lens Type | Fixed |
| Video Capture Resolution | 720P |
| Special Feature | Low Light |
| Feature | HDR |
| Chip Type | OV5648 |
| Compatibility | Windows, Mac, Linux |
| Weight | 50g |
| Object Distance | 1cm-infinite |
| Power Supply | USB |
| Input Voltage | 3-3.6V or 3.6-16V |
| Drive Mode | Free Diver |
| Video Format | MP4 |
| Driving Method | Drive Free |
| Focus | Fixed Focus |
| Format | MJPG YUY2 |
| Maximum Effective Pixel | 1920(H)X1080(V) |
| Keywords | IP Camera Module |
| Powered | DC12V/POE |
| Production Process | SMT(ROSH) |
| Module Size | 93.7*55.0(mm) |
| Operating Voltage | DC5V |
| Sensor Type | CMOS |
| Output Forma | MJPG/YUY2 |
| View Angle | 77.7°±3° |
| Mounting Options | Clip, Tripod |
| Uvc Protocol | USB Video Class（UVC） |
| Operating Temperature | -10°C to 60°C |
| Most Effective Pixels | 3840(H) x 2160(V) |
| Stable Temperature | 0°C to 50° |
| Array Size | 4208x3120 |
| Power Consumption | About 140mA |
| Acquisition Speed | 1/30 fps(E21W) 1/120fps(E21W1) |
| Dimensions | 50mm x 50mm x 20mm |
Product Description
Still struggling with complex hardware integration and driver debugging? Choose the Sinoseen 1/2.8" CMOS Image Sensor and immediately experience the plug-and-play advantage of USB2.0. This sensor provides HD video streaming up to 1920x1080@30FPS, demonstrating excellent image quality and color reproduction capabilities in applications like video conferencing, online education, and security surveillance.
It's compatible with mainstream operating systems from Windows XP to 10, as well as Linux, Mac, and Android, greatly simplifying your development and deployment processes. With its superb low-light performance and robust support for JPG, BMP images, and AVI video, this sensor is your ideal choice for enhancing your product's ease of use and market competitiveness.
Specifications
| Signal | SNS-DZ1142-V1.0 | REMARKS |
|---|---|---|
| Image Sensor Size | 1/2.8"CMOS | |
| Effective Pixels | 1920*1080 | |
| Pixel size | 2.9um*2.9um | |
| Optical distortion | <-1% | |
| Image sensor Data output | Raw Data 10bits | |
| Video output | MPJG/YUV | |
| Maximum Frame Rates | 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 1024*768 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS | MJPG |
| SNR max | TBD | |
| Dynamic range | TBD | |
| Min. Illumination | TBD | |
| Digital interface | 5pin 1.25mm USB2.0 | 线长1.5米 |
| Transfer rates | 480MB/S | |
| Power requirements | 5V±5% | |
| Storage temperature | -20℃to70℃ | |
| Operating temperature | -30℃to70℃ | |
| Power Consumption | NO LED | / |
| IR-LED | / | |
| PCB printing ink | black | |
| OS | Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC) | |
| Lens view | M12*P0.5 | LENS |
| Lens Construction | 4G | |
| F/NO光圈 | 2.0±5% | |
| EFL 有效焦距 | 3.0 mm±5% | |
| FOV 角度 | D:96°±3° | |
| 对焦方式 | 手动 | |
| 拍摄距离 | 60cm-∞ |
