Sinoseen IMX377 cmos Camera Module Ultimate HD Image and Stable Performance for Sports and Security
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1104-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | IMX377 1/2.3 Inch |
|---|---|---|---|
| Resolution: | 12MP 4000*3000 | Dimensions: | Customizable |
| EFL: | 4.3 | Lens FOV: | 85° |
| Interface: | MIPI | ||
Product Description
Sinoseen IMX377 CMOS Camera Module - Ultimate HD Image and Stable Performance for Sports and Security
Product Overview

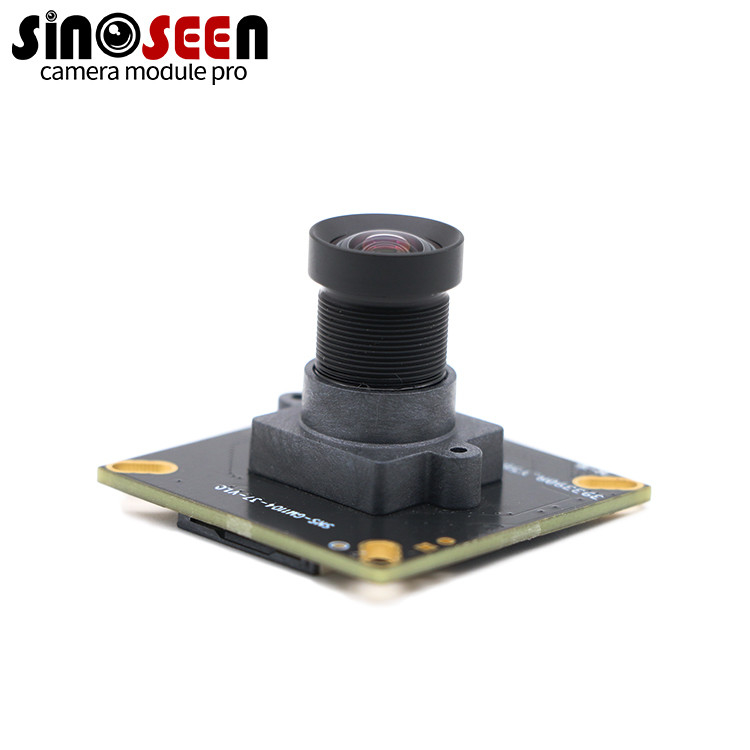

The Sinoseen SNS-GM1104-V1.0 Camera Module delivers ultimate HD image quality and stable performance for sports cameras and smart security systems. Featuring Sony's 12MP IMX377 CMOS image sensor with 4152 x 3062 effective pixels, this compact module captures richly detailed, sharp, and clear high-quality images.
Key Features
- 12MP resolution (4000*3000) for exceptional image clarity
- 1/2.3-inch optical format for compact device integration
- MIPI high-speed data interface for low-power, high-efficiency transmission
- Wide operating temperature range (0°C to 60°C) for demanding environments
- Compatible with multiple operating systems including Windows, Linux, MacOS, and Android
Technical Specifications
| Module | SNS-GM1104-V1.0 |
|---|---|
| Sensor | IMX377 CMOS |
| Image sensor size | 1/2.3 inch |
| Pixel | 12MP |
| Most effective pixels | 4000*3000 |
| Pixel Size | 1.55um*1.55um |
| Image sensor Data output | RAW Data 10bits |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), MacOS X 10.4.8+, Android 4.0+ |
Product Attributes
| Type | MIPI Camera Module |
|---|---|
| Sensor | IMX377 1/2.3 inch |
| Resolution | 12MP 4000*3000 |
| Dimensions | Customizable |
| EFL | 4.3 |
| Lens FOV | 85° |
| Interface | MIPI |
Product Images
