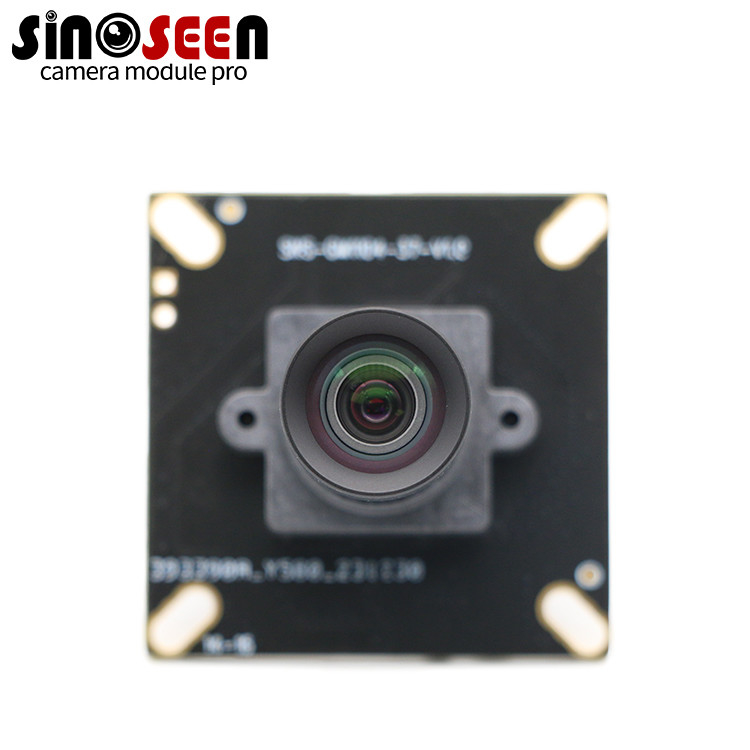

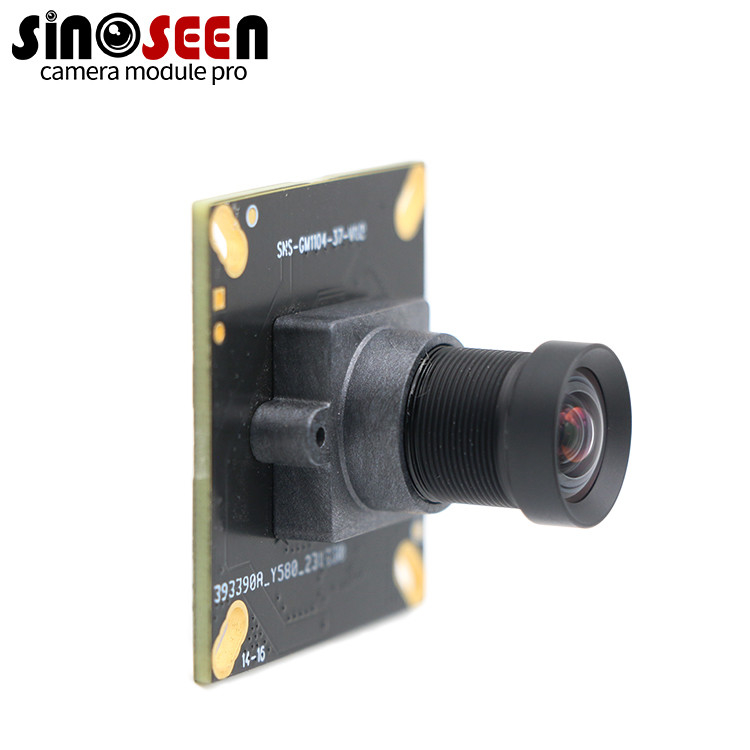

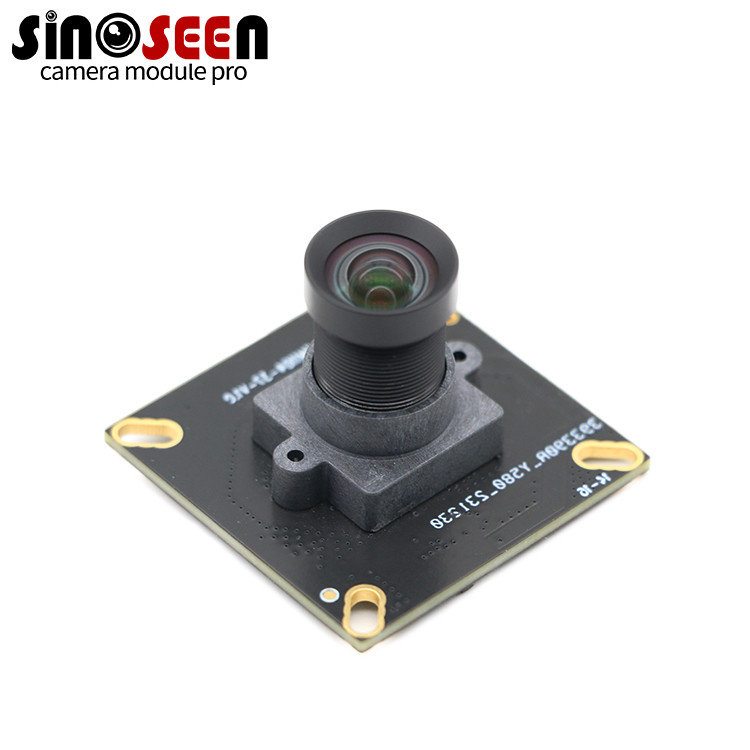

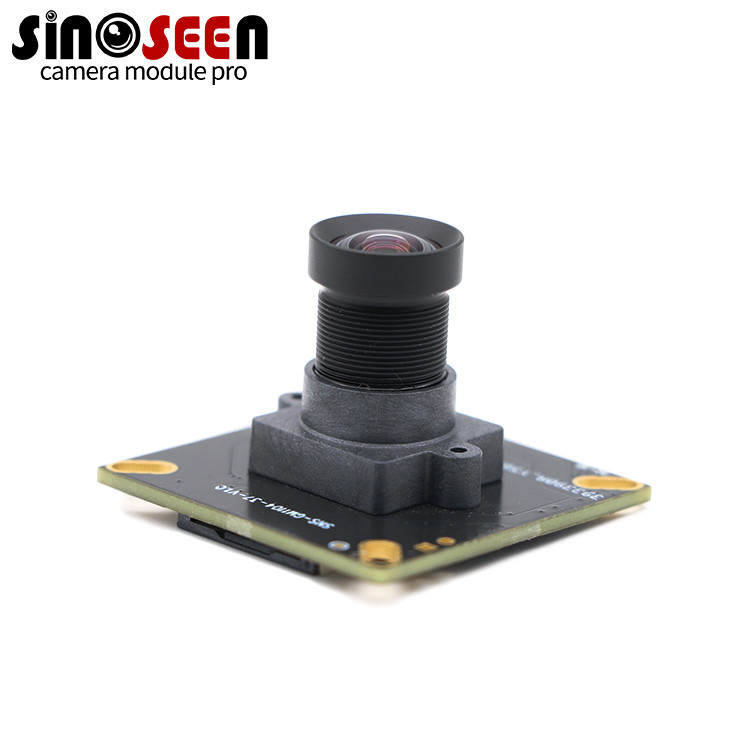

MIPI Data Interface for Fast Data Transmission Sinoseen 12MP IMX377 CMOS USB Camera Module for Sports Camera and Smart Security

MIPI Data Interface for Fast Data Transmission Sinoseen 12MP IMX377 CMOS USB Camera Module for Sports Camera and Smart Security

Place of Origin:

Shenzhen,China

Brand Name:

Sinoseen

Certification:

RoHS

Model Number:

SNS-GM1104-V1.0

Contact Us
Request A Quote
Product Details
Type:
MIPI Camera Module
Sensor:
IMX377 1/2.3 Inch
Resolution:
12MP 4000*3000
Dimensions:
Customizable
EFL:
4.3
Lens FOV:
85°
Interface:
MIPI
Payment & Shipping Terms
Minimum Order Quantity
3
Price
negotiable
Packaging Details
Tray+Anti-static bag in carton box
Delivery Time
2-3weeks
Payment Terms
T/T
Supply Ability
500000 pieces/month
Product Description
MIPI Data Interface for Fast Data Transmission Sinoseen 12MP IMX377 CMOS USB Camera Module for Sports Camera and Smart Security
Product Attributes
Attribute Value
Type MIPI Camera Module
Sensor IMX377 1/2.3 inch
Resolution 12MP 4000*3000
Dimensions Customizable
EFL 4.3
Lens FOV 85°
Interface MIPI
Product Description

Still struggling with data transmission efficiency and integration in smart vision systems? The Sinoseen SNS-GM1104-V1.0 Camera Module, with its highly efficient MIPI data interface, brings a new breakthrough to your sports camera and smart security applications. It features Sony's 12MP IMX377 CMOS image sensor, offering 4152 x 3062 ultra-high resolution to ensure every detail is clearly visible, effectively solving the pain points of slow data transmission and insufficient image detail in traditional systems. The high bandwidth and low power consumption characteristics of the MIPI interface make it an ideal choice for compact, battery-powered designs.

This module is not only compact for easy integration into small portable devices, but its durability and wide operating temperature range also enable it to perform reliably in various demanding environments. Whether your application requires fast response in sports scenarios or demands high image quality and stability for security surveillance, the SNS-GM1104-V1.0 delivers outstanding performance. Choose Sinoseen, leverage the advantages of MIPI, and build an efficient, reliable, and smart vision system for your products to enhance user experience and seize market opportunities!

Specification
Module SNS-GM1104-V1.0
Sensor IMX377 CMOS
Image sensor size 1/2.3 inch
Pixel 12MP
Most effective pixels 4000*3000
Pixel Size 1.55um*1.55um
Image sensor Data output RAW Data 10bits
Max S/N ratio TBD
Dynamic TBD
Storage temperature -20°C to 70°C
Operating temperature 0°C to 60°C
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
