Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-DZ1147-V1.0
Attribute | Value |
---|---|
Type | USB Camera Module |
Sensor | PS5268 1/2.7 inch |
Resolution | 2MP 1920*1080 |
Dimensions | Customizable |
Frame Rate | 25FPS |
Lens FOV | 57° |
Interface | USB |

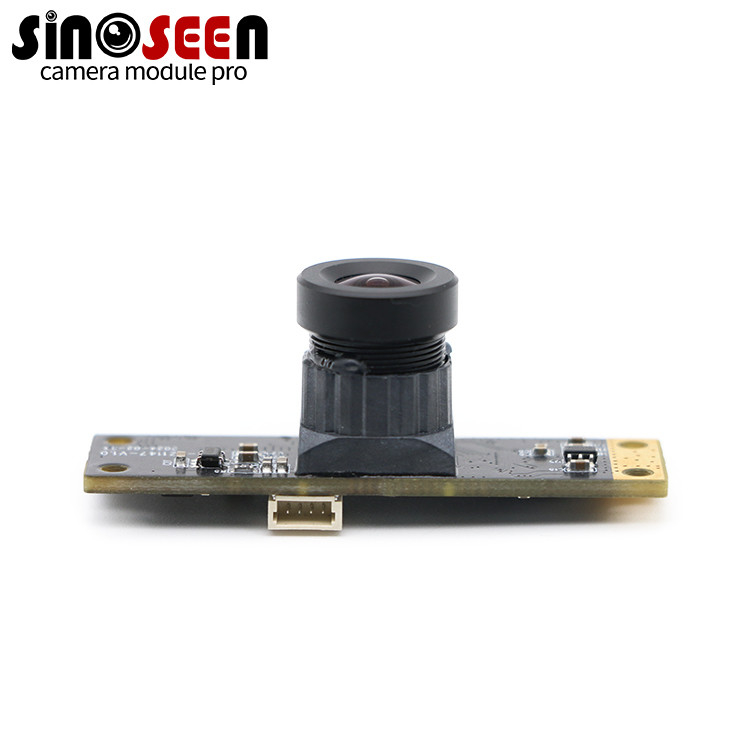

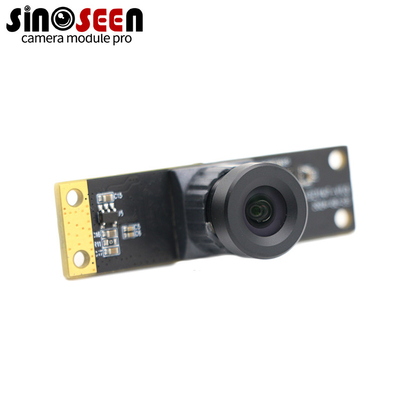

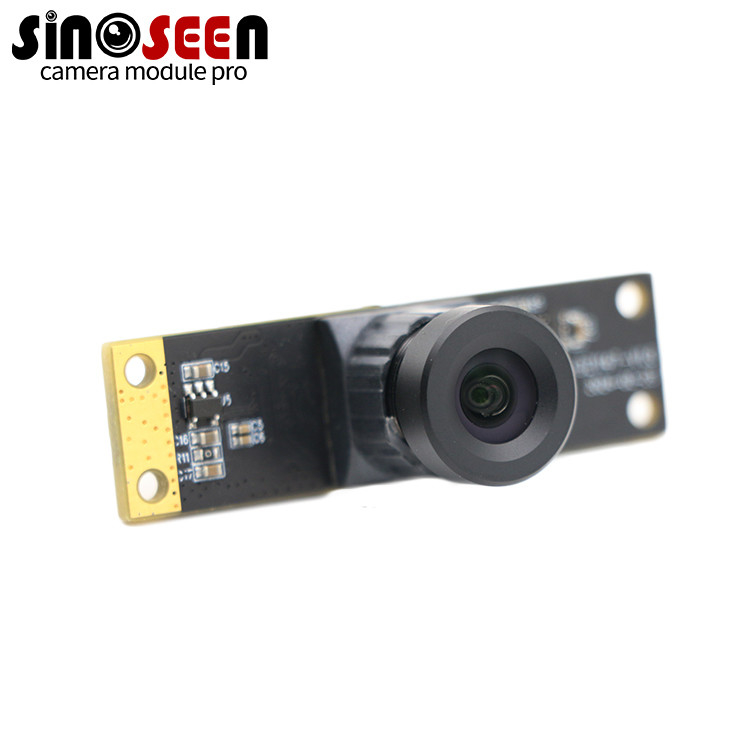

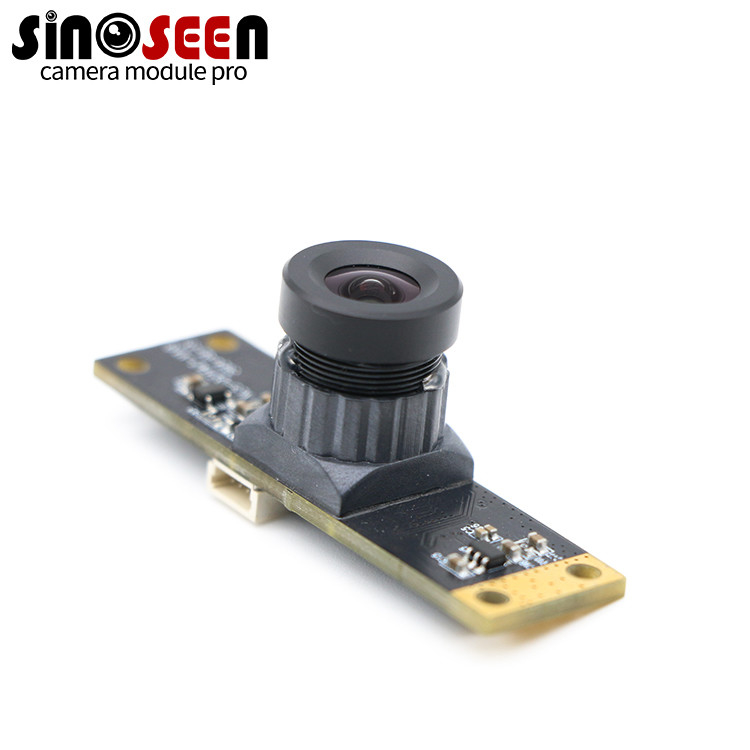

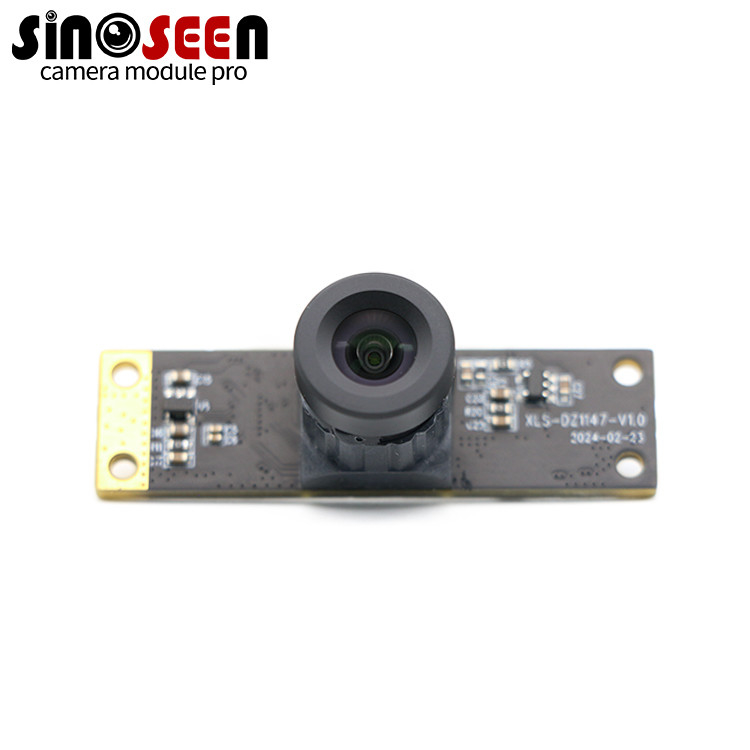

Still searching for a camera module that balances HD image quality, stable performance, and cost-effectiveness for your driving recorder? The Sinoseen PS5268 2MP Camera Module, featuring the PS5268 2MP CMOS image sensor, is your ideal choice.
It offers 1920x1080 Full HD (1080p) resolution and supports smooth video recording at 25 frames per second, ensuring every detail on the road is clearly captured, addressing the common pain points of traditional recorders like blurry or choppy footage.
This module adopts a fixed-focus design, significantly simplifying the camera structure, effectively reducing costs, and enhancing stability. It delivers clear imaging without complex adjustments. Its USB interface makes integration with various devices (such as driving recorder hosts, in-car computers, etc.) exceptionally easy, truly offering plug-and-play functionality.
Beyond driving recorders, it's also well-suited for security and surveillance systems, webcams, and various embedded imaging applications. Choose the Sinoseen SNS-DZ1147-V1.0 to bring a reliable, high-definition, and easy-to-integrate visual solution to your products, enhancing user experience!
Module | SNS-DZ1147-V1.0 |
---|---|
Sensor | PS5268 CMOS |
Image sensor size | 1/2.7 inch |
Pixel | 2MP |
Most effective pixels | 1920*1080 |
Pixel Size | 3.0um*3.0um |
Frame rate | 25fps |
Optical distortion | <-0.5% |
Image sensor Data output | RAW Data 10bits |
Focus type | Fixed focus |
Output interface | USB2.0 |
Video output | MJPG/YUV |
Output formats | RAW Bayer 10bits |
Max S/N ratio | TBD |
Dynamic | TBD |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
