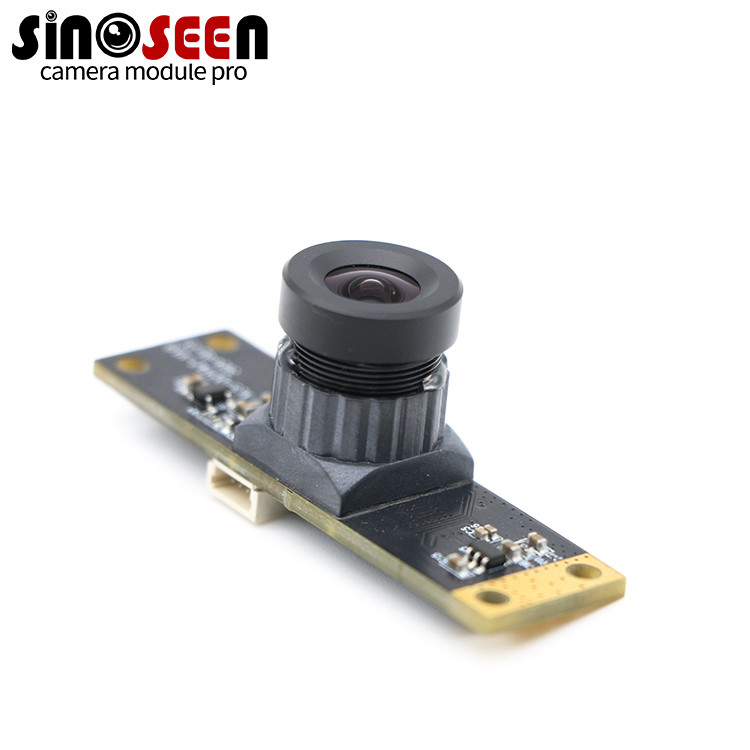

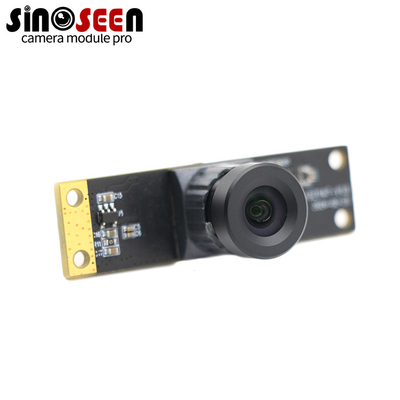

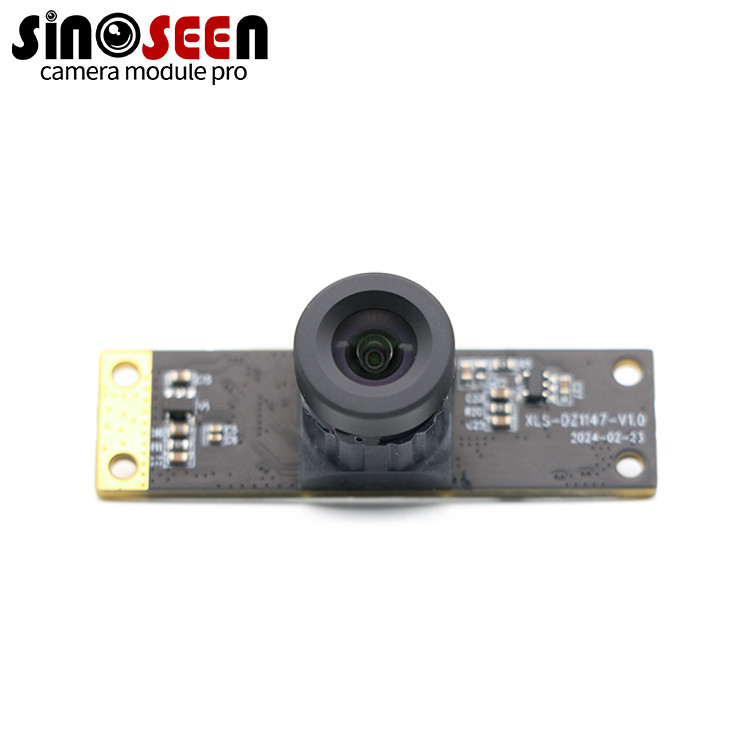

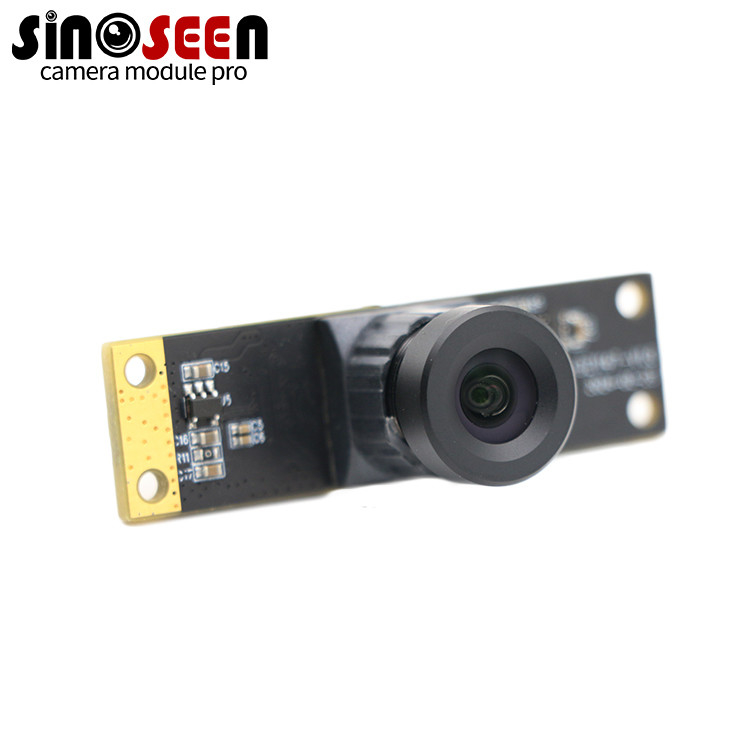

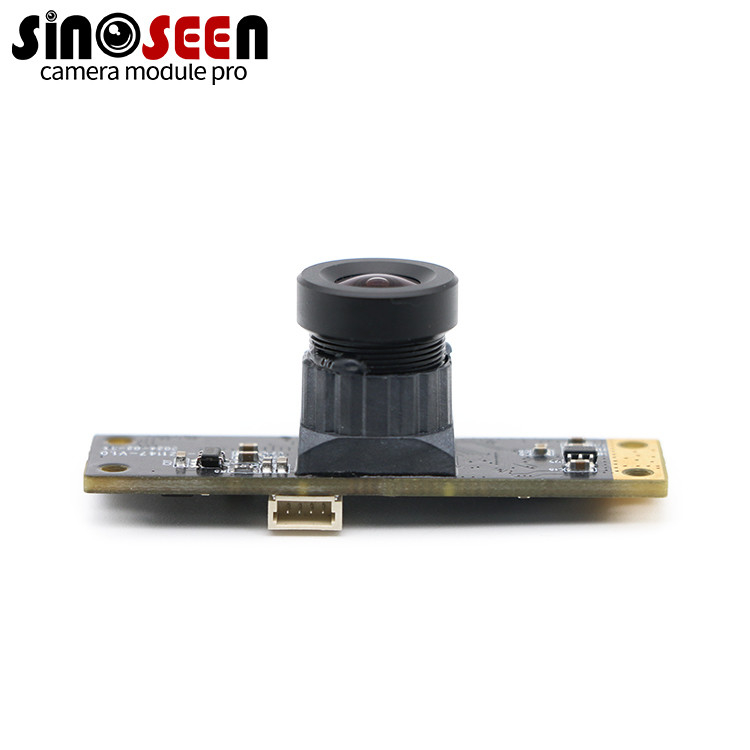

Revolutionize Your Product Design with Sinoseen SNS-DZ1147-V1.0 USB Camera Module and PS5268 CMOS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1147-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | PS5268 1/2.7 Inch |
|---|---|---|---|
| Resolution: | 2MP 1920*1080 | Dimensions: | Customizable |
| Frame Rate: | 25FPS | Lens FOV: | 57° |
| Interface: | USB | ||
Product Description
Simplify your product design without compromising Full HD recording performance with the Sinoseen SNS-DZ1147-V1.0 Camera Module. Featuring the PS5268 2MP CMOS image sensor, this module captures 1920x1080 (1080p) HD video at a smooth 25 frames per second.
The fixed-focus design eliminates complex autofocus mechanisms, significantly reducing hardware costs and design complexity. This solution addresses the challenges of high cost and difficult integration associated with traditional camera modules, making it ideal for:
- Driving recorders
- Internet of Things (IoT) devices
- Embedded systems
With a standard USB interface, the module offers rapid deployment and broad compatibility across various devices. It delivers the perfect balance of image quality, frame rate, and ease of use for budget-sensitive projects requiring reliable high-definition video input.
| Module | SNS-DZ1147-V1.0 |
|---|---|
| Sensor | PS5268 CMOS |
| Image sensor size | 1/2.7 inch |
| Resolution | 2MP (1920*1080) |
| Pixel Size | 3.0um*3.0um |
| Frame rate | 25fps |
| Optical distortion | <-0.5% |
| Focus type | Fixed focus |
| Interface | USB2.0 |
| Video output | MJPG/YUV |
| Operating temperature | 0°C to 60°C |
| Supported OS | Windows XP through 10, Linux (kernel 2.6.26+), Mac OS X 10.4.8+, Android 4.0+ |
| Type | USB Camera Module |
|---|---|
| Sensor | PS5268 1/2.7 inch |
| Resolution | 2MP 1920*1080 |
| Dimensions | Customizable |
| Frame Rate | 25FPS |
| Lens FOV | 57° |
| Interface | USB |
