Experience the Best Compatibility with Sinoseen USB Camera Module and PS5268 2MP CMOS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1147-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | PS5268 1/2.7 Inch |
|---|---|---|---|
| Resolution: | 2MP 1920*1080 | Dimensions: | Customizable |
| Frame Rate: | 25FPS | Lens FOV: | 57° |
| Interface: | USB | ||
Product Description

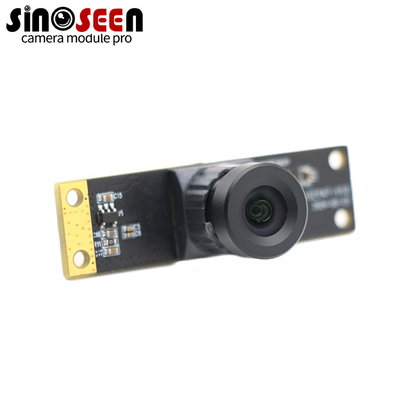

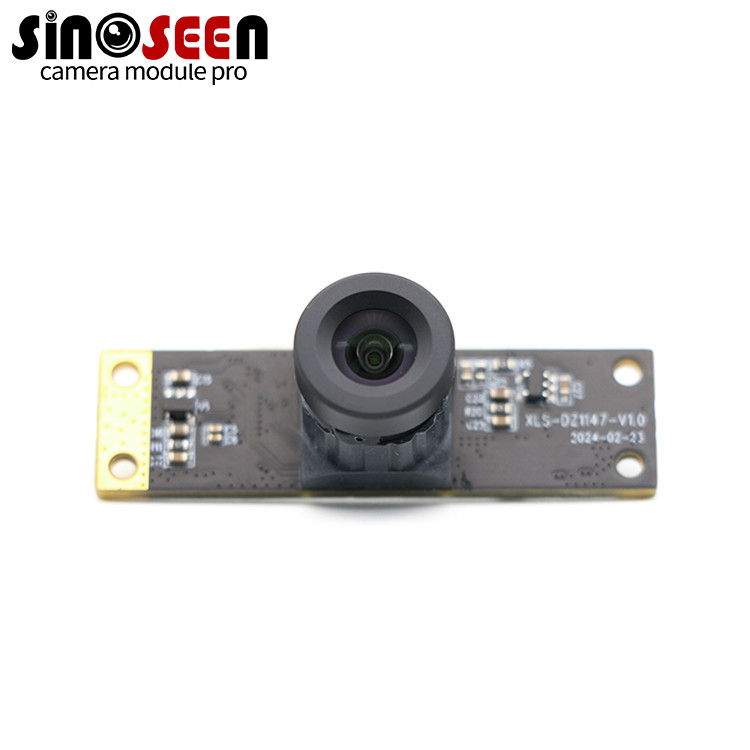

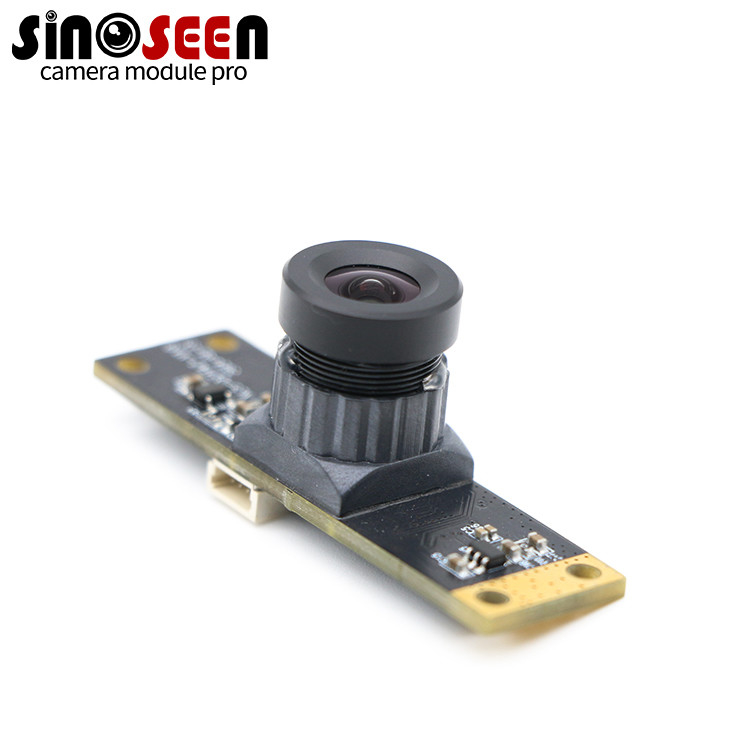

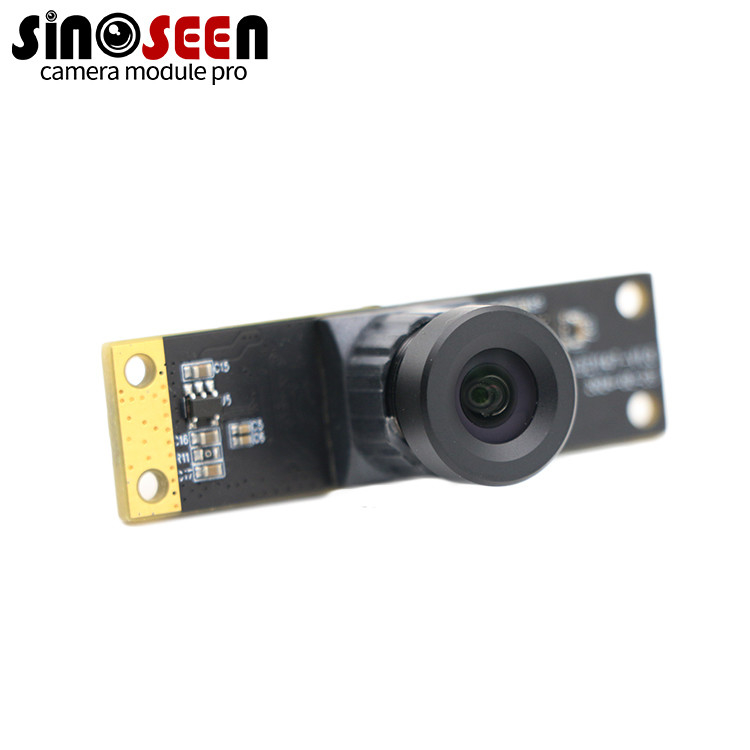

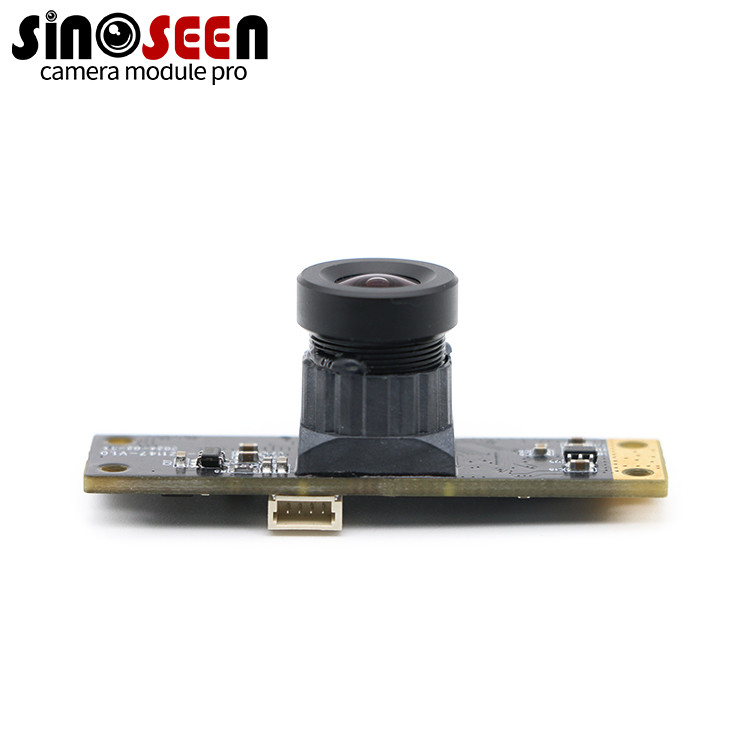

Sinoseen USB Camera Module with PS5268 2MP CMOS Sensor
Key Features
- High compatibility USB camera module with plug-and-play functionality
- PS5268 2MP CMOS sensor delivers 1920×1080 Full HD resolution
- 25FPS frame rate for smooth video output
- Broad OS compatibility: Windows, Linux, macOS, and Android
- Fixed-focus design for stability and reduced maintenance
- Ideal for driving recorders, webcams, and security surveillance
Technical Specifications
| Module | SNS-DZ1147-V1.0 |
|---|---|
| Sensor | PS5268 CMOS |
| Image sensor size | 1/2.7 inch |
| Resolution | 2MP (1920×1080) |
| Pixel Size | 3.0μm×3.0μm |
| Frame rate | 25fps |
| Optical distortion | <-0.5% |
| Output interface | USB2.0 |
| Video output | MJPG/YUV |
| Operating temperature | 0°C to 60°C |
| Supported OS | Windows XP through 10, Linux (UVC), macOS 10.4.8+, Android 4.0+ |
Product Overview
The Sinoseen SNS-DZ1147-V1.0 Camera Module solves compatibility concerns with its broad USB support and plug-and-play functionality. Featuring the PS5268 2MP CMOS sensor, it delivers 1920×1080 Full HD video at 25 frames per second for clear, smooth footage in applications like driving recorders, webcams, and security systems.
The fixed-focus design enhances stability and reliability while reducing costs, making this module ideal for both cost-effective consumer electronics and high-stability embedded systems. With native support for Windows, Linux, macOS, and Android, integration is seamless across platforms.
