Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-DZ1140-V1.0

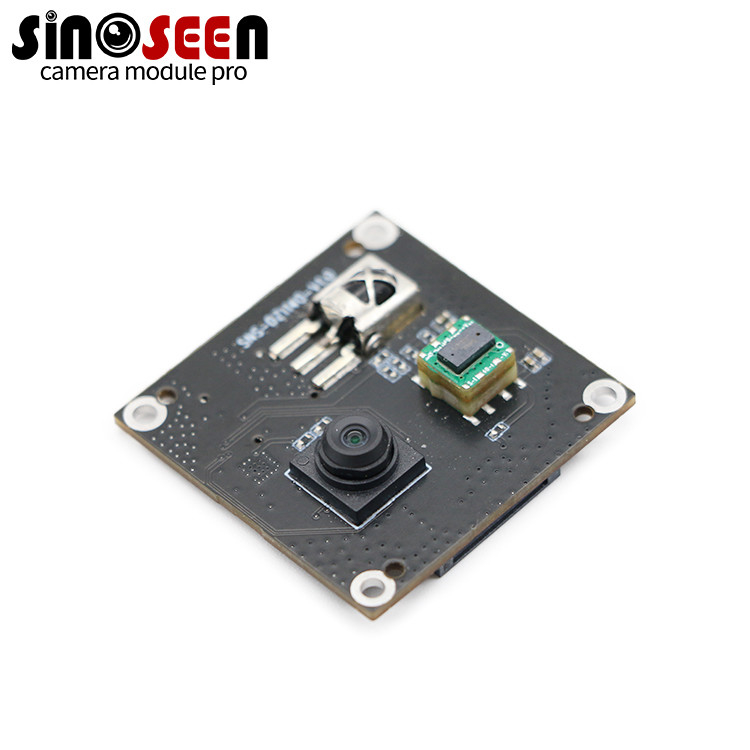

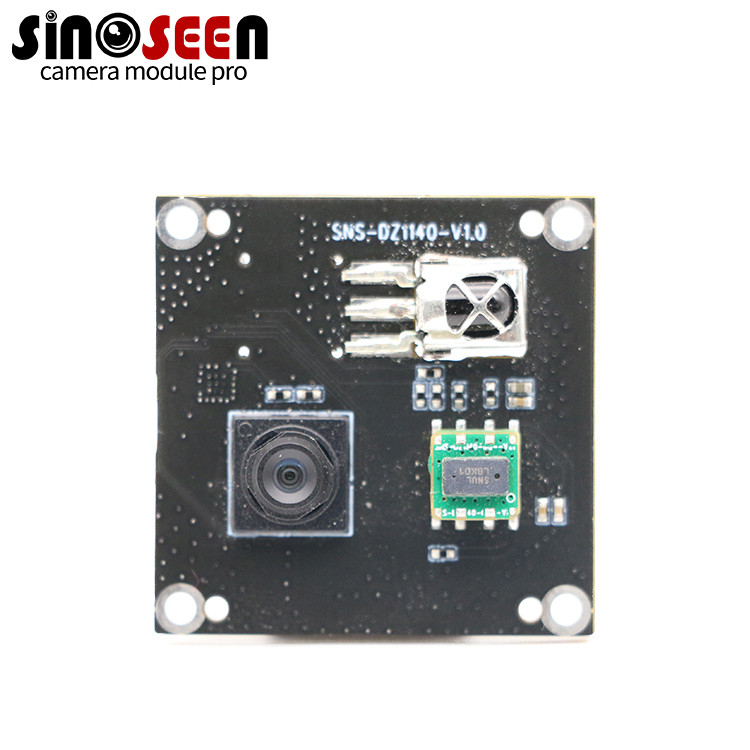

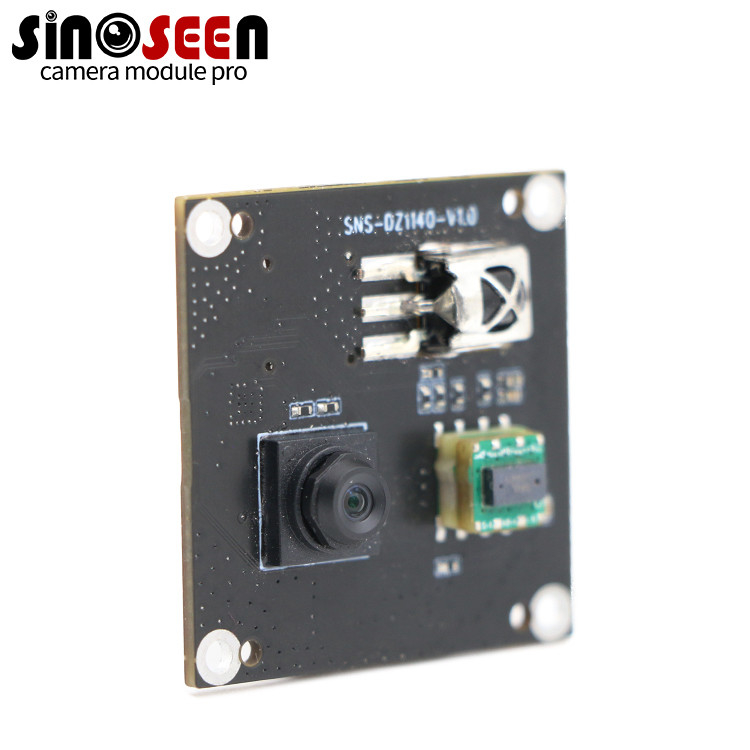

Transform your video conferencing experience with the Sinoseen BF20A6 USB Camera Module. This compact 1/10-inch CMOS sensor module delivers high-quality 640x480 resolution video at 30 frames per second, making it ideal for conference phones and embedded communication systems.
| Attribute | Value |
|---|---|
| Type | USB Camera Module |
| Sensor | BF20A6 1/10 inch |
| Resolution | 30W 640×480 |
| Frame Rate | 30FPS |
| Lens FOV | 51° |
| Interface | USB |
| Module | SNS-DZ1140-V1.0 |
| Sensor | BF20A6 CMOS |
| Image sensor size | 1/10 inch |
| Pixel | 30W |
| Most effective pixels | 640×480 |
| Pixel Size | 2.25um×2.25um |
| Frame rate | 30fps |
| Optical distortion | ≤15.5% |
| Image sensor Data output | RAW Data 10bits |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | YUV |
| Output formats | RAW Bayer 10bits |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (above 2.6.26), Mac OS X 10.4.8+, Android 4.0+ |
The Sinoseen SNS-DZ1140-V1.0 Camera Module simplifies product design while enhancing video quality. Its fixed-focus design reduces hardware costs and eliminates complex focusing mechanisms, solving the high cost and integration challenges of traditional solutions.
With broad compatibility across operating systems and energy-efficient operation, this module delivers high-quality video conferencing capabilities with lower costs and simpler integration, boosting your product's market competitiveness.
