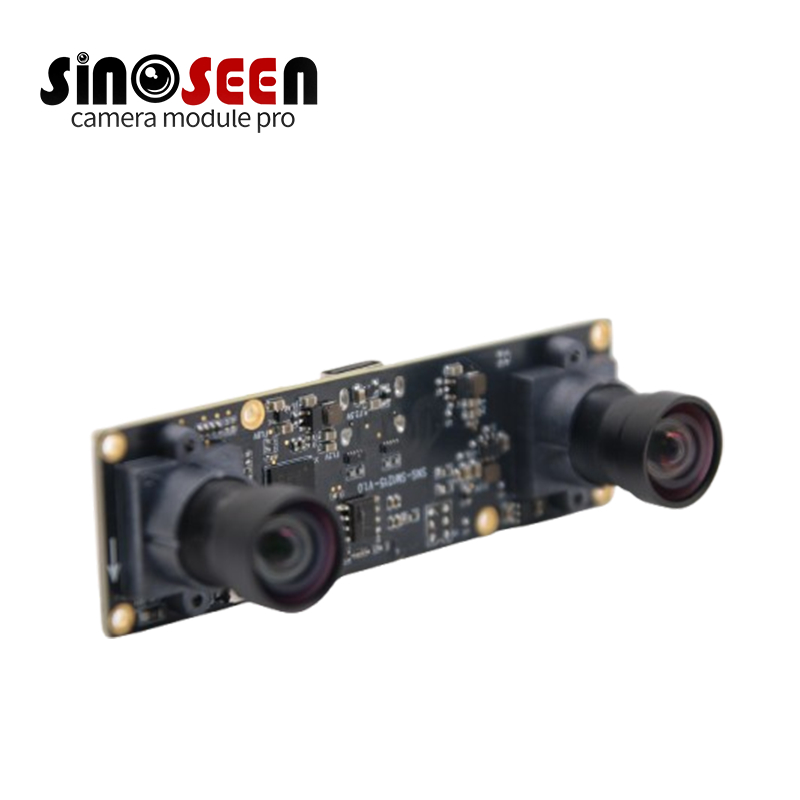

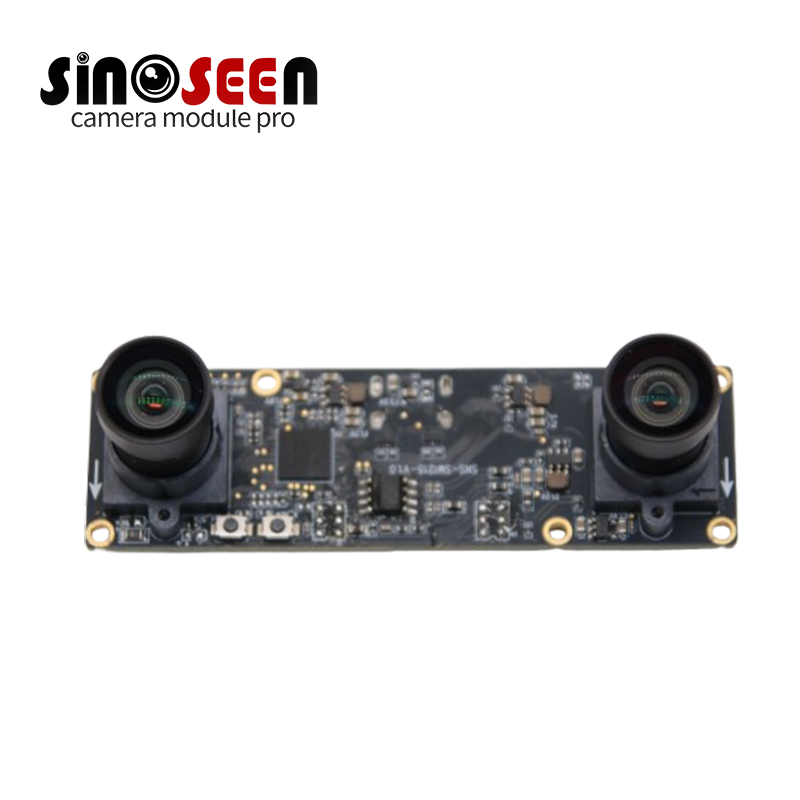

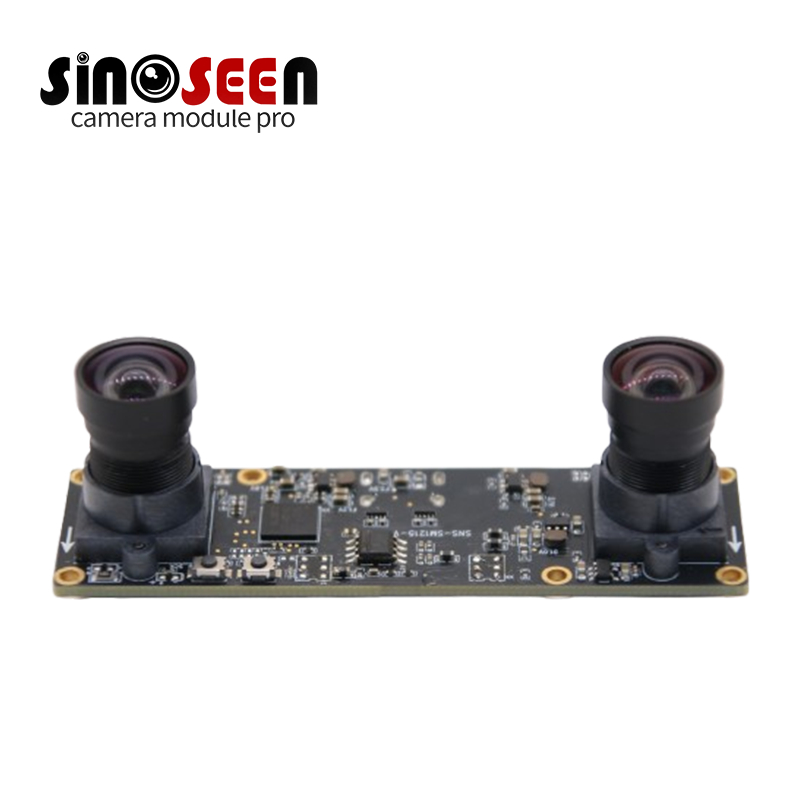

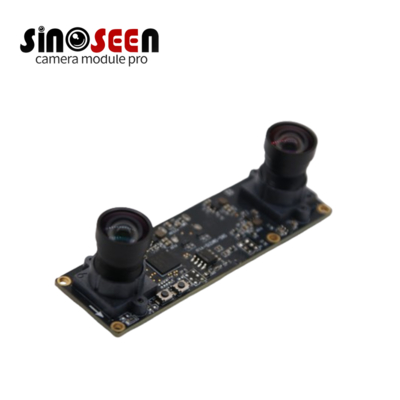

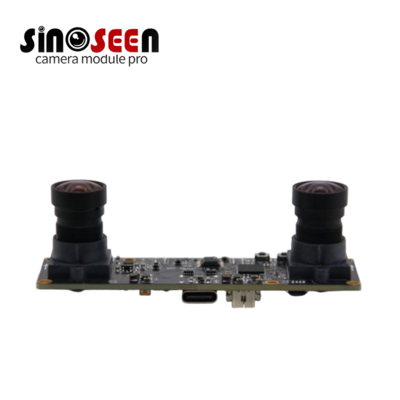

1536x1536 USB 360° Panoramic Camera with Type-C Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS-USB360-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type:: | OEM Camera Module | Resolution: | 1920×1080 |
|---|---|---|---|
| Dimensions: | (compatible With 32mmx32mm) | ||
| Highlight: | USB 360° panoramic camera,Type-C dual lens camera,1536x1536 resolution camera module |
||
Product Description
1536x1536 USB 360° Panoramic Camera with Type-C Interface
The SNS-USB360-1.0 is a high-definition USB 360° panoramic camera featuring a 1/2.4-inch sensor and HD 1536x1536 resolution. This professional-grade camera delivers seamless 360° video stitching at 3576x1536 @ 30FPS, making it ideal for VR, surveillance, and industrial applications.
Key Features
- HD 360° Imaging: 3576x1536 resolution at 30FPS for immersive panoramic video
- Driver-Free Operation: UVC compliant with USB2.0 OTG and Type-C connectivity
- Advanced Controls: Auto exposure, white balance, gain control, and adjustable image parameters
- Wide Coverage Lens: 210° field of view for complete panoramic capture
- Compact Design: Small 150*55mm form factor with low 1.5-2W power consumption
Technical Specifications
| Module No | SNS-USB360-1.0 |
|---|---|
| Pixel Size | 3.5 μm * 3.5 μm |
| Effective Pixels | HD 1536(H) * 1536(V) |
| Video Output Format | H.264 / H.265 |
| 360° Stitching Resolution | 3576 * 1536 @ 30fps |
| Image Sensor Size | 1/2.4" |
| OTG Protocol Support | USB 2.0 OTG |
| Driver-Free Protocol | USB Video Class (UVC) |
| Image Controls | Auto Exposure, White Balance, Gain Control |
| Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
| Lens | FOV 210° |
| Interface | Type-C |
| Operating Voltage | DC 5V |
| Power Consumption | 1.5W ~ 2W |
| Operating Temperature | 0 ~ 65°C |
| Board Size | 150 * 55 mm |
| Cable Length | Standard 1 m / 1.5 m |
| Supported OS | Windows 10 |
