AI Powered 3D Face Recognition Camera Module with RGB IR Dual Sensors UVC 720P Output and Low Power Design
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-face-recognition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Focus Type: | Auto Focus | Image Stabilization: | Optical |
|---|---|---|---|
| Feature: | Low Light Performance | Lens Fov: | 70°(optional) |
| Lens Type: | Fixed Focus | Type: | USB Camera Module |
| Highlight: | AI face recognition USB camera,70° FOV camera module,0.6s recognition USB module |
||
Product Description
The Qingwei intelligent face recognition module features an AI SoC with CK804/CK805 processors combined with RGB and IR dual cameras. It provides UVC 720P video output and supports real-time image capture, processing, and compression in a single unit.
Engineered for precision, the module achieves 1:N and 1:1 authentication with a recognition speed of less than 0.6 seconds. Its advanced 3D liveness detection prevents spoofing attacks, while maintaining payment-grade security standards.

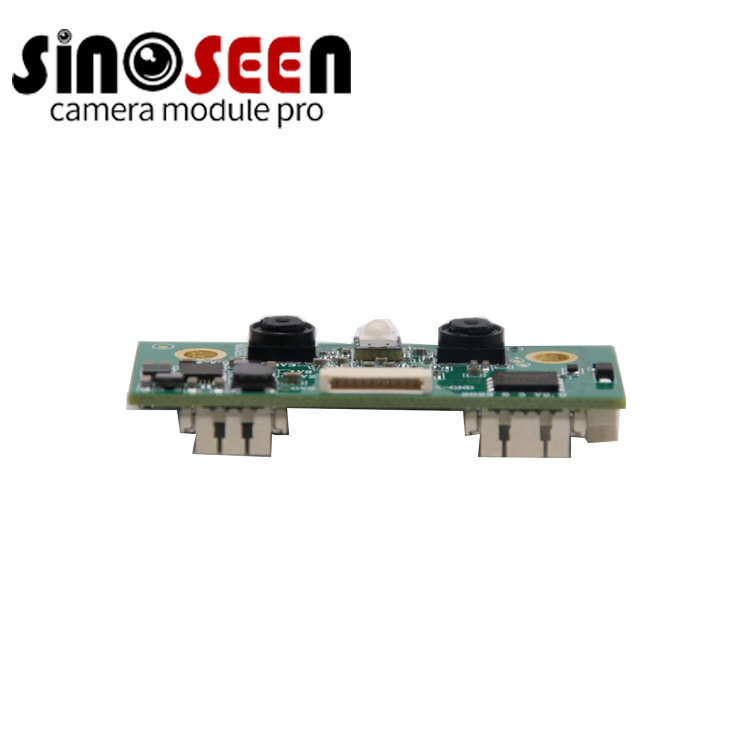

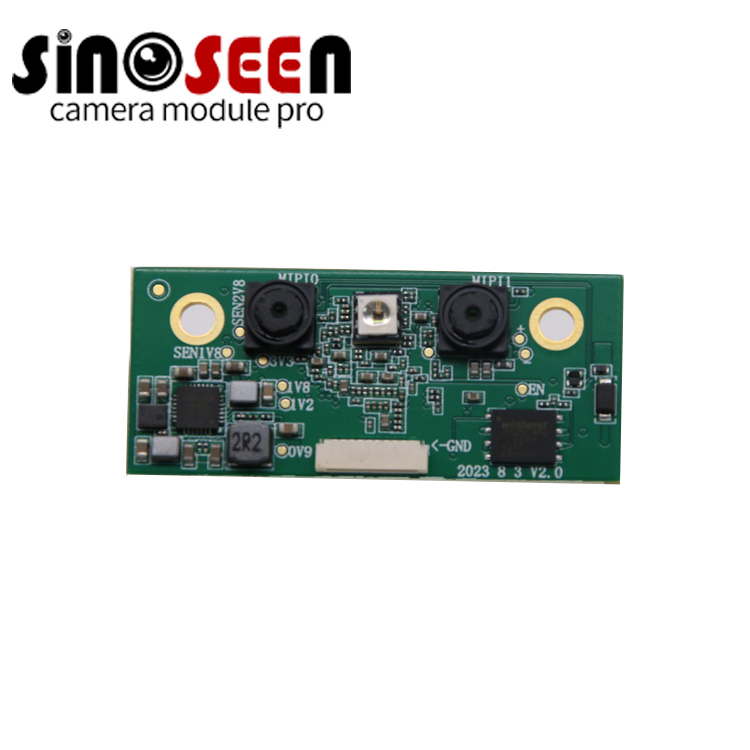

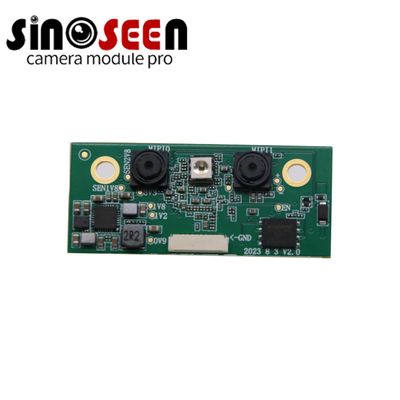

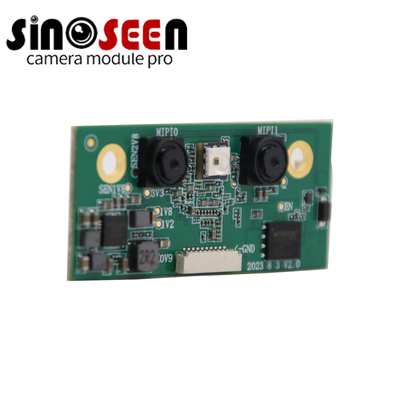

The hardware design includes a stable PCBA with ribbon connector, operating voltage of 5V-12V, and robust communication via UART interface. With power consumption under 4W peak and 1.2W average, it ensures efficient performance for embedded systems.
The camera module delivers a 70° vertical field of view and 50° horizontal field of view, covering a wide detection range. Users between 130cm and 200cm in height are fully supported, making it adaptable to diverse environments.
- AI SoC CK804/CK805 with dual RGB + IR cameras
- UVC 720P video output for easy integration
- Recognition speed under 0.6 seconds with high accuracy
- Secure 3D liveness detection against spoofing attacks
- Efficient power design with <4W peak and 1.2W average consumption
- Wide FOV coverage supporting user heights from 130cm to 200cm
