High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1224-48-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Focus Type: | Auto Focus | Image Stabilization: | Optical |
|---|---|---|---|
| Feature: | Low Light Performance | Lens Fov: | 70°(optional) |
| Lens Type: | Fixed Focus | Type: | USB Camera Module |
| Highlight: | USB3.0 camera module for machine vision,1/1.2 inch sensor USB camera,1080P 90FPS USB3.0 camera module |
||
Product Description
High Frame Rate CMOS USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS for Machine Vision
Product Description

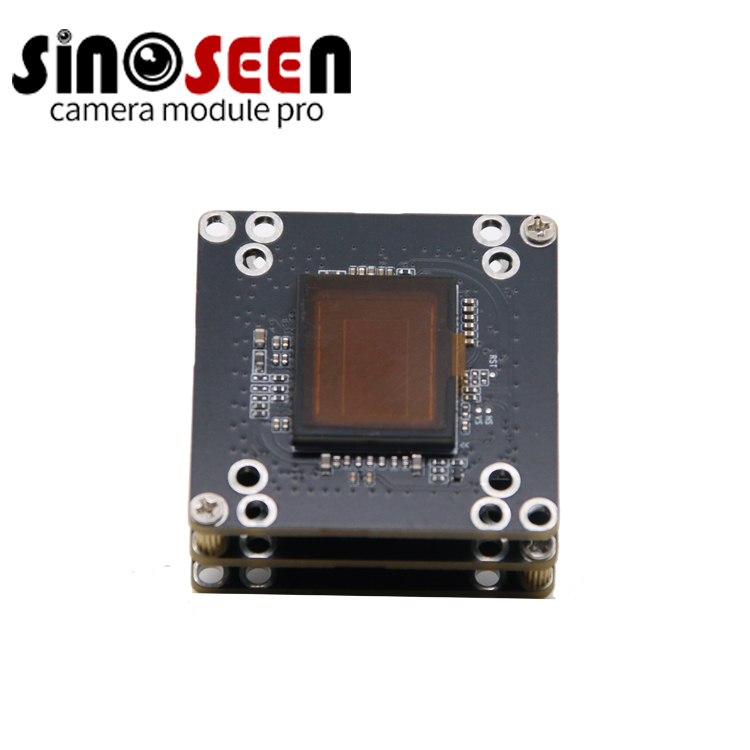

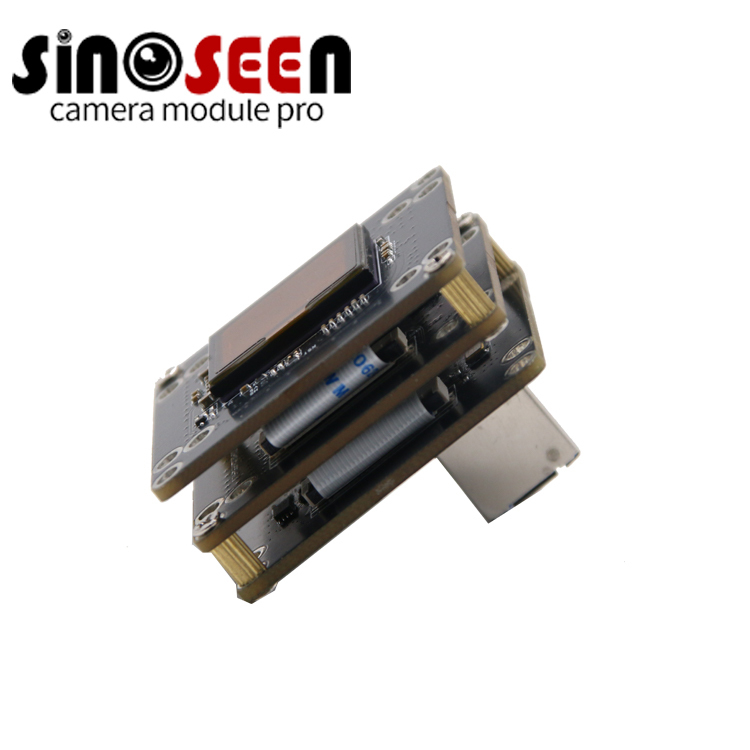

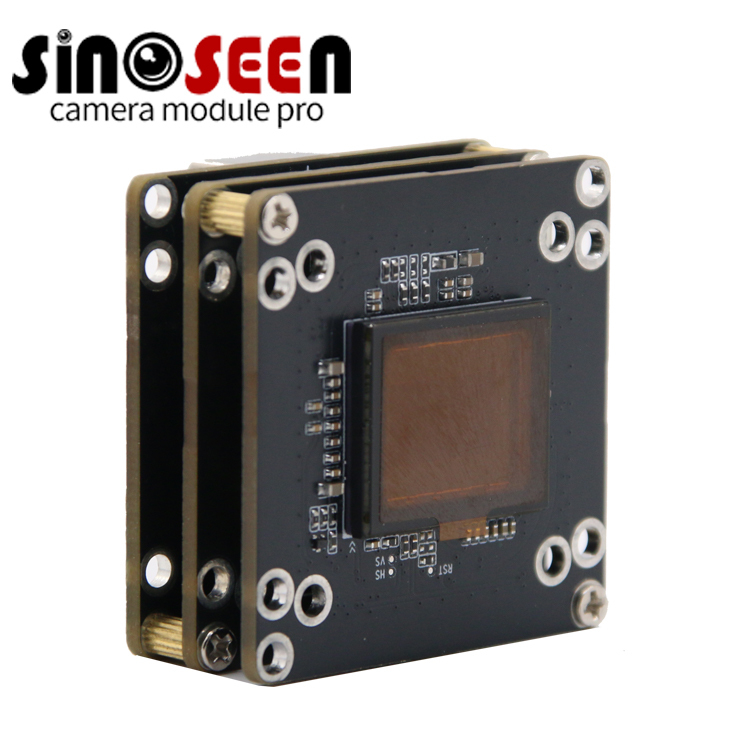

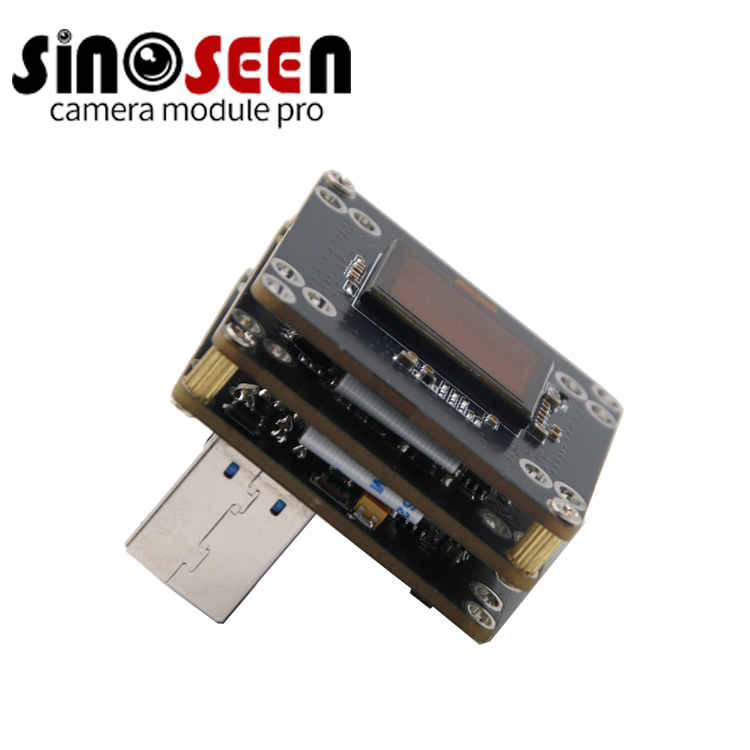

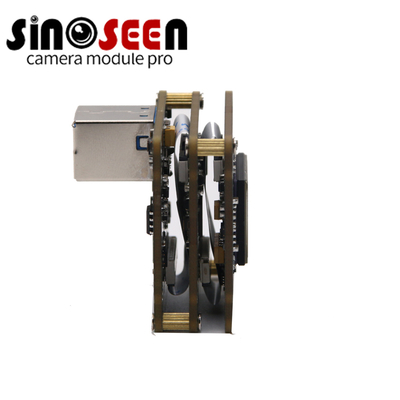

This CMOS USB3.0 camera module is engineered for machine vision and industrial automation. Featuring a 1/1.2 inch CMOS sensor, it delivers 1920 * 1080 resolution at up to 90fps, ensuring sharp, detailed, and real-time imaging.
The USB3.0 interface provides 3Gbps transfer speed, supporting uncompressed and high frame rate data output. Compatible with MJPG and YUY2 formats for flexible integration, users can capture high-quality images and videos without lag.
The camera supports advanced image adjustment including exposure, brightness, contrast, and saturation. Optimized for low light environments, it maintains excellent performance under challenging conditions.
Works seamlessly with Windows, Linux, Android, and Mac systems, offering plug-and-play connectivity without external drivers. Standard C-mount and custom lenses are supported for flexible adaptation to diverse projects.
Applications include industrial inspection, machine vision systems, quality control, automation, surveillance, and access management.
Highlights
- 1/1.2 inch CMOS sensor with 1080P 90fps output
- Optimized for machine vision and industrial inspection
- USB3.0 high-speed interface, 3Gbps bandwidth
- High accuracy image capture in low light
- Supports real-time video and still image formats
Specifications
| Item | Specification |
|---|---|
| Model | Signal SNS-DZ1224-48-V1.0 |
| Image Sensor Size | 1/1.2" inch |
| Effective Pixels | 1920 * 1080 |
| Pixel Size | 5.8 µm * 5.8 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Resolution & Frame Rates |
- 1920 * 1080 → MJPG 90 FPS / YUY2 60 FPS - 1280 * 960 → MJPG 90 FPS / YUY2 90 FPS - 1280 * 720 → MJPG 90 FPS / YUY2 90 FPS - 640 * 480 → MJPG 90 FPS / YUY2 90 FPS |
| SNR (max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Digital Interface | USB3.0 (Type-B) |
| Transfer Rates | 3 Gbps |
| Power Requirements | 5V ± 5% |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Temperature | -30℃ ~ 60℃ |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
