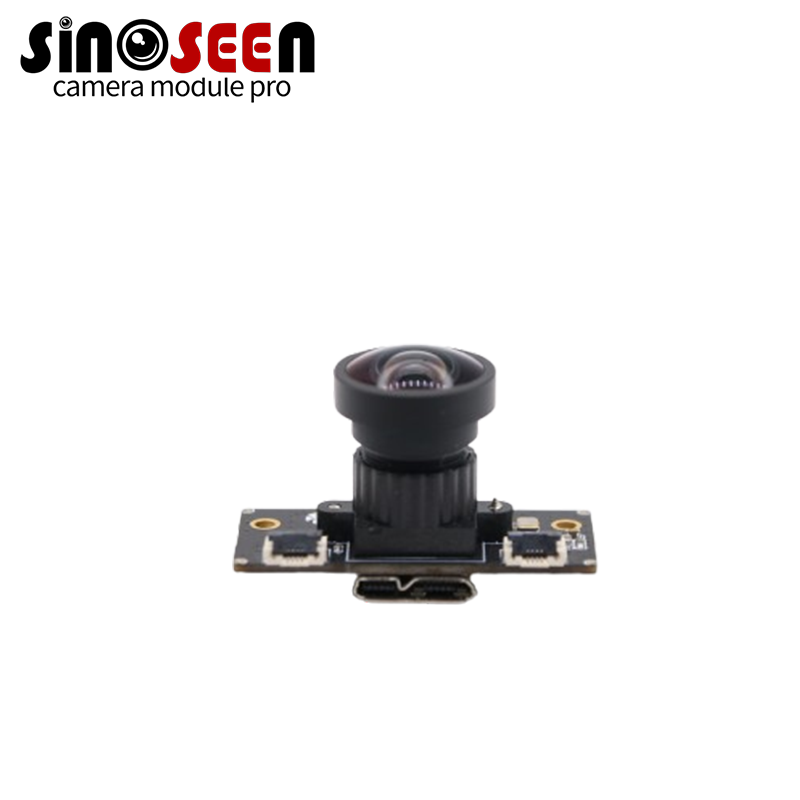

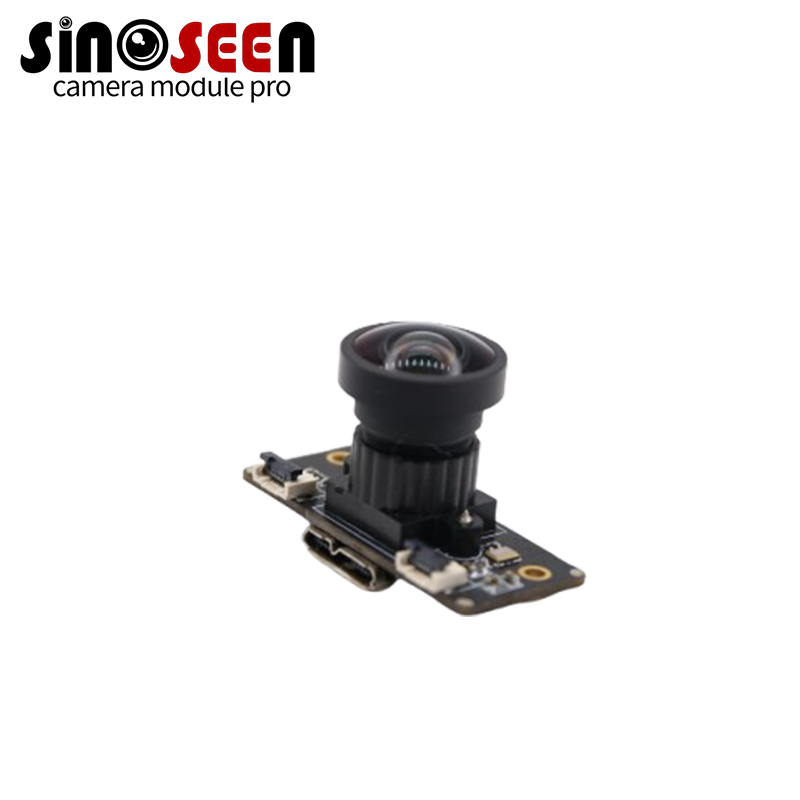

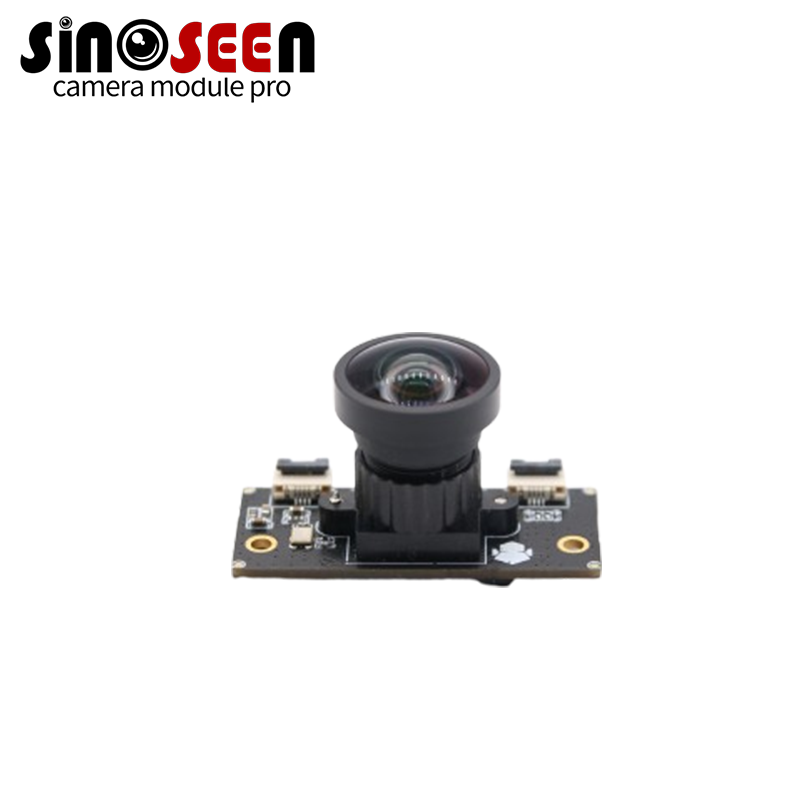

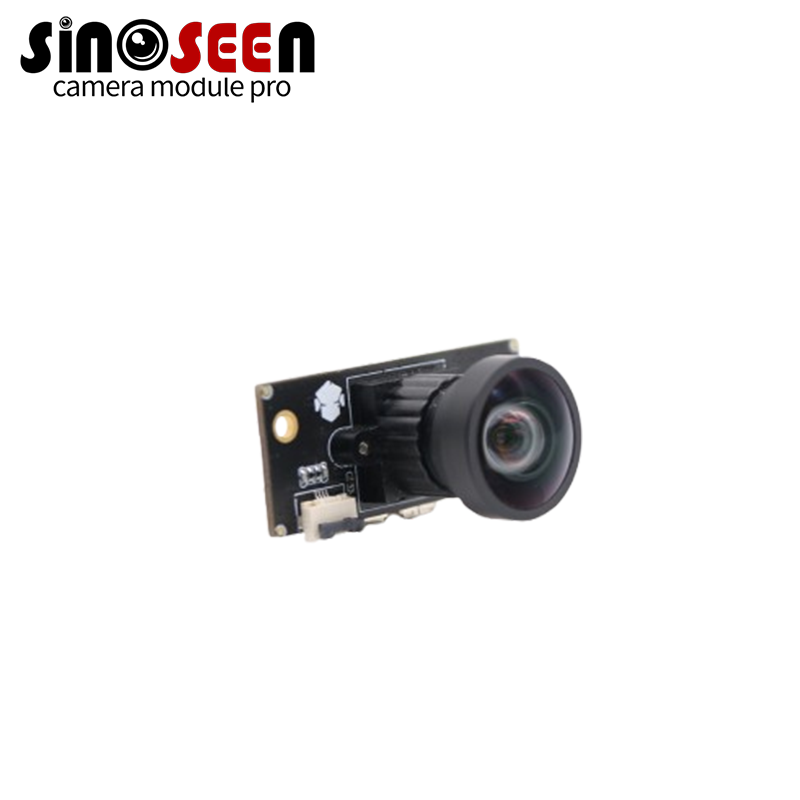

5MP CMOS Camera Module 1/2.8 Inch Sensor with 2592 x 1944 Resolution USB3.0 for Security
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1031-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Max Pixel Rate: | 28Mp/s | High Frate: | 30fps |
|---|---|---|---|
| Keyword: | CMOS Camera Module | Display Interface: | EDP/LVDS/MIPI |
| Optical Format: | 1/2.7-inch (6.6 Mm) | Focus Range: | 50mm To Infinity |
| Output Image Format: | MJPEG/YUV2(YUYV) | Equipment Size: | 42mm×40mm×10mm(±1mm) |
| Image Format: | YUY2/MJPEG | Outside Size: | 45×45×100mm |
| Interface Type: | Usb2.0 / Mipi | Efl: | 4.3 |
| Network: | SDK | Lens Size: | 1/4inch |
| F Number: | 2.4 | ||
| Highlight: | 5MP USB camera module,USB3.0 CMOS camera,2592x1944 resolution camera module |
||
Product Description
5MP CMOS Camera Module with 1/2.8 Inch Sensor and USB3.0 Interface
High-Resolution Imaging Solution
The SNS-DZ1031 camera module delivers exceptional 5MP image quality at 2592 x 1944 resolution. Featuring 2.0µm pixels, this module captures fine details with excellent performance in both normal and low-light conditions.
Key Features
- 5MP resolution (2592 * 1944 pixels)
- Smooth 1080P video at 60fps
- USB3.0 interface with 360MB/s transfer speed
- Supports both still images (JPG/BMP) and video capture (AVI/MP4)
- Wide compatibility with Windows, Linux, Mac, Android, and Wince systems
- Ideal for security systems, video conferencing, and industrial inspection
Technical Specifications
| Item | Specification |
|---|---|
| Model | Signal SNS-DZ1031-V1.0 |
| Image Sensor Size | 1/2.8" inch |
| Effective Pixels | 2592 * 1944 |
| Pixel Size | 2.0 µm * 2.0 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Frame Rates |
MJPG: - 2592 * 1944 → 25 FPS - 2560 * 1440 → 25 FPS - 2048 * 1536 → 25 FPS - 1920 * 1080 → 60 FPS - 1600 * 1200 → 25 FPS - 1280 * 1024 → 30 FPS - 1280 * 720 → 30 FPS - 1024 * 768 → 30 FPS - 800 * 600 → 30 FPS - 640 * 480 → 30 FPS YUY2: - 2592 * 1944 → 25 FPS - 2560 * 1440 → 25 FPS - 2048 * 1536 → 25 FPS - 1920 * 1080 → 60 FPS - 1600 * 1200 → 25 FPS - 1280 * 1024 → 60 FPS - 1280 * 720 → 60 FPS - 1024 * 768 → 60 FPS - 800 * 600 → 60 FPS - 640 * 480 → 60 FPS |
| Optical Distortion | < -4.8% |
| Digital Interface | Micro USB3.0 |
| Transfer Rates | 360 MB/s |
| Power Requirements | 5V ±5% |
| Storage Temperature | -40°C ~ 70°C |
| Operating Temperature | -30°C ~ 60°C |
| Operating System Support | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC supported) |
| Lens View (Default Lens) | M12 * P0.5 Lens |
| Lens Construction | 4G2P + 650IR |
| F/NO (Aperture) | 2.2 ±5% |
| Effective Focal Length (EFL) | 2.2 mm ±5% |
| Field of View (FOV) | 120° ±3° |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
