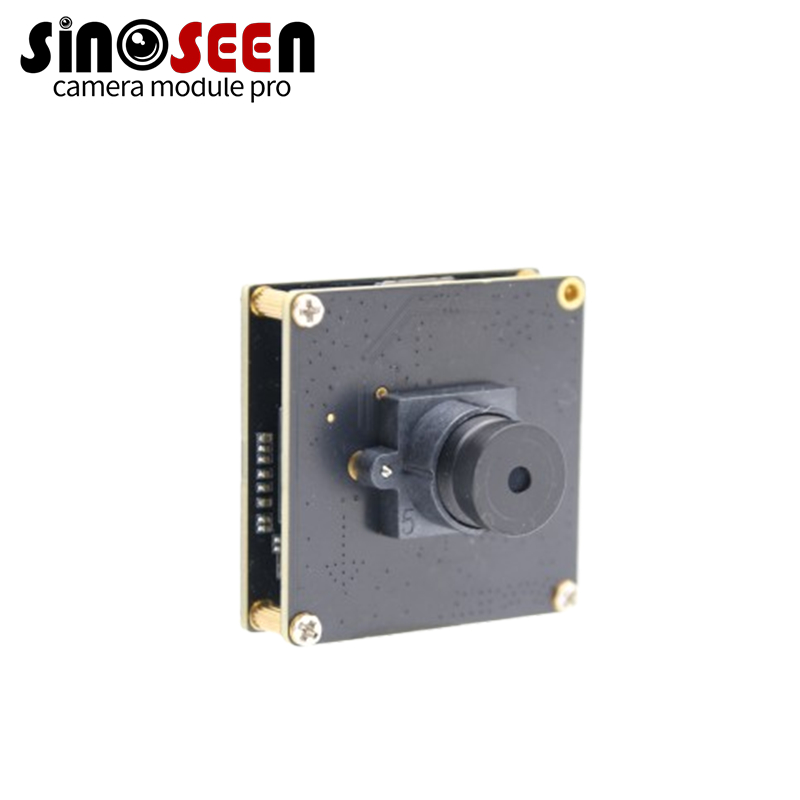

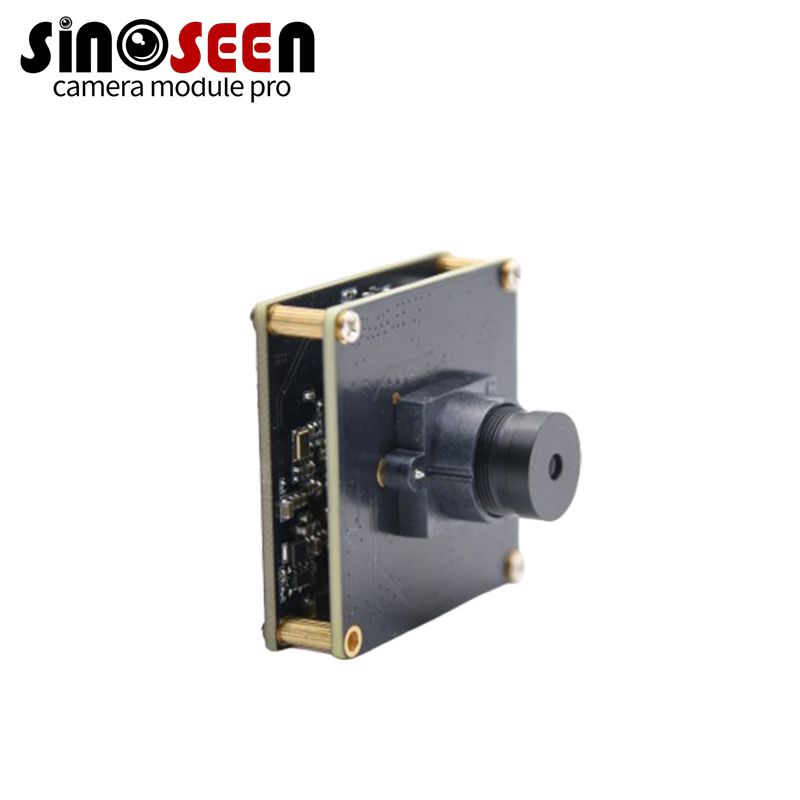

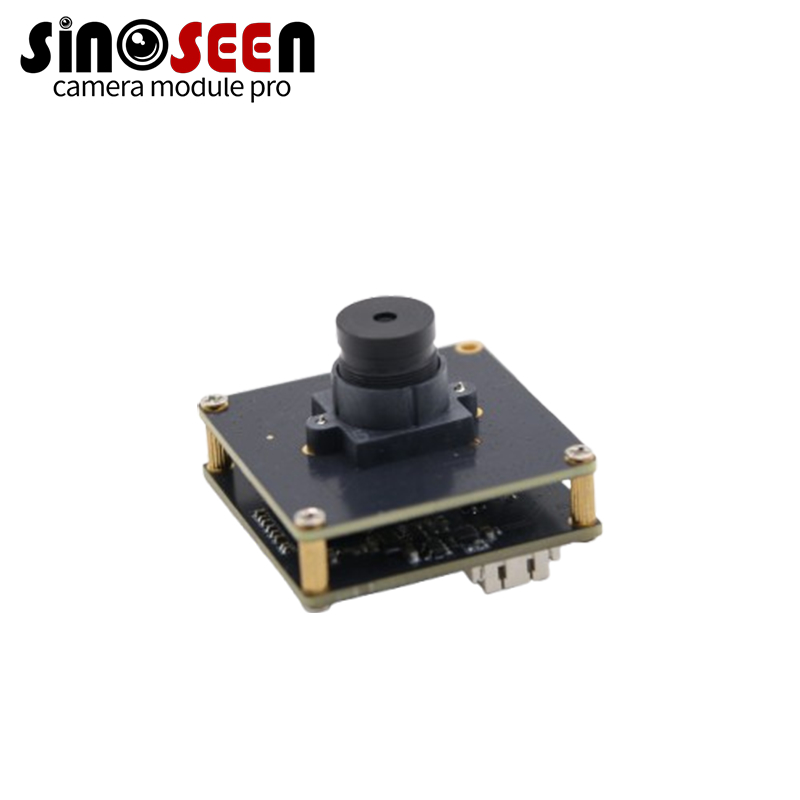

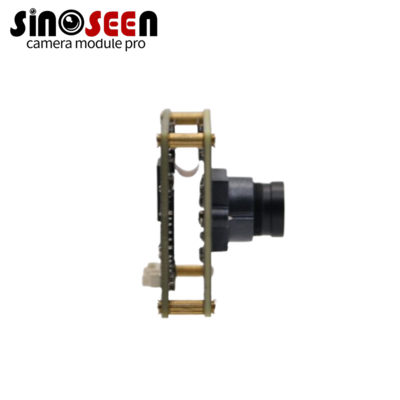

48MP CMOS Camera Module with USB2.0 Interface Supports 4K at 25fps and 1080p at 30fps for Machine Vision
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1204-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Image Stabilization: | Optical | View Angle: | 72° |
|---|---|---|---|
| Pixels: | 3840H * 2160V | Keyword: | CMOS Camera Module |
| Image Colo: | RGB | Keywords: | IP Camera Module |
| Array Size: | 4208x3120 | Lens Type: | Fixed |
| Fov: | D= 85° | Pixel: | 8 Mega Pixel |
| Print Contrast: | 20% Minimum Reflectance | Precision: | ≥5mil |
| Lens Size: | 1/6.5inch | Optical Format: | 1/1.8" CMOS Image Sensor |
| Shutter Type: | Electronic Shutter | ||
| Highlight: | 48MP USB camera module,4K USB camera module with warranty,72° view angle USB camera |
||
Product Description
48MP CMOS Camera Module USB2.0 Interface
High-Resolution Imaging for Machine Vision Applications
The Signal SNS-GM48M-V1.0 is a professional-grade 48MP CMOS sensor module featuring USB2.0 interface connectivity. This versatile module supports multiple output formats including MJPG, YUY2, and Raw Bayer 10-bit, making it adaptable to diverse imaging requirements across industrial applications.
Key Features
- 48MP high-resolution imaging for exceptional detail capture
- Multiple format support: MJPG, YUY2, and Raw Bayer 10-bit outputs
- Full HD video at 30fps for smooth motion capture
- USB2.0 high-speed transfer (480 MB/s) for efficient data transmission
- Multi-platform compatibility: Windows, Mac, Linux, and Android
- Plug-and-play operation with UVC support
Technical Specifications
| Model | Signal SNS-GM48M-V1.0 |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Resolution & Frame Rates (MJPG) |
7968 * 5984 → 3 FPS 5696 * 4272 → 5 FPS 4608 * 3456 → 10 FPS 4160 * 3120 → 10 FPS 4000 * 3000 → 10 FPS 3840 * 2160 → 25 FPS 2592 * 1944 → 20 FPS 1920 * 1080 → 30 FPS 1600 * 1200 → 20 FPS 1280 * 720 → 30 FPS 800 * 600 → 20 FPS 640 * 480 → 20 FPS 320 * 240 → 20 FPS |
| Maximum Resolution & Frame Rates (YUY2) |
3840 * 2160 → 1 FPS 2592 * 1944 → 2 FPS 1920 * 1080 → 5 FPS 1600 * 1200 → 5 FPS 1280 * 720 → 10 FPS 640 * 480 → 20 FPS 320 * 240 → 20 FPS |
| Digital Interface | USB2.0 |
| Transfer Rates | 480 MB/s |
| Power Requirements | 5V ±5% |
| Power Consumption | Max 800 mA |
| Operating Temperature | Max 85°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating System Support | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC supported) |
| Optical Specifications |
Effective Focal Length: 3.24 mm ±5% Aperture: F/2.2 ±5% Field of View: D: 80° / H: 68° / V: 54° ±3° Optical Distortion: < -0.5% Lens View: M12 * P0.5 Focus Type: Fixed focus |
Industrial Applications
This high-performance camera module is engineered for precision applications including security monitoring systems, machine vision solutions, and industrial inspection equipment, delivering reliable imaging performance in demanding environments.
