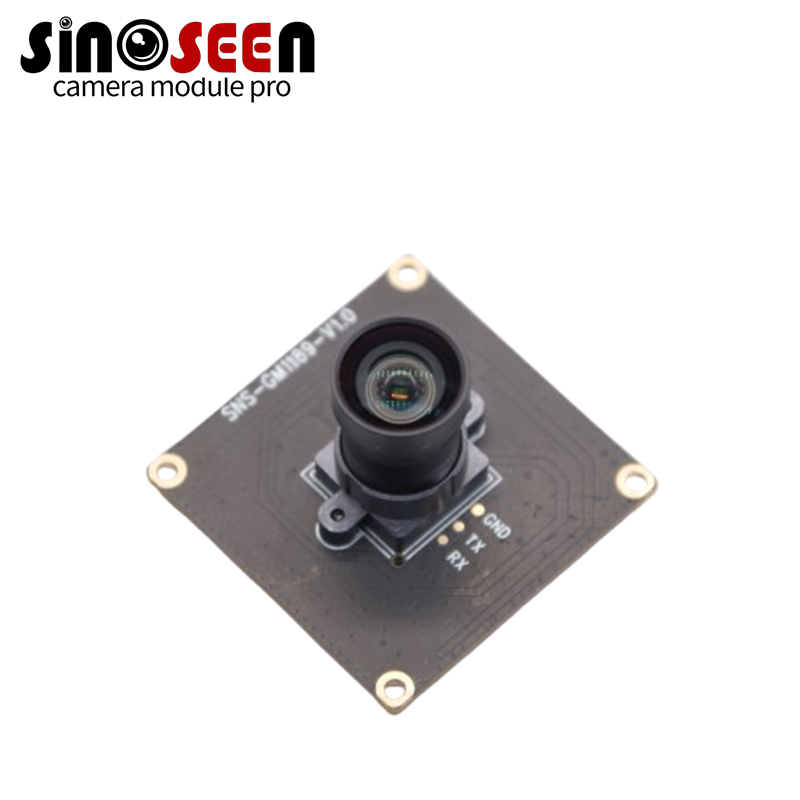

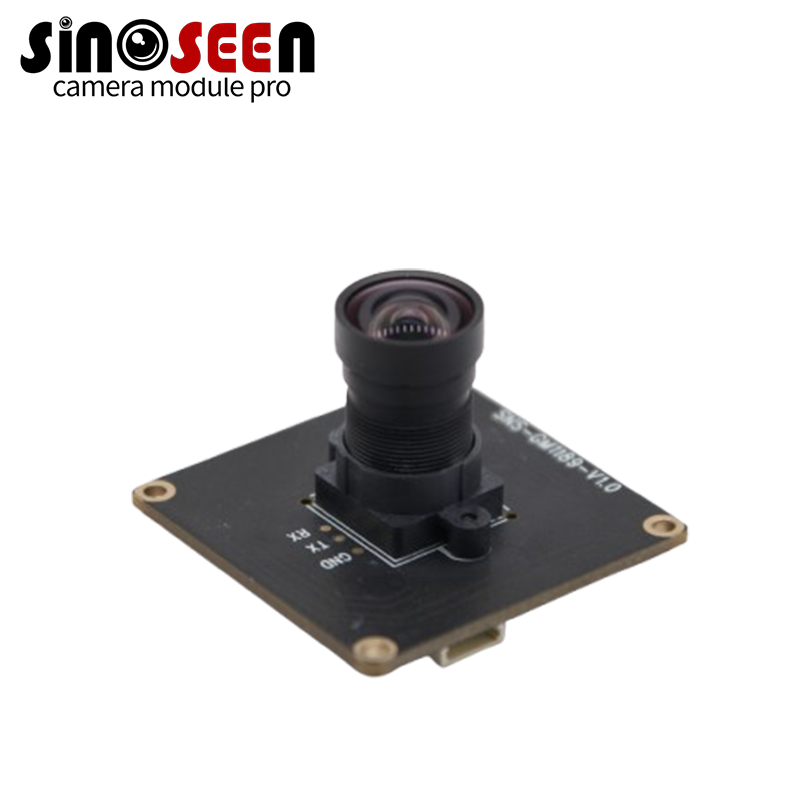

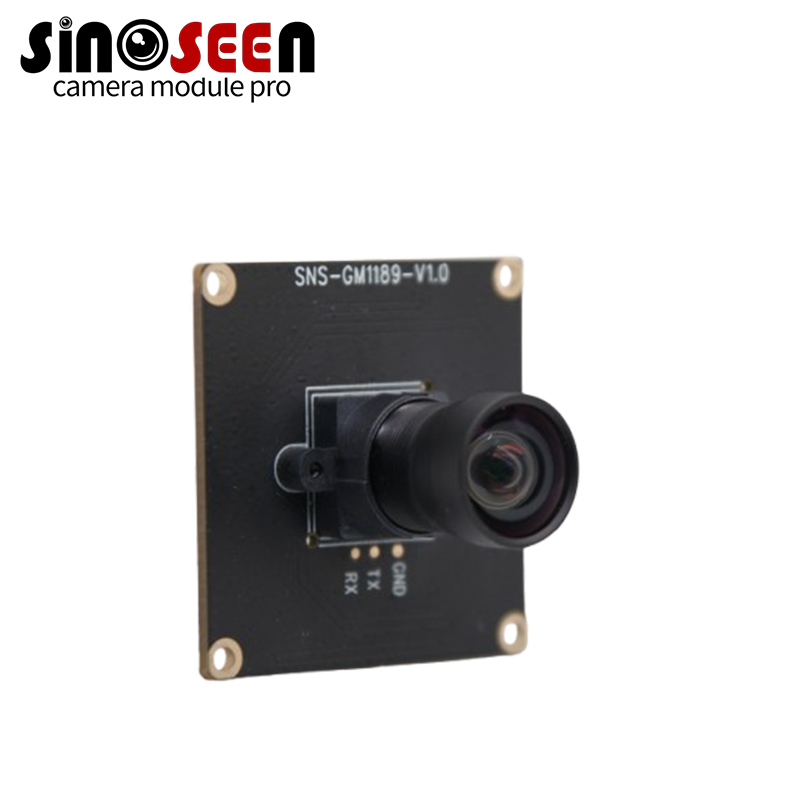

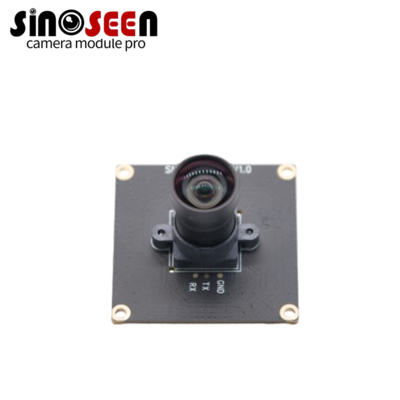

2MP CMOS Image Sensor with 1/2.44 Inch Format and 97 Degree Wide Angle Lens Featuring Raw Bayer 10-bit Data Output
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1189-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Image Region: | 3835μm X 2135μm | Distortion: | ＜22% |
|---|---|---|---|
| Uvc Protocol: | USB Video Class（UVC） | View: | IPS |
| Weight: | 20g | Interface: | USB 2.0 |
| Dynamis Range Dynamis: | 82dB | Maximum Effective Pixel: | 1920(H)X1080(V) |
| Color: | Color | Image Color: | RGB |
| Power Supply: | USB | Image Stabilization: | Optical |
| Mounting Type: | MIPI USB Connection | Video Format: | MP4 |
| Module Pixel: | 8 Million Pixels | ||
| Highlight: | 2MP USB camera module with wide angle lens,1080p USB camera module for video conferencing,USB camera module with 97° field of view |
||
Product Description
2MP CMOS Image Sensor with 1/2.44 Inch Format 97 Degree Wide Angle Lens Full HD 1080p Video and USB2.0 Interface
Product Description
This 2MP CMOS sensor offers an effective resolution of 1920x1536 pixels and supports Full HD video at 30fps. With a 1/2.44 inch format and 97° wide angle lens, it captures more detail in every frame.
The sensor uses a USB2.0 interface for stable data transfer at 480MB/s, and supports MJPG video output with Raw Bayer 10-bit data.
It is driver-free plug-and-play, compatible with Windows, Mac, Linux, and Android systems, making it easy to integrate into different devices.
Designed for surveillance, video conferencing, industrial vision, and access control, it provides reliable imaging with low distortion and natural color reproduction.
Highlights
- 2MP effective pixels
- Full HD 30fps video
- 97° wide angle lens
- Plug-and-play USB2.0
| Item | Specification |
|---|---|
| Model | Signal SNS-GM1189-V1.0 |
| Image Sensor Size | 1/2.44" inch |
| Effective Pixels | 1920 × 1536 |
| Pixel Size | 3.0 µm × 3.0 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG |
| Maximum Resolution & Frame Rates |
- 1920 × 1536 → 30 FPS - 1920 × 1080 → 30 FPS |
| SNR (Max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Digital Interface | USB2.0 / 1.0 / 5-pin cable (1.5 m length) |
| Transfer Rates | 480 MB/s |
| Power Requirements | 5V ±5% |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Storage Temperature | -40°C ~ 70°C |
| Operating Temperature | -30°C ~ 60°C |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Effective Focal Length (EFL) | 3.24 mm ±5% |
| F/NO (Aperture) | 2.2 ±5% |
| Field of View (FOV) | D: 97° ±3° |
| Optical Distortion | < -1% |
| Lens Construction | 4G2P + IR |
| Lens View (Default Lens) | M12 × P0.5 |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
