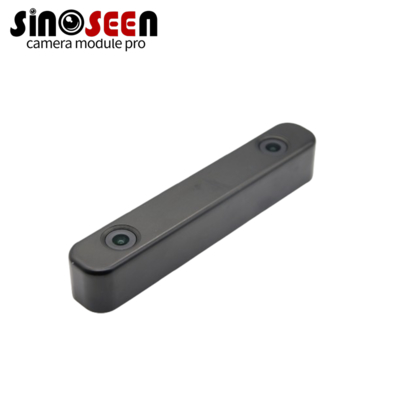

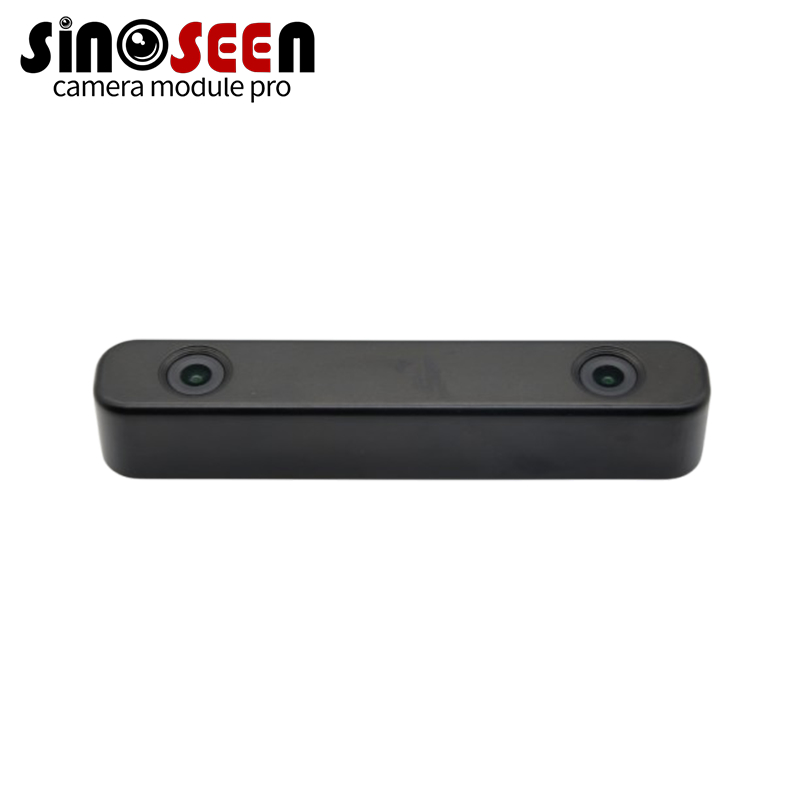

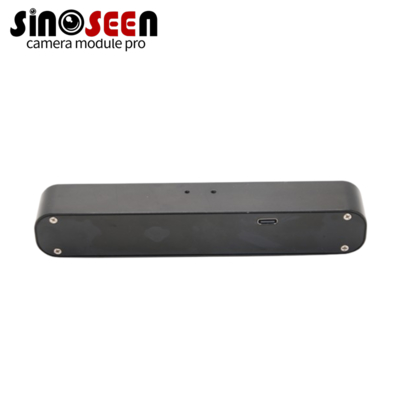

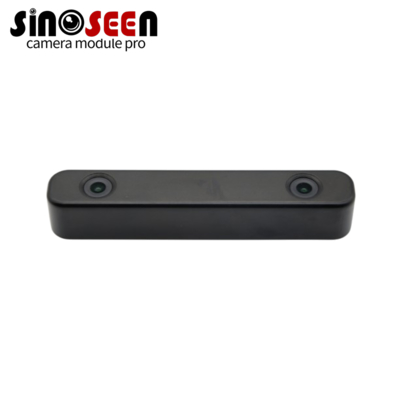

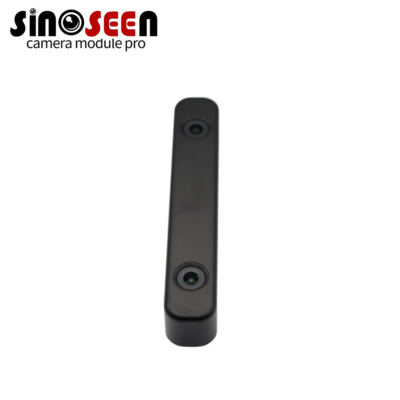

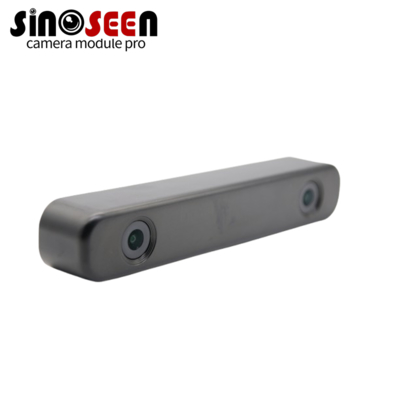

2MP CMOS Camera Module 1920x1200 Resolution 50fps USB2.0 Type-C
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1191-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Fov: | D=90 Degrees (Support Customization) | Equipment Size: | 38*38*10mm |
|---|---|---|---|
| Ir Filter: | 650±10nm | Special Features: | Face Recognition |
| Maximum Effective Pixel: | 1920(H)X1080(V) | Pixel: | 8MP |
| Image Sensor: | 1/2.8" IMX298 CMOS | Minimum Illumination: | Color 0.05lux@F1.2; Mono 0.005lux@F1.2 |
| Focus: | Autofocus | Usb Camera: | USB 2.0 Connecting Port |
| Keyword: | CMOS Camera Module | Image Resolution: | 640*480 |
| Optical Format: | 1/2.7-inch (6.6 Mm) | Sensor Model: | Sony IMX347 CMOS |
| Len Size: | 1/2.8" | ||
| Highlight: | 2MP USB camera module with Type-C,1920x1200 CMOS camera module,50fps USB2.0 camera module |
||
Product Description
2MP 1/2.6 Inch CMOS Camera Module
1920x1200 Resolution | 115° Wide Angle Lens | USB2.0 Type-C Interface | 50fps Video Output
Product Overview
This 2MP CMOS image sensor delivers 1920x1200 resolution with smooth 50fps video output in MJPG format. The 1/2.6 inch sensor ensures crisp image details across various lighting conditions.
Featuring a 115° field of view, this module captures wide coverage with minimal distortion, making it ideal for security monitoring, industrial vision systems, and video collaboration applications.
Key Features
- 1920x1200 resolution at 50fps for smooth video capture
- 115° wide angle field of view for expansive coverage
- USB2.0 and Type-C output for universal connectivity
- Supports MJPG and Raw Bayer data formats
- 480MB/s transfer speed for fast, stable data delivery
- Post-capture adjustments for exposure, brightness, contrast, and saturation
- Compatible with Windows, Linux, Mac, and Android systems
Technical Specifications
| Model | Signal SNS-SM1191-V1.0 |
| Image Sensor Size | 1/2.6" inch |
| Effective Pixels | 1920 × 1200 |
| Pixel Size | 3.0 µm × 3.0 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Resolution & Frame Rates |
- 3840 × 1200 @ MJPG → 50 FPS - 3840 × 1200 @ YUY2 → 5 FPS |
| Digital Interface | Type-C / USB2.0 (1.5 m cable length) |
| Transfer Rates | 480 MB/s |
| Power Requirements | 5V ±5% |
| Operating Temperature | -30°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating System Support | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC supported) |
| Field of View (FOV) | D: 115° ±3° |
| Optical Distortion | -8% |
| Lens Construction | 6G + IR |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
