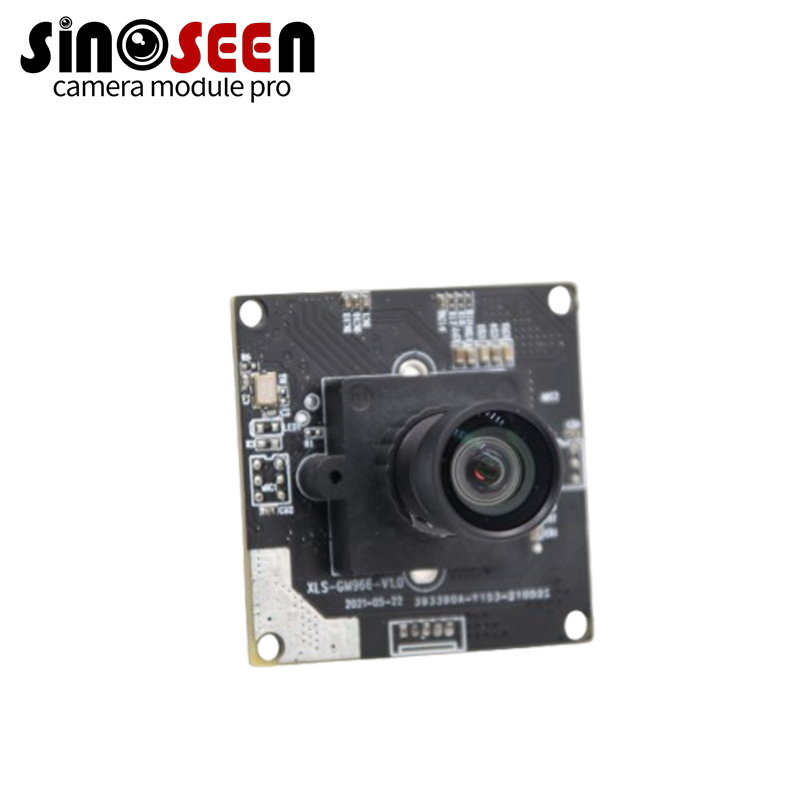

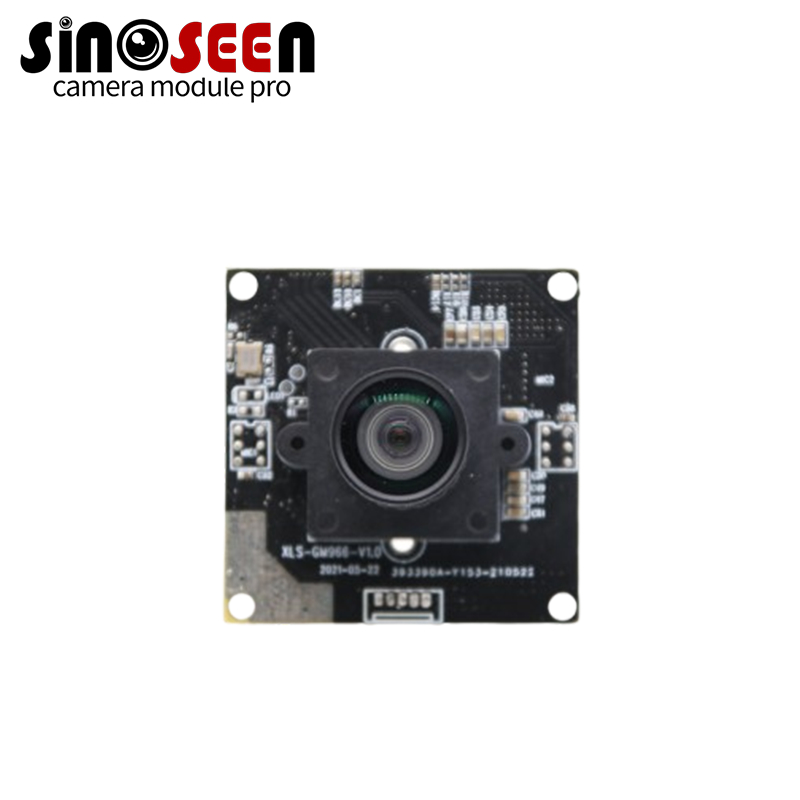

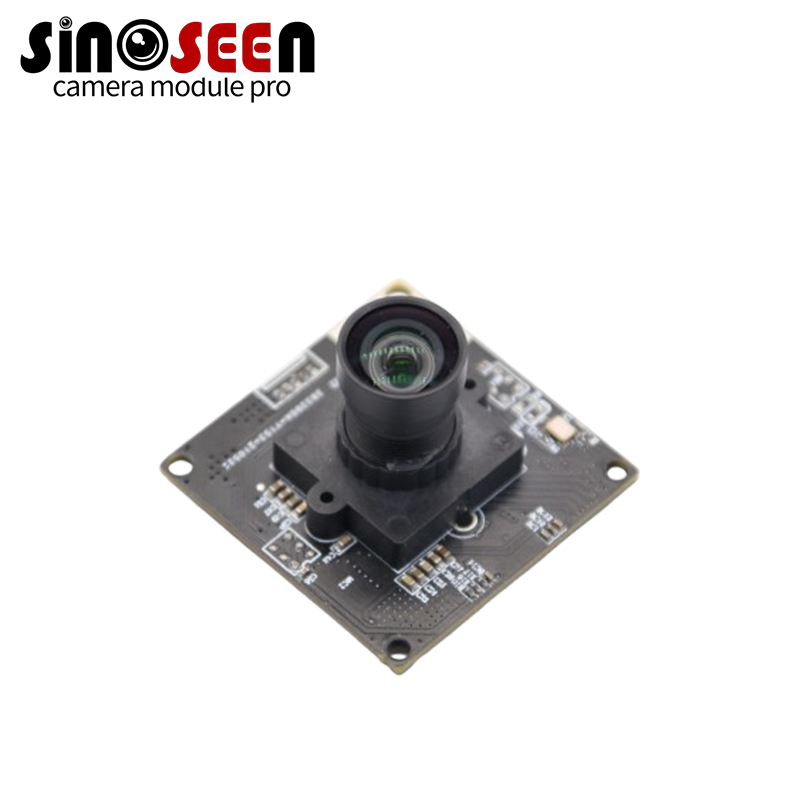

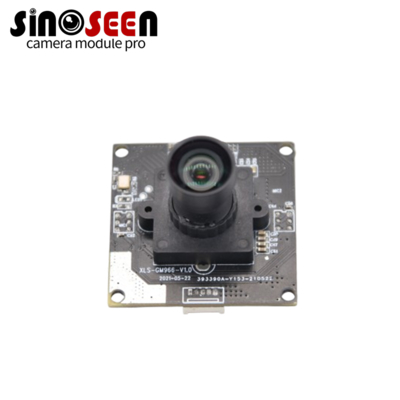

1080P USB2.0 Camera Module 60fps for Machine Vision
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | XLS-GM966-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100usd or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Description: | 850nm IR-CUT 1080P Camera Module | Series: | USB Camera Modules |
|---|---|---|---|
| Imaging Distance: | 1CM~infinitely | Operating Voltage: | DC5V |
| Special Features: | HDR, High Speed, Low Light | Standard: | USB Video Class（UVC） |
| Pixel: | 2mp | Video Format: | H.264 |
| Focus: | Fixed Focus Lens (customize) | Sensor Type: | CMOS |
| Avdd: | 2.8V | Display Interface: | EDP/LVDS/MIPI |
| Agreement: | UVC | Function: | Wide Angle |
| Coded Format: | H.265/H.264 | ||
| Highlight: | 1080P USB camera module for machine vision,USB2.0 camera module 60fps,machine vision camera module with warranty |
||
Product Description
1080P High Sensitivity USB2.0 Camera Module for Industrial and Machine Vision Applications
Product Description
The XLS-GM966 sensor captures 1080P video with rolling shutter and outputs MJPG/YUY2.
It supports high frame rates, including 1080P at 60fps, ensuring smooth motion capture.
The USB2.0 interface allows seamless integration into industrial and machine vision systems.
It features low-light sensitivity and noise reduction for precise imaging.
The sensor supports M12 lenses with a fixed focus from 60cm to infinity.
It supports high frame rates, including 1080P at 60fps, ensuring smooth motion capture.
The USB2.0 interface allows seamless integration into industrial and machine vision systems.
It features low-light sensitivity and noise reduction for precise imaging.
The sensor supports M12 lenses with a fixed focus from 60cm to infinity.
Highlights
- 1080P video at high frame rates
- Rolling shutter with MJPG/YUY2 support
- USB2.0 interface for easy integration
- Optimized for industrial and machine vision
| Item | Specification |
|---|---|
| Model | Signal XLS-GM966-V1.0 |
| Image Sensor Size | 1/2" inch |
| Effective Pixels | 1920 × 1080 |
| Pixel Size | 3.75 µm × 3.75 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG / YUY2 |
| Maximum Resolution & Frame Rates |
- 1920 × 1080 → MJPG: 60 FPS / YUY2: 5 FPS - 1280 × 960 → MJPG: 60 FPS / YUY2: 5 FPS - 1024 × 768 → MJPG: 60 FPS / YUY2: 10 FPS - 1280 × 720 → MJPG: 60 FPS / YUY2: 10 FPS - 800 × 600 → MJPG: 60 FPS / YUY2: 20 FPS - 640 × 480 → MJPG: 60 FPS / YUY2: 30 FPS - 320 × 240 → MJPG: 60 FPS / YUY2: 60 FPS |
| SNR (Max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Digital Interface | 1.25 mm / 5-pin USB2.0 cable, 1.5 m length |
| Transfer Rates | 480 MB/s |
| Power Requirements | 5V ±5% |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Storage Temperature | -40°C ~ 70°C |
| Operating Temperature | -30°C ~ 60°C |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Effective Focal Length (EFL) | 3.24 mm ±5% |
| F/NO (Aperture) | 2.2 ±5% |
| Field of View (FOV) | D: 103° ±3° |
| Optical Distortion | < -1% |
| Lens Construction | 4G2P + IR |
| Lens View (Default Lens) | M12 × P0.5 |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
