OV9281 CMOS Image Sensor Module 1/4 Inch 1280x800 120FPS High-Speed USB Camera for Industrial Vision
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1159-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD、negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Stable Temperature: | 0°C To 50°C | Dsp: | USB2.0 DSP |
|---|---|---|---|
| Data Storage: | Video, Pictures | Precision: | ≥5mil |
| Standard Configuration: | USB3.0 High Speed | Chip Type: | OV5648 |
| Image Resolution: | 640*480 | Image Sensor: | CMOS |
| Keywords: | IP Camera Module | Distortion: | ＜22% |
| Interface: | USB | Gpu: | Mali-T860 |
| Max Pixel Rate: | 28Mp/s | Snr: | ≥50db |
| Sensor Type: | CMOS | ||
| Highlight: | OV9281 CMOS image sensor module,1/4 inch USB camera module,high-speed industrial vision camera |
||
Product Description

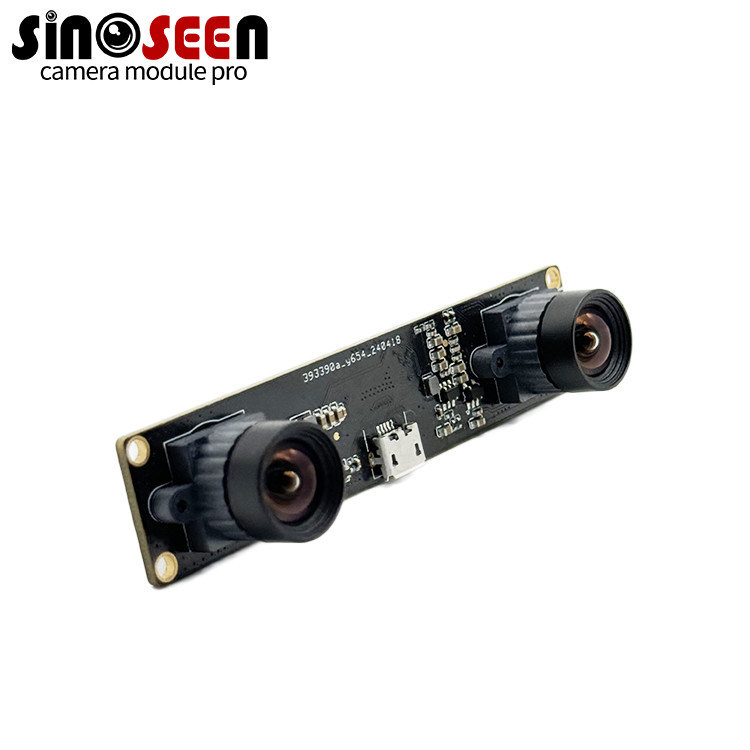

OV9281 CMOS Image Sensor Module
1/4 Inch 1280x800 120FPS High-Speed USB Camera for Industrial Vision
Product Overview
The Sinoseen OV9281 CMOS image sensor module features a 1/4-inch digital CMOS sensor that captures high-quality images at up to 120 frames per second. With a resolution of 1280*800 pixels, it ensures crisp, detailed imaging performance ideal for machine vision, robotics, and AI-based inspection systems.
Key Features
- 1/4" OV9281 CMOS sensor with 1280*800 resolution
- High-speed 120fps frame rate for smooth image capture
- Supports Raw Bayer 10-bit and MJPG/YUV output formats
- USB2.0 plug and play, compatible with multiple OS platforms
- Excellent low-light performance and wide dynamic range
- Compact design for industrial inspection, surveillance, and embedded AI devices
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Image Sensor Size | 1/4 inch | |
| Effective Pixels | 1280H*800V | |
| Pixel Size | 3 μm*3 μm | |
| Optical Distortion | <-1.2% | |
| Data Output | Raw Bayer 10bits | |
| Video Output | MJPG/YUV | |
| Frame Rates | Multiple resolutions at 120FPS/210FPS | Including 1280*800@120FPS, 640*480@210FPS |
| Digital Interface | USB2.0 | Cable length: 1.5m |
| Transfer Rate | 480MB/s | |
| Power Requirements | 5V±5% | |
| Operating Temperature | -10℃ to 60℃ | |
| Storage Temperature | -20℃ to 70℃ | |
| Supported OS | Windows XP/Vista/7/8.1/10, Mac, Android, Linux | UVC compliant |
| Lens Specification | M12*P0.5, 1G5P+650IR | F/2.4, EFL 2.6mm |
| Field of View | 83°±3° | Diagonal |
| Focus Range | 60cm to ∞ | Fixed focus |
