5MP VB1940 CMOS Camera Module 1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1133-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | 10-100USD、negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Sensor Type: | CMOS | Module Size: | Two Layers 38mmX38mm |
|---|---|---|---|
| Audio Input: | Channel Audio MIC Input | Standard Interface: | USB2.0 High Speed |
| Pixel Size: | 1.4µm X1.4µm | Coded Format: | H.265/H.264 |
| Power Consumption: | About 140mA | Object Distance: | 6CM-200CM |
| Driving Method: | Drive Free | F Number: | 2.2 |
| Operating Current: | 610mA(VGA) | Max Image Circle: | 4.8mm |
| Artwork: | 8-Layer Design | Warranty: | 10 Years |
| Compatibility: | Windows, Mac, Linux | ||
| Highlight: | 5MP USB camera module,VB1940 CMOS sensor camera,machine vision USB2.0 camera |
||
Product Description

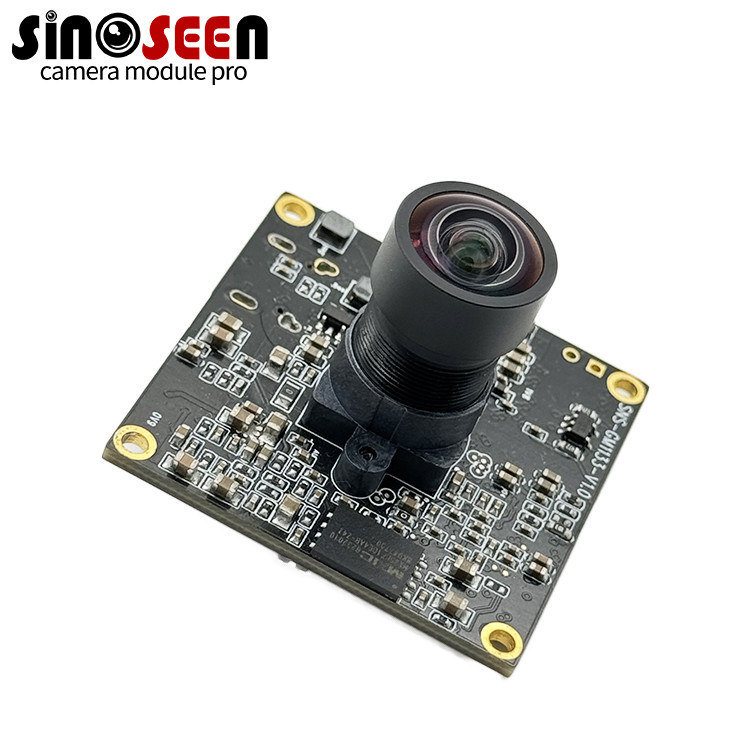

5MP VB1940 CMOS Camera Module
1/2.8 Inch USB2.0 Plug and Play High-Resolution Sensor for Machine Vision
Product Overview
The Sinoseen GM1133 camera module features an advanced 1/2.8" VB1940 CMOS image sensor, delivering sharp 5MP resolution (2592 * 1944) at up to 30 frames per second. With its high-speed USB2.0 interface, this plug-and-play module ensures smooth data transmission up to 480MB/s for seamless integration across various applications.
Key Features
- 1/2.8" VB1940 CMOS image sensor with 5MP resolution (2592 * 1944)
- USB2.0 high-speed interface for plug-and-play operation
- Supports MJPG and YUV video output formats
- Excellent low-light performance and color accuracy
- Compact design for easy system integration
- Compatible with Windows, Linux, Mac, and Android systems
Technical Specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Image Sensor Size | 1/2.8 inch | |
| Effective Pixels | 2592H * 1944V | |
| Pixel Size | 2.0 μm * 2.0 μm | |
| Optical Distortion | <0.45% | |
| Image Sensor Data Output | Raw Bayer 10bits | |
| Video Output | MJPG/YUV | |
| Maximum Frame Rates | 2592 * 1944 @30 FPS 1920 * 1080 @30 FPS 1600 * 1200 @30 FPS |
MJPG |
| Digital Interface | Type-C USB2.0 | 1.5m cable |
| Transfer Rates | 480MB/s | |
| Power Requirements | 5V ±5% | |
| Storage Temperature | -20℃ to 70℃ | |
| Operating Temperature | -10℃ to 60℃ | |
| Supported OS | Windows XP/Vista/7/8.1/10, Mac, Android, Linux 2.6.2 (UVC compliant) | |
| Lens View | M12 * P0.5 | |
| Lens Construction | 3G2P + 650IR | |
| F/NO Aperture | 3.0 ±5% | |
| Effective Focal Length | 4.18 mm ±5% | |
| Field of View | 82° ±3° | |
| Focus Type | Fixed focus | |
| Shooting Distance | 60cm - ∞ |
Applications
Ideal for video conferencing, industrial inspection, surveillance systems, and educational applications. The module's stable performance and customizable image settings make it perfect for developers and engineers requiring high-quality imaging solutions.
