8MP USB2.0 Camera Module with Sony IMX179 | Compact HD Imaging for Smart Devices
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-8MP-IMX179-bbx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 8mp Camera Module | Sensor: | 1/3.2'' IMX179 |
|---|---|---|---|
| Resolution: | 8MP3264(H) X 2448(V) | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4K |
| Highlight: | 8MP USB camera module,Sony IMX179 camera module,compact HD USB camera |
||
Product Description
8MP USB2.0 Camera Module with Sony IMX179 | Compact HD Imaging for Smart Devices
Product Description

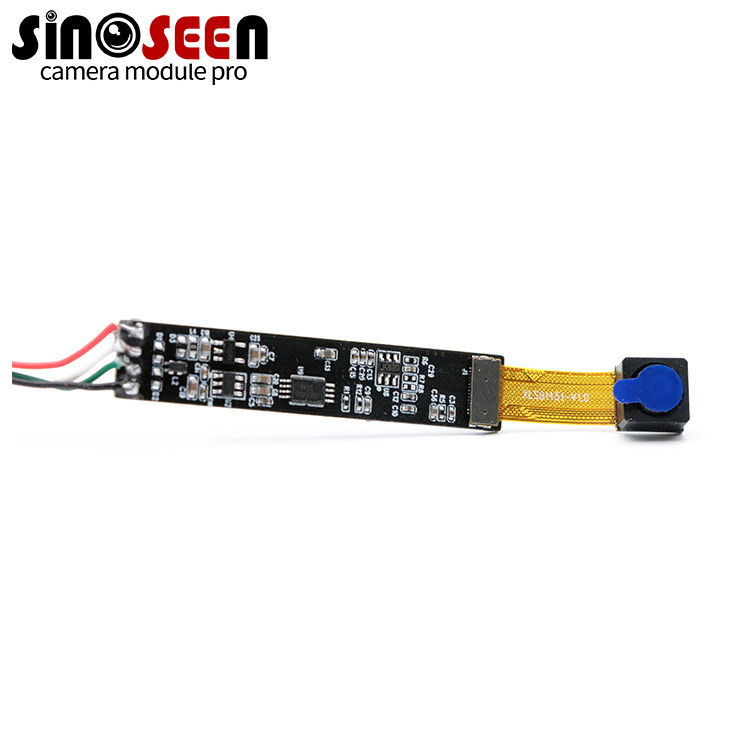

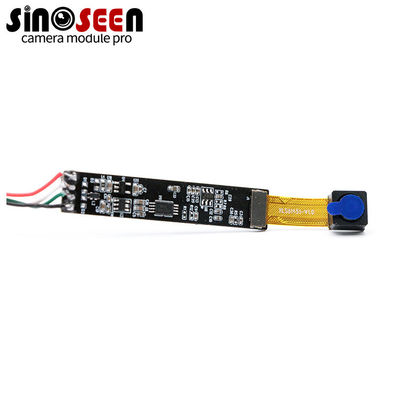

The Sinoseen 8MP USB2.0 camera module combines a Sony IMX179 CMOS sensor with a compact, efficient design to deliver HD video capture at 15fps. Its 3264 *2448 resolution ensures detailed, smooth images, while the USB2.0 interface provides stable and fast data transmission for real-time applications.
Engineered for low power consumption and strong light sensitivity, this camera performs reliably in a variety of lighting conditions. It supports MJPG and YUY2 output formats and allows flexible image tuning, including exposure, brightness, and color adjustment, making it suitable for both industrial and consumer-grade projects.
Compatible with Windows, Linux, macOS, and Android, this 8MP camera module easily integrates into devices such as industrial testers, tablets, smart terminals, and educational displays. Its fixed-focus lens and built-in microphone make it a complete imaging component for modern embedded systems.
Highlights
- Sony IMX179 8MP sensor with 3264*2448 image output
- 15fps performance for clear, smooth video capture
- Low power design with high low-light sensitivity
- USB2.0 plug-and-play interface, UVC compatible
Specification
| Model No | SNS-8MP-IMX179-bbx |
|---|---|
| Sensor | 1/3.2'' IMX179 |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3264(H) x 2448(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Compression format | MJPG / YUY2 |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 60dB |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm Lens Size: 1/3 inch FOV: 95° (Optional) Thread Size: M12*P0.5 |
| Audio frequency | Support |
| microphone | Built-in |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Not Supported |
| Dimension | 90MM x 15MM (customizable) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
