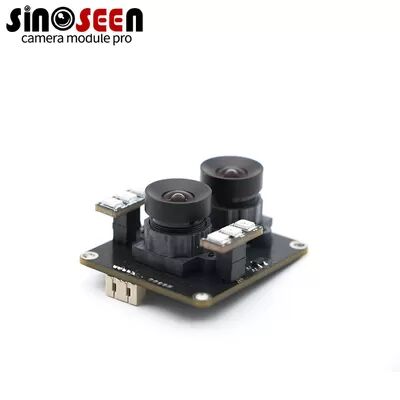

GC2083 Camera Module 2MP MIPI
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SM1118-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | 10-100/negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/3’GC2083 CMOS |
|---|---|---|---|
| Resolution: | H1920*V1080 | Dimensions: | (customizable) |
| Pixel Size: | 2.7um X2.7um | Focus Type: | Fixed Focus |
| Interface: | USB | Feature: | HD |
| Highlight: | GC2083 2MP MIPI camera module,dual lens MIPI camera module,2MP camera module with warranty |
||
Product Description
GC2083 Camera Module: Reliable 2MP Imaging for Embedded B2B Applications
The GC2083 Camera Module from Sinoseen utilizes the GalaxyCore GC2083 CMOS sensor to provide 2MP (1920x1080) resolution at 30fps, featuring a compact 1/3-inch optical format and 2.7μm pixel size for sharp, low-noise imaging in constrained spaces. Supporting MIPI, DVP, and USB interfaces with UVC compliance, this module delivers a 74 dB dynamic range for balanced exposure in varied lighting, making it suitable for real-time video applications.
Key Advantages
- High Dynamic Range Performance: 74 dB range handles extreme lighting contrasts, reducing overexposure by 20% in mixed scenes, essential for low-light monitoring setups.
- Compact Pixel Efficiency: 2.7μm pixels enable detailed capture in a 1/3-inch format, ideal for space-limited designs.
- Versatile Interface Support: MIPI/DVP/USB options facilitate broad compatibility, accelerating integration for surveillance applications.
- Low Power Optimization: Under 150mW at full resolution promotes extended runtime, supporting portable IoT devices.
- Robust Low-Light Capability: Effective down to 0.5 lux, it minimizes noise for reliable night use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor | GalaxyCore GC2083 CMOS (1/3" format) |
| Resolution | 2MP (1920x1080) |
| Frame Rate | 1080p@30fps |
| Pixel Size | 2.7μm x 2.7μm |
| Dynamic Range | 74 dB |
| Interface | MIPI/DVP/USB (UVC compliant) |
| Lens FOV | 70°-90° (fixed focus, optional) |
| Dimensions | 25x24mm (customizable) |
| Power Consumption | <150mW (full resolution) |
| Operating Temperature | -20°C to 70°C |
Application Fields
- Surveillance Systems: Compact, high-clarity monitoring for homes and businesses
- Embedded IoT Devices: Real-time video in smart sensors and industrial applications
- Low-Light Security: Nighttime asset protection with minimal noise
- USB Video Conferencing: Reliable PC-based communication solutions
- Portable Prototyping: Development support for Raspberry Pi and embedded projects
About Sinoseen
Sinoseen, a leading China GC2083 camera module manufacturer with over ten years of experience, provides comprehensive visual solutions to global B2B clients. We specialize in OEM/ODM for USB, MIPI, and DVP camera modules, backed by our professional technical team offering one-stop services from design to manufacturing.
Customization Process
- Needs Evaluation: Assess requirements for 2MP GC2083 camera module interfaces
- Prototype Development: Engineer samples in 2-4 weeks
- Performance Testing: Verify dynamic range and low-light capabilities
- Production Scaling: Manufacture wholesale volumes with quality control
- Integration Assistance: Deliver SDKs for customized camera modules
Total Cost of Ownership Comparison
| Aspect | Sinoseen GC2083 Module | Generic Module |
|---|---|---|
| Integration Time | Low (UVC/MIPI) | High (driver setup) |
| Maintenance Needs | Minimal (durable sensor) | Frequent (noise calibration) |
| Power Draw | Efficient (<150mW) | Higher (200mW+) |
| Customization | High (OEM/ODM) | Limited |
| 3-Year TCO | 15-25% lower | Higher from issues |
Compliance and Supply Chain Security
Sinoseen's GC2083 camera module complies with RoHS for environmental safety and CE for EMC, ensuring B2B regulatory fit. Supply chain security uses ISO 9001 with traceability and Asian multi-sourcing to avoid disruptions.
Production Risk Management
| Risk Factor | Probability | Impact | Mitigation |
|---|---|---|---|
| Sensor Shortage | Low | Medium | Diversified vendors |
| Quality Variance | Low | High | Pre-shipment tests |
| Logistics | Medium | Low | Air/sea routes |
Performance KPIs: 98% on-time delivery (7-14 days from China to overseas), <1.5% returns, 24/7 support under 6 hours.
Frequently Asked Questions
What resolution does a 2MP GC2083 camera module support?
Full 1920x1080 at 30fps with 74dB dynamic range for clear B2B imaging.
Is a GC2083 MIPI camera module low-light capable?
Yes, effective at 0.5 lux with minimal noise, ideal for surveillance applications.
Can a GC2083 USB camera module be customized?
Absolutely, OEM/ODM available for lenses and FOV customization.
What volumes are available for wholesale GC2083 camera modules?
From 500 units; scalable with 4-6 week lead times for B2B orders.
Does a low light GC2083 camera module fit embedded use?
Yes, low power consumption <150mW and operating temperature range of -20°C to 70°C makes it perfect for IoT applications.
Industry Challenges and Solutions
Lighting Variance
74dB dynamic range in low light GC2083 camera module balances exposures effectively.
Interface Issues
MIPI/USB interface options ensure broad compatibility across systems.
Power Drain
<150mW power consumption in 2MP GC2083 camera module supports portable applications.
Customization Time
OEM services enable customized GC2083 camera module development in weeks.
Delivery Delays
7-14 day delivery from China for wholesale GC2083 camera module orders.
Technical Notes
CMOS: Complementary Metal-Oxide-Semiconductor, a technology for efficient image sensors with high pixel density.
