OV2710 Sensor Wifi Ip Camera Module Infrared IR CUT 2MP 1080p
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OV2710-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Omnivision OV2710 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | 19mmx55mm(customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Night Vision |
| High Light: | 2MP Wifi Ip Camera Module,RoHS Wifi Ip Camera Module,2MP Ip Camera Module |
||
Product Description

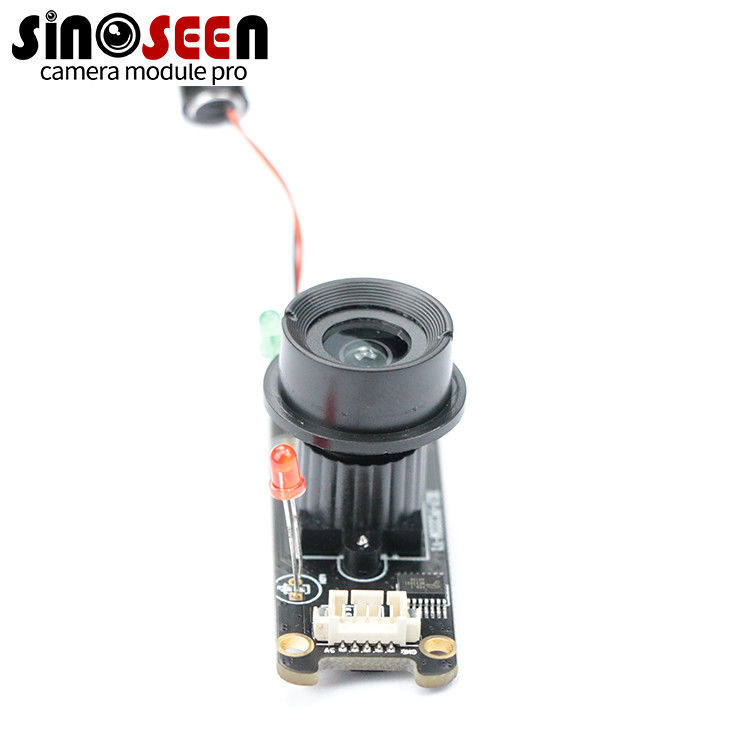

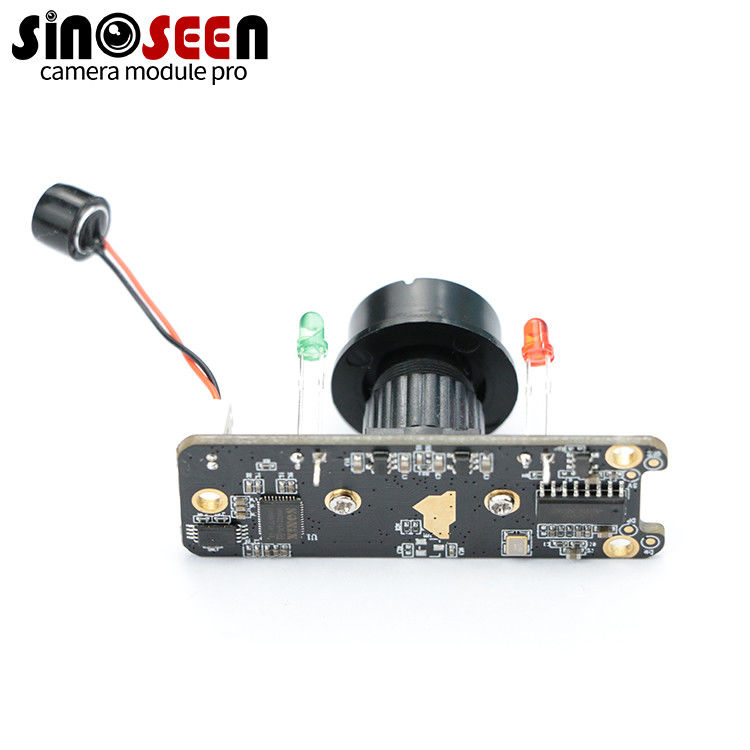

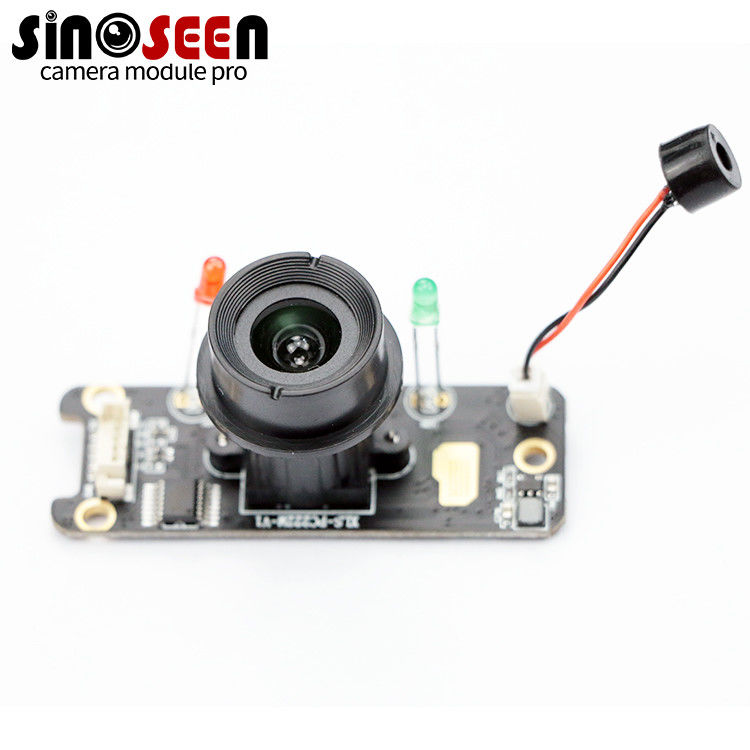

OV2710 Sensor Wifi Ip Camera Module Infrared IR CUT 2MP 1080p
Day and Night vision infrared IR CUT 2MP 1080p USB Camera Module with OV2710 CMOS sensor
Wifi Ip Camera Module
This is one of our best selling day&night vision USB camera modules, it works well both in day time (good light conditions) and in night time (poor light conditions). When in day time, LED lights turn off and the camera takes color images; when in night time, LED lights turn on automatically and takes black/white images, the whole process is automatic, you don't need to do anything else.
Wifi Ip Camera Module is 2MP resolution (1920x1080) with Omnivision OV2710 CMOS sensor, which delivers low-light sensitivity of 3700mV/lux-sec, S/N ratio of 40 dB, and a peak dynamic range of 69 dB, enable cameras to operate in virtually every lighting condition from bright daylight to nearly complete darkness below 15 lux.
|
Model No |
SNS-2MP-OV2710-V1.0 |
|
Sensor |
1/2.7’’ Omnivision OV2710 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5856µm x 3276µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 80° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
55MM x 19MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
