1080p 60fps 2MP Industrial Night Vision Camera Module High Dynamic Range
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM032M-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.7" Himax HM2131 CMOS |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | 38mmx38mm(customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | High Dynamic Range |
| Highlight: | 60fps 2MP Night Vision Camera Module,HM2131 Night Vision Camera Module,HM2131 industrial camera module |
||
Product Description
1080p 60fps 2MP Industrial Night Vision Camera Module High Dynamic Range
HDR Night Vision 1080p 60fps 2MP Industrial USB Camera Module with Himax HM2131 sensor

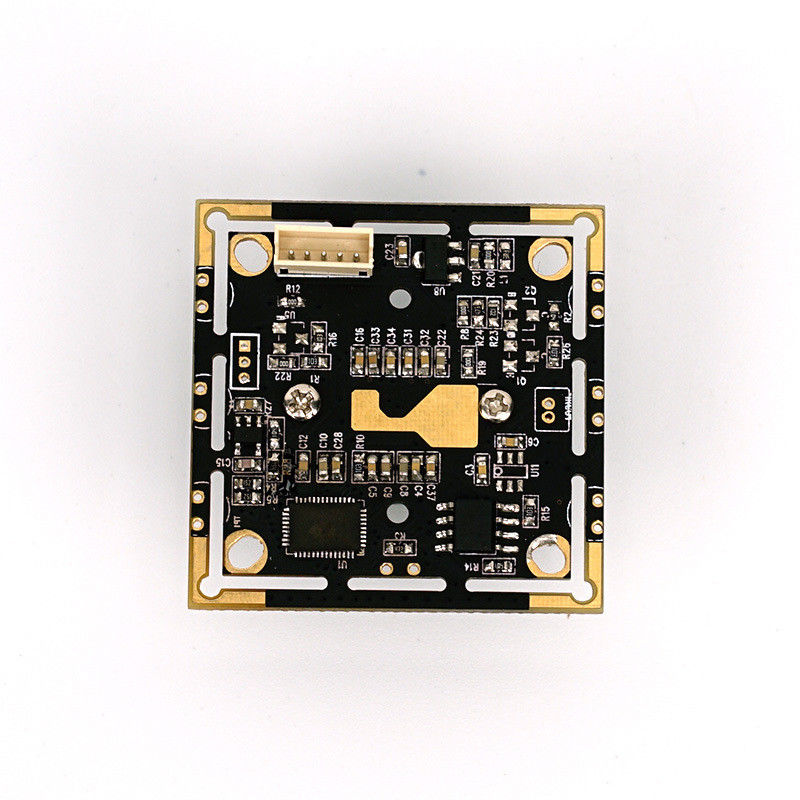

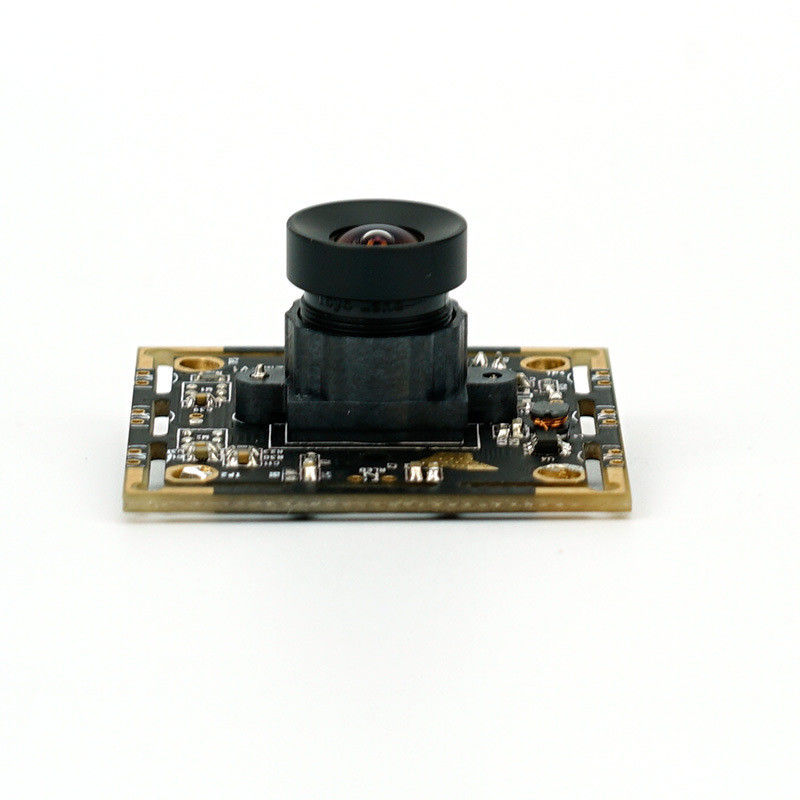

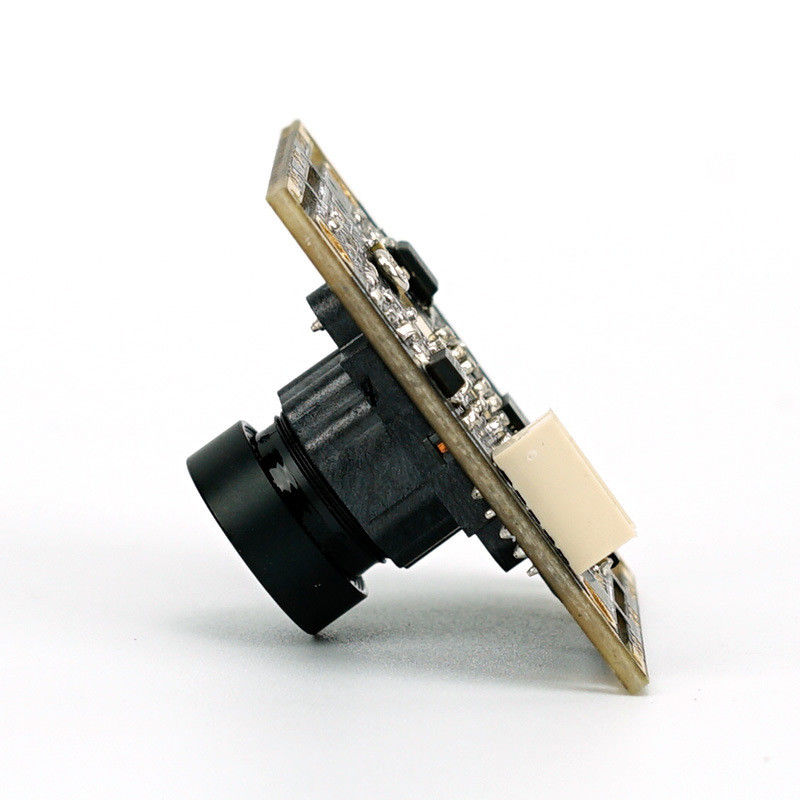

2MP 1080P USB2.0 camera module
This is a Full HD 2MP 1080P USB2.0 camera module with HM2131 sensor from Himax,almost the best 2MP sensor in current market.The image quality is very good,many of our customers choose this sensor for their Webcam projects.Of course,you can also use for many other applications and customize your own module size and lens according to your actual needs.
It supports the below Resolution & Frame rate
MJPG:
1920x1080@30FPS; 1280x720@30FPS; 1024x768@30FPS; 848x480@30FPS; 800x600@30FPS; 640x480@30FPS;
YUY2:
1920x1080@5FPS; 1280x720@10FPS; 1024x768@10FPS; 848x480@20FPS; 800x600@20FPS; 640x480@30FPS;
Specification
|
Model No |
SNS-GM032M-V1.0 |
|
Sensor |
1/2.7’’ Himax HM2131 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Protocol & Connection |
Plug-&-Play (UVC compliant) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Output Format |
10b / 12b RAW |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38.9dB |
|
CRA |
12° |
|
Sensitivity |
4600mV / Lux – sec |
|
Interface type |
USB2.0 |
|
Lens FOV |
90° |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Microphone |
Not supported |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MM x 38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default 40CM |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
