Metal Housing LED USB Car Camera Module 2MP Waterproof Night Vision
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-GM872M-V1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/2.7" Omnivision OV2735 |
---|---|---|---|
Resolution: | 2MP 1920(H)X1080(V) | Dimensions: | Customizable |
Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | Waterproof |
High Light: | OV2735 2MP Car Camera Module,USB OV2735 Car Camera Module,2MP OV2735 Car Camera |
Product Description
Metal Housing LED USB Car Camera Module 2MP Waterproof Night Vision
Night Vision In Car USB Camera Module With LEDs In Waterproof Metal Housing

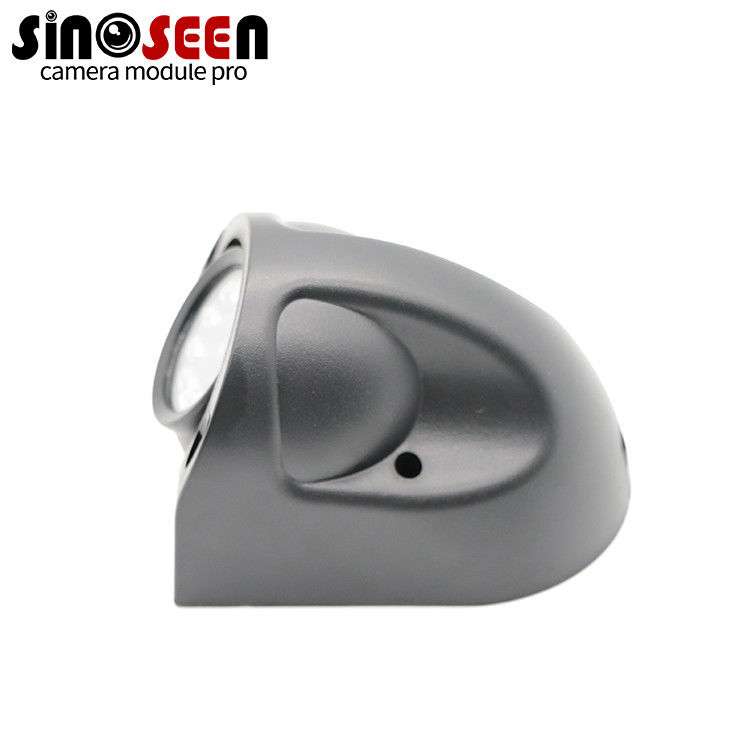

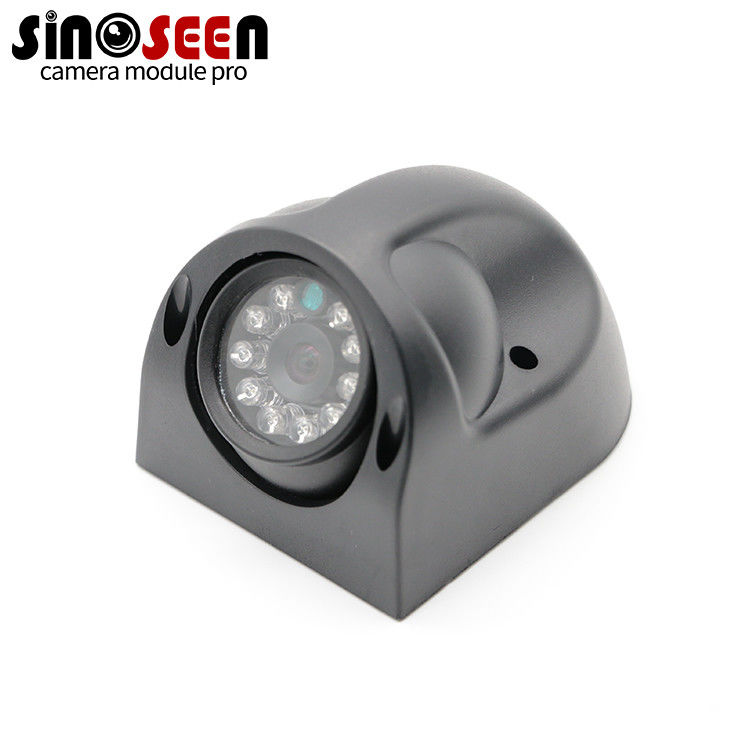

This mouse-like thing is actually a car camera, which uses an aluminum alloy and glass panel design and is waterproof.
The chip is OV2735 from OVT, 2MP, which can output 1920x1080. The picture quality is clear and stable. Like most other car cameras, its lens is also filled with a large number of LED lights to fill in the light.
The interface of this module is USB2.0, no driver is needed, plug and play, and the cable length can be customized according to actual needs.
Specification
Module No | SNS-GM872M-V1 |
Pixel Size | 3.0μm x 3.0μm |
Effective Pixels | 1920(H)X1080(V) |
Video output | YUV2 MJPG |
Active Array Size Video Rate | 1080p@30FPS |
Image Sensor | 1/2.7" OV2735 |
SNR max | TBDdB |
Dynamic range | TBDdB |
OTG | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
Lens view | FOV95°(optional),F/N(optional) |
Interface | USB BUS POWER 5P-1.25mm |
Operating Voltage | DC5V |
Operating Current | MAX120MMA |
Operating temperature | 0~60℃ |
Storage temperature | -20~70℃ |
Cable length | Defualt |
OS |
WinXP/Vista/Win7/Win8 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
