Metal Shell 1MP Night Vision Camera Module USB For Vehicle Surveillance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-OV9712-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" OV9712 |
|---|---|---|---|
| Resolution: | 1MP 1280(H)X800(V) | Dimensions: | 49MMx19.5MM(customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| High Light: | ODM Night Vision Camera Module,1MP ov9712 Night Vision Camera Module,1MP ov9712 camera module |
||
Product Description

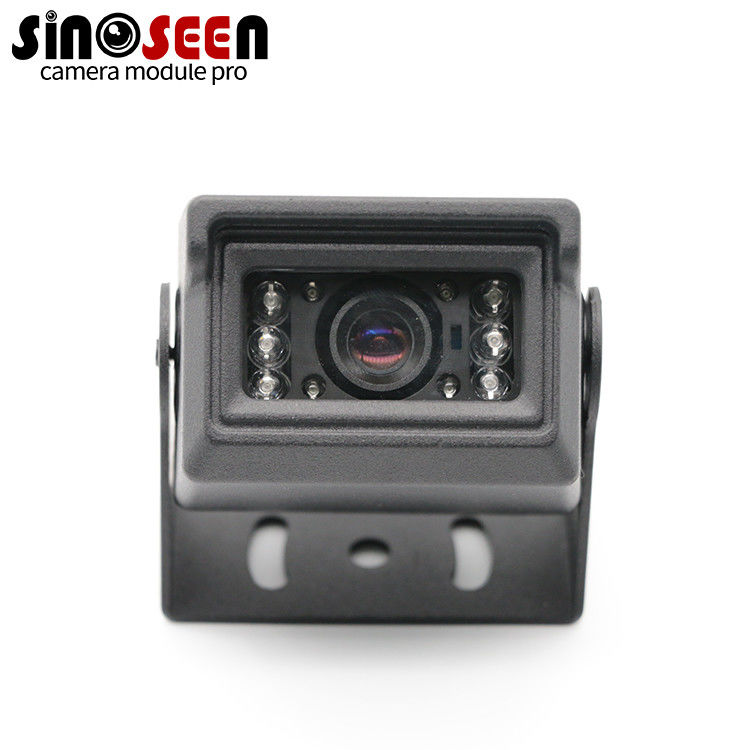

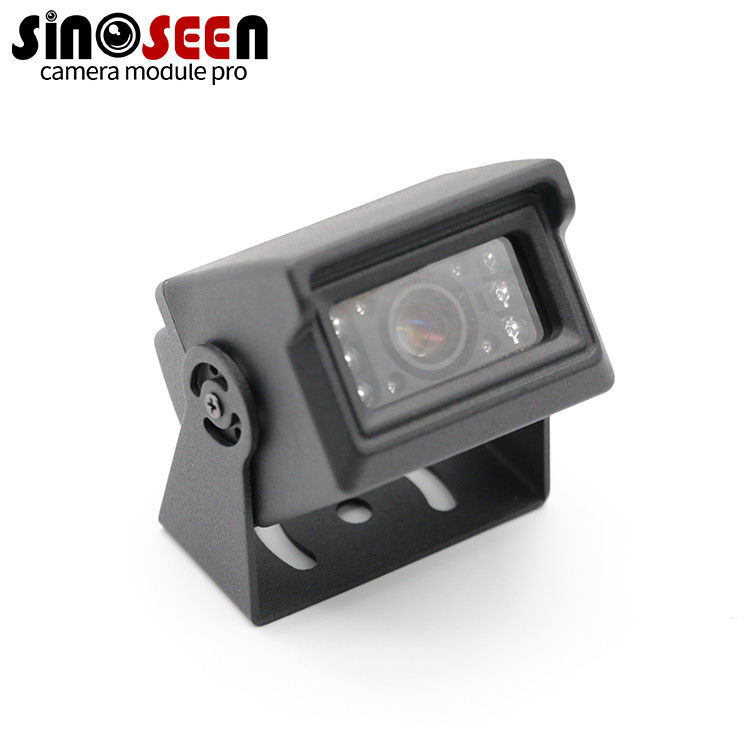

Metal Shell 1MP Night Vision Camera Module USB For Vehicle Surveillance
1MP Night Vision Vehicle Surveillance Recording USB Camera Module With Metal Shell And Fill In Lights
Night Vision Camera Module
This is one of our many car camera modules. Its appearance and structure are similar to other models, mainly due to the difference in chip function and lens angle.
The camera has a resolution of 1280x720, uses a 1/4-inch Omnivision OV9712 CMOS sensor, and has a low sensitivity of 3700mV/lux-sec. It can provide vivid images in almost any lighting conditions (from bright daylight to almost complete darkness).
Specification
|
Model No |
SNS-1MP-OV9712-H1 |
|
Sensor |
1/4’’ Omnivision OV9712 Sensor |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3888µm x 2430µm |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
40dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700mV / lux-sec |
|
CRA (chief ray angle) |
25° |
|
Interface type |
USB2.0 |
|
Lens FOV |
100° |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
