Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-USB720P01-V1.0

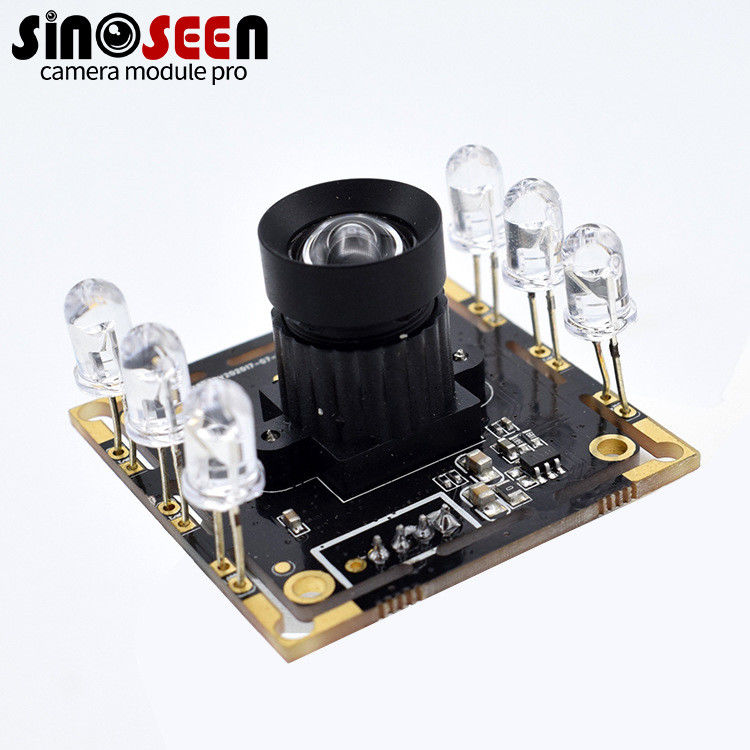

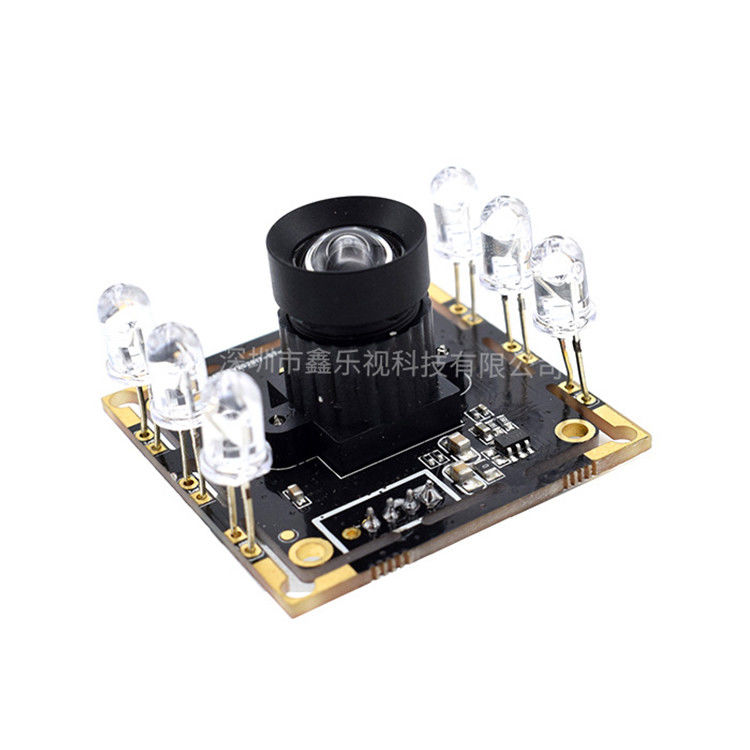

IR CUT 1MP 720P Machine Vision Camera Module Infrared Fill Light
Night vision IR CUT 1MP 720P USB Camera Module with AR0140 Infrared Fill Light
USB camera module
This is a night vision USB2.0 camera module made with AR0140 from ON Semiconductor,It has 6 LEDs that make it can also see clearly in bad light condition or in the night.The ON Semiconductor AR0140AT is a 1/4-inch CMOS digital image sensor with an active-pixel array of 1280Hx800V. It captures images in either linear or high dynamic range modes, with a rolling-shutter readout. It includes sophisticated camera functions such as in pixel binning, windowing and both video and single frame modes. It is designed for both low light and high dynamic range scene performance.
Applications
• Video surveillance
• Stereo vision
• Automotive scene viewing
• 720p60 video applications
• High dynamic range imaging
Specification
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
HD 1280(H)X800(V) |
|
Image Sensor |
1/3" AR0140 |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV80°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 4P-2.0mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
38*38mm |
|
Cable Length |
1m/1.5m |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera Module Application Areas
Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
video
video
Send your inquiry directly to us
