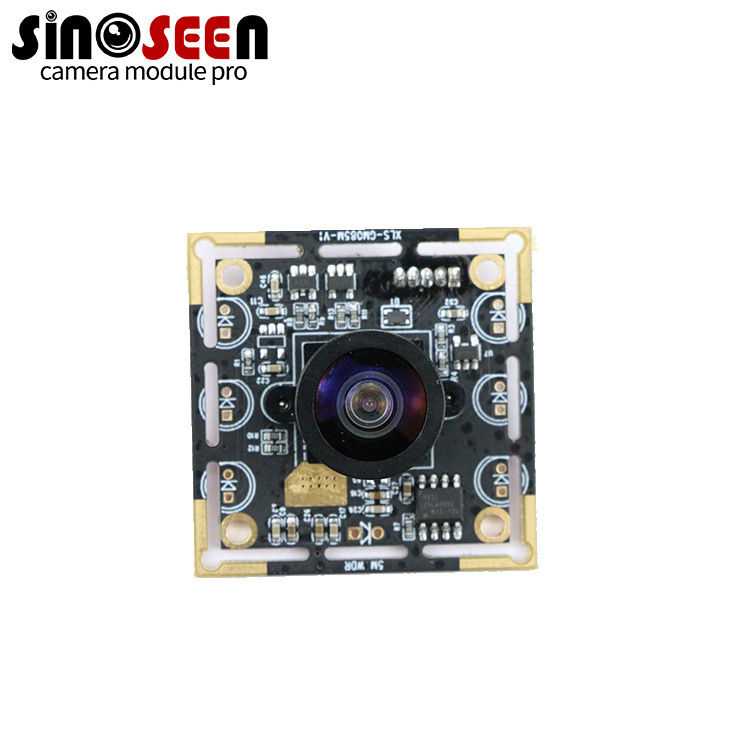

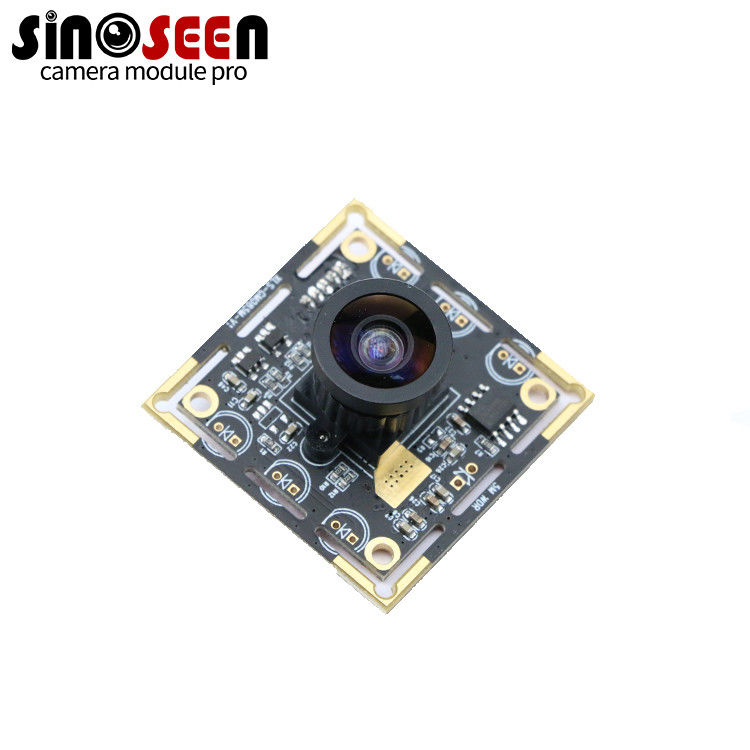

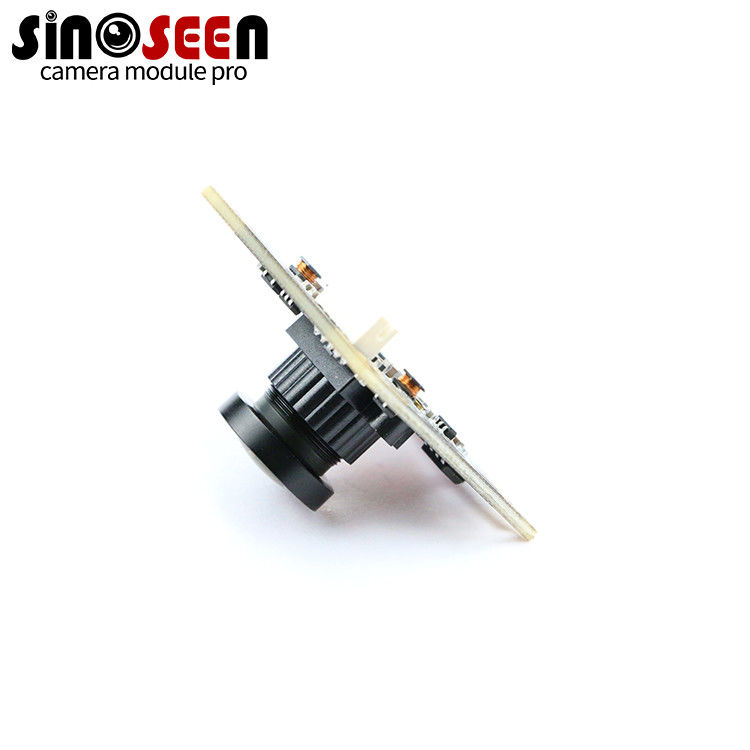

SONY IMX335 Sensor Night Vision Camera Module For Raspberry Pi
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-5MP-IMX335-S1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.8" SONY IMX335 CMOS |
|---|---|---|---|
| Resolution: | 5MP 2592(H) X 1944(V) | Dimensions: | 38mmx38mm(customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Starvis |
| High Light: | IMX335 CMOS Night Vision Camera Module,72dB Night Vision Camera Module,IMX335 infrared camera module |
||
Product Description
Night Vision HDR Low Illumination 5MP USB Camera Module With SONY STARVIS IMX335 Sensor
Night Vision Camera Module
This is our newly developed starlight-level camera module. It uses a SONY STARVIS IMX335 CMOS sensor with a resolution of 5MP, and the image quality is very high and stable.
The dynamic range is as high as 72 dB, and the advanced HDR function and digital overlay HDR function further improve the image quality and contrast, allowing for more detailed image analysis. These features, combined with low dark current performance and no tailing, further improve the performance in applications where both light and dark areas are viewed at the same time.
Such night vision HDR camera modules with IMX335 starvis sensor are widely used in many applications, such as security, surveillance, closed-circuit television, industrial automation, automobiles, factory automation, surveillance, access control, artificial intelligence (AI), machine vision, robotics, robotics, computer vision, agriculture, education , 3D, inspection, vision system, imaging, etc.
Specification
|
Model No
|
SNS-5MP-IMX335-S1
|
|
Sensor
|
1/2.8’’ SONY IMX335 CMOS
|
|
Pixel
|
5 Mega Pixel
|
|
Most effective pixels
|
2592(H) x 1944(V)
|
|
Pixel Size
|
2.0µm x 2.0µm
|
|
Chroma
|
Color
|
|
Compression format
|
MJPEG / YUV2 (YUYV)
|
|
Resolution & Frame rate
|
See above
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Focus type
|
Fixed focus
|
|
Microphone
|
Built-in
|
|
Dynamic range
|
72dB
|
|
Sensitivity
|
>= 2000mV
|
|
Interface type
|
USB2.0 high speed
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure |
|
Lens
|
Focal length: 3.6MM
|
|
|
Lens Size: 1/2.8 inch
|
|
|
FOV: 90°
|
|
|
Thread Size: M12*P0.5
|
|
Audio frequency
|
Optional
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, 150mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Support
|
|
Dimension
|
38mm*38mm (compatible with 32mm*32mm)
|
|
Storage temperature
|
-20°C to 70°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
