Metal Waterproof Case USB Car Security Camera Module 1MP With Bracket

Metal Waterproof Case USB Car Security Camera Module 1MP With Bracket

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-1MP-H62-H2

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" SOI JX-H62
Resolution: 1MP 1296 (H) X 732 (V) Dimensions: Customizable
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Waterproof
High Light:

1MP Car Security Camera Module

,

JX-H62 Car Security Camera Module

,

1MP Car USB camera module

Product Description

Metal Waterproof Case USB Car Security Camera Module 1MP With Bracket

USB Car Surveillance Recording Camera Module With Bracket Metal Waterproof Case



USB Camera Module

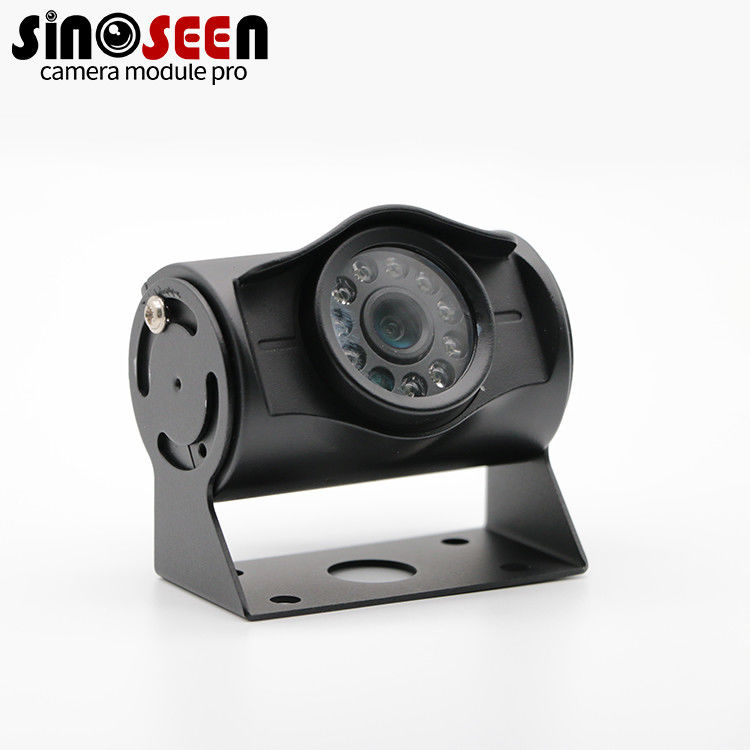

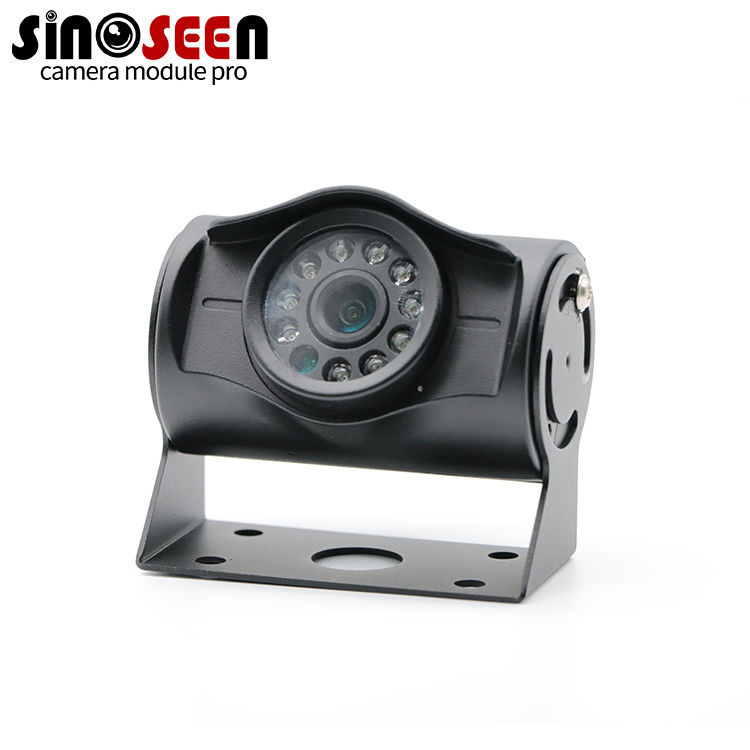

This is a 1MP USB car surveillance recording camera with a bracket metal waterproof case. The image sensor is H62, which is economical and effective. The angle of the bracket can be adjusted, and it can be turned up to 180°, which is very convenient.
The shell is designed with all-aluminum alloy and transparent glass panel, and waterproof rubber gasket is used for waterproof treatment, even if it is used outside the car, don’t worry about it.





Specification

Model No

SNS-1MP-H62-H2

Sensor

1/4’’ SOI JX-H62

Pixel

1 Mega Pixel

Most effective pixels

1296 (H) x 732 (V)

Pixel Size

3.0µm x 3.0µm

Resolution

1280x720; 640x480; 320x240;

Frame Rate

30fps

Compression format

MJPEG / YUV2 (YUYV)

Shutter Type

Electronic rolling shutter

Sensitivity

4300 mV/lux-sec

Focus type

Fixed focus/Manually adjustable

S/N ratio

37dB

Dynamic range

72dB

Interface type

USB 2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 1.7mm

Lens size: 1/2.5’’

FOV: 100°

Thread size: M12*P0.5

Power consumption

DC5V, 100mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Operating temperature

-30°C to 85°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



Metal Waterproof Case USB Car Security Camera Module 1MP With Bracket 0Metal Waterproof Case USB Car Security Camera Module 1MP With Bracket 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Camera module customization process





1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.



2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
