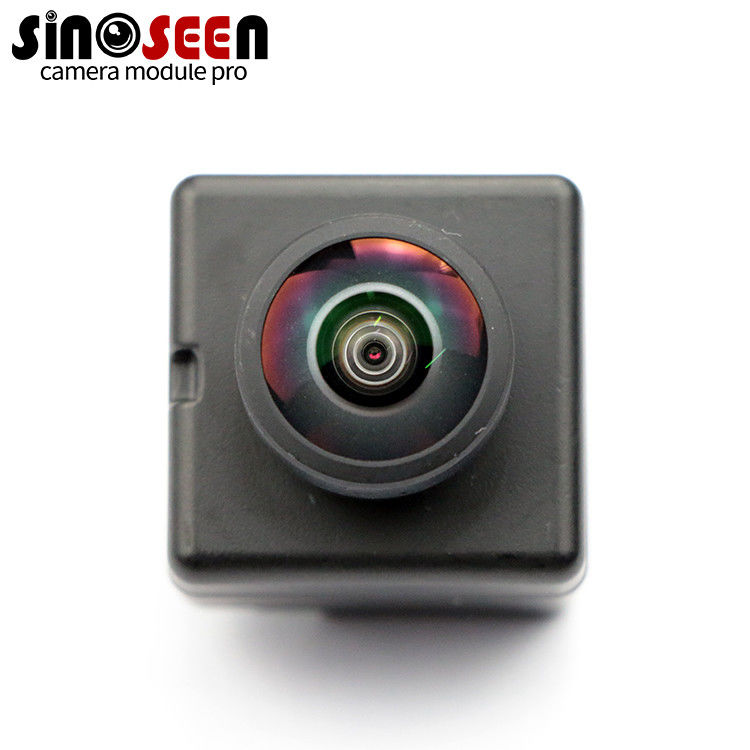

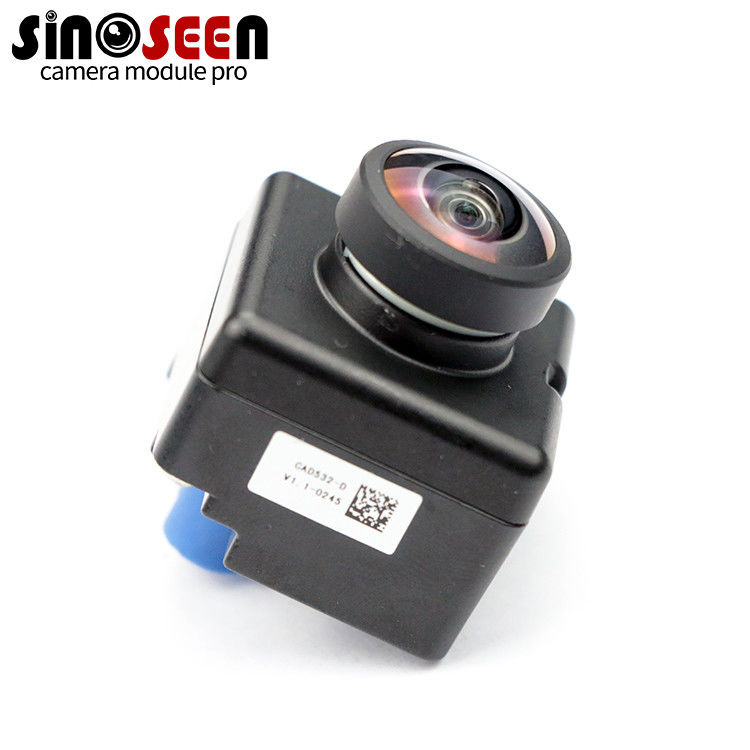

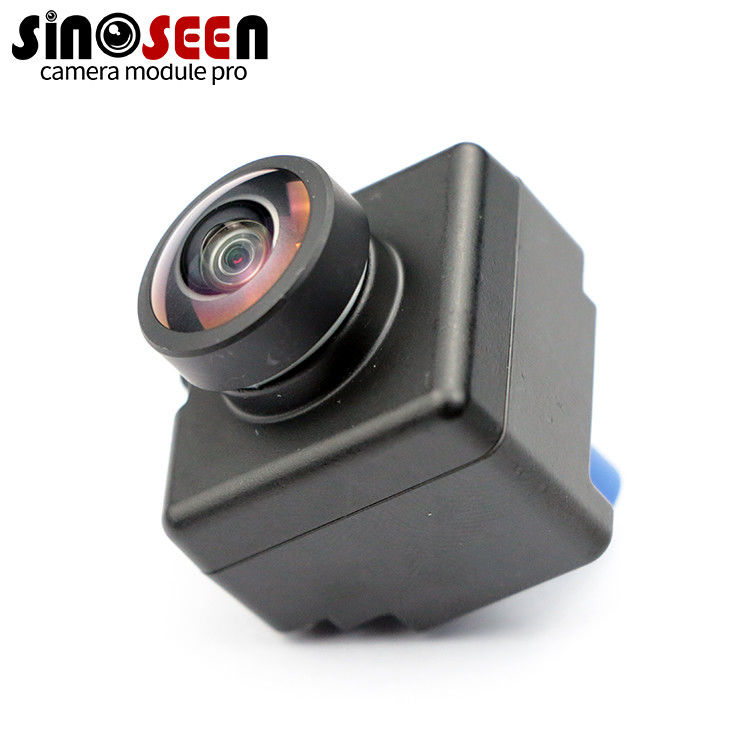

CUT HDR USB 2.0 Raspberry Pi Infrared Camera Module Fixed Focus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-AR0230-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.7" Aptina AR0230 CMOS |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | 25x25mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Night Vision |
| High Light: | AR0230 Raspberry Pi Infrared Camera Module,2mp Raspberry Pi Infrared Camera Module,AR0230 noir camera module |
||
Product Description
CUT HDR USB 2.0 Raspberry Pi Infrared Camera Module Fixed Focus
OEM 2MP Day And Night Vision IR CUT HDR USB 2.0 Camera Module With AR0230 Sensor
USB camera module
This is one of our newly developed day and night vision USB2.0 camera modules. Its resolution is 2MP (1920X1080), equipped with APTINA AR0230 CMOS sensor, and the image quality is very stable. The camera can be operated day and night. The lens has 650nm and 850nm infrared cut filters. During the daytime when there is sufficient light, it can take color images; at night or under low light conditions, the built-in light sensing IC will send a signal so that the LED will automatically turn on and take black and white images.
Another advantage of this camera is that its dynamic range is up to 105dB, which can be used in many applications, such as facial recognition, face detection, security, surveillance, robotics, medical, agricultural technology, industrial automation, automotive, biometric technology, machine vision and computers Vision, smart machines, information kiosks, vending machines, strong light/low light conditions, window/entrance monitoring, etc.
Specification
|
Model No |
SNS-2MP-AR0230-H1 |
|
Sensor |
1/2.7’’ Aptina AR0230 CMOS |
|
Resolution |
2 Mega Pixel |
|
Most effective pixels |
1920 X 1080 |
|
Pixel Size |
3.0μm X 3.0μm |
|
Resolution & frame rate |
See above |
|
Compression format |
YUY2/MJPG |
|
IR Cut filter |
650nm & 850nm |
|
Shutter Type |
Electronic rolling shutter |
|
Lens FOV |
90° and customizable |
|
Lens mount |
M12*P0.5 |
|
Input clock frequency |
6-48MHz |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
41dB |
|
Dynamic range |
UP to 96dB |
|
Dark current |
<10mA |
|
Interface type |
USB2.0 |
|
Microphone |
Supported |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 300mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Automatic Exposure Control (AEC) |
Support |
|
Automatic White Balance (AEB) |
Support |
|
Automatic Gain Control (AGC) |
Support |
|
Dimension |
25MM X 25MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB Wire |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
