1mp 720p HD Small Usb OV9712 Camera Module Drive Free For Car DVR
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-USB720P97-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" OV9712 |
|---|---|---|---|
| Resolution: | 1MP HD 1280(H)X800(V) | Dimensions: | 41.5*30mm(customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Low Cost |
| High Light: | HD OV9712 Camera Module,1.3mp OV9712 Camera Module,ov9712 camera |
||
Product Description

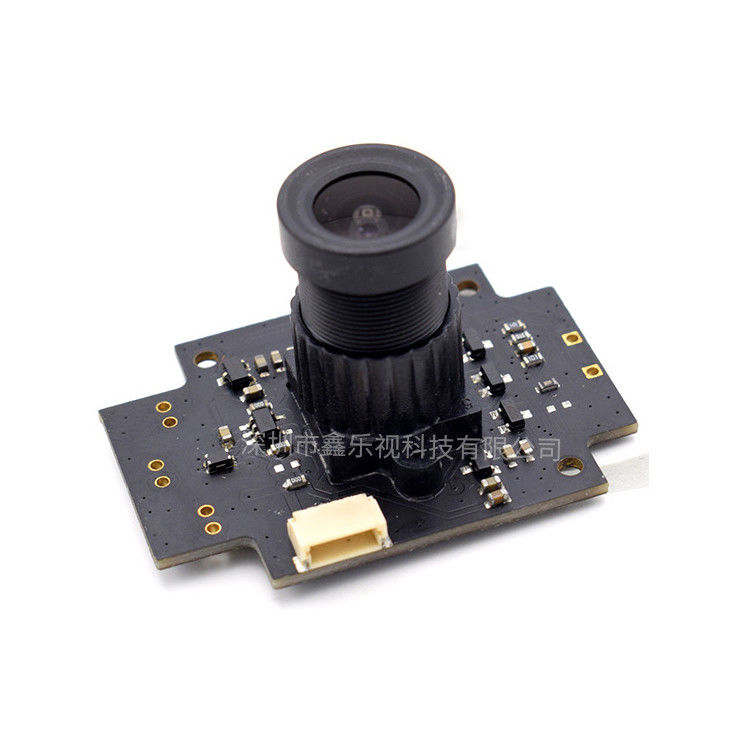

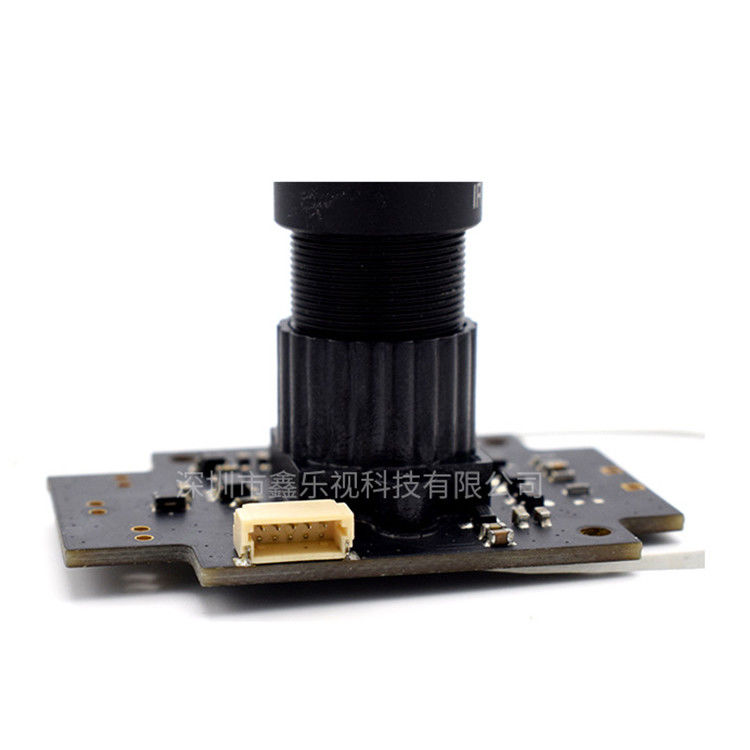

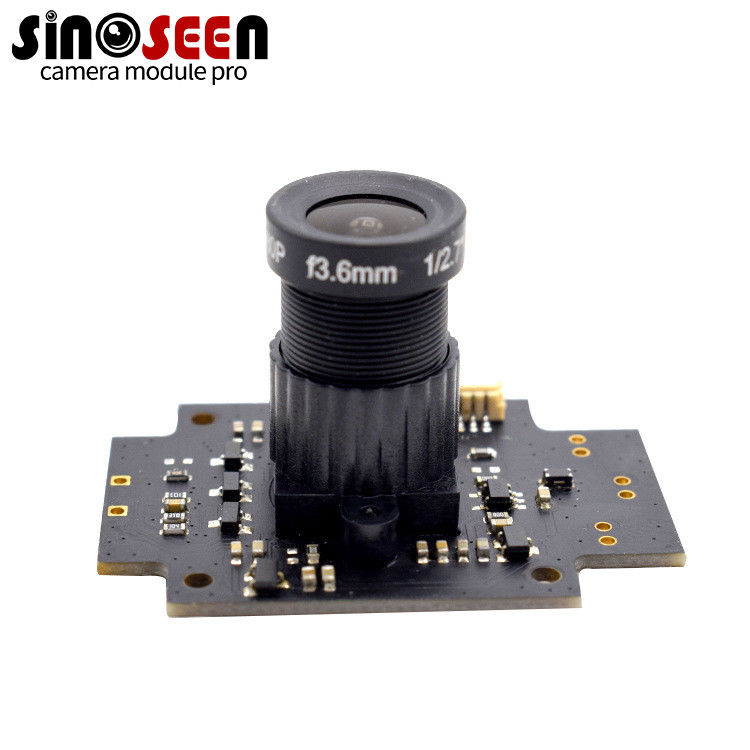

Sinoseen factory price OV9712 cmos 1.3mp 720p HD drive free small usb camera module
Applications
#Security #Car DVR #Notebooks #Telepresence #Mobile Phones #Digital Still Cameras #Webcams #Medical Entertainment
Product features
high sensitivity for low-light operation ultra low power and low cost automatic image control functions: - automatic exposure control (AEC) - automatic gain control (AGC) - automatic white balance (AWB) - automatic band filter(ABF) - automatic black level calibration (ABLC)
|
Pixel Size |
2.8μm x 2.8μm |
|
Effective Pixels |
HD 1280(H)X800(V) |
|
Image Sensor |
1/4" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV80°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
41.5*30mm |
|
Cable Length |
1m/1.5m |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
