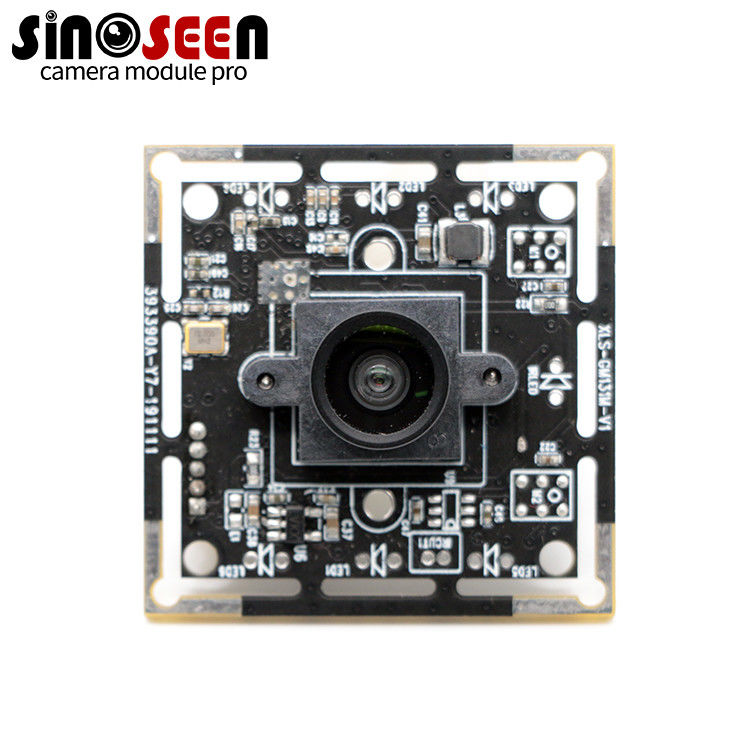

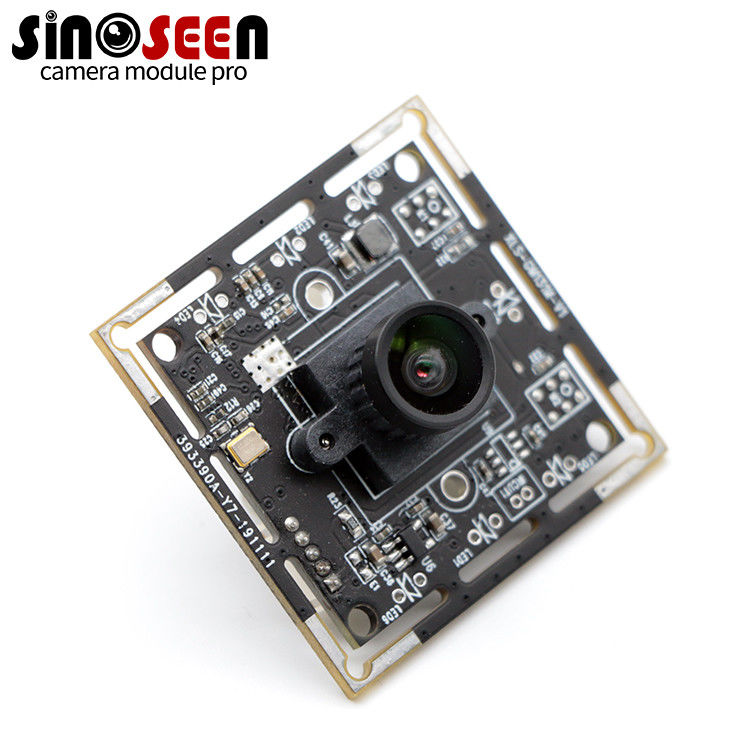

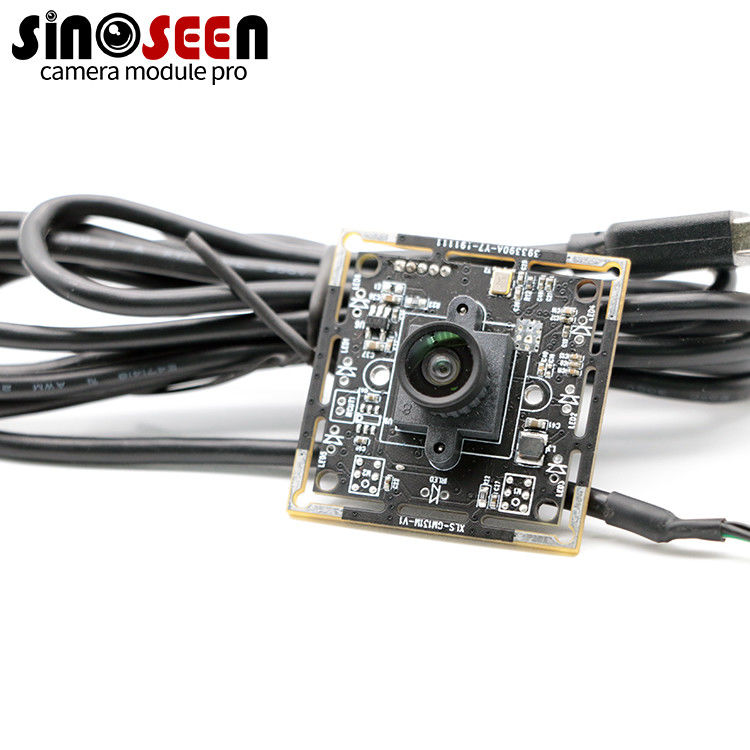

1MP 720P Doorbell Video Camera Module USB2.0 With GC1064 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM131M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/3.6" GalaxyCore GC1064 |
|---|---|---|---|
| Resolution: | 1MP (1280*720) | Dimensions: | 38x38mm(customizable) |
| Lens FOV: | 120°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Support H264 |
| High Light: | 1MP 720P Video Camera Module,1MP Video Camera Module,rpi camera module |
||
Product Description
1MP 720P Doorbell Video Camera Module USB2.0 With GC1064 Sensor
1MP 720P Support H264 Format Output USB2.0 Camera Module With GalaxyCore CMOS Sensor GC1064
Camera Module USB
This is a 1MP USB camera module that supports H264 output with GC1064 from GalaxyCore. GC1064 is an outstanding and affordable chip. If you need a low-cost 1MP module that has good effects and can support H264 output, GC1064 will be a very good choice.
It supports the following resolutions:
MPEG
1280x720 at 30fps 640x480 at 30fps 640x360 at 30fps 320x240 at 30fps 160x120 at 30fps
YUYV2
1280x720 at 5fps 640x480 at 30fps 640x360 at 30fps 320x240 at 30fps 160x120 at 30fps
This 1MP H264 supported USB camera module is widely used in access control equipment, advertising all-in-one machines, cat eye access control, video doorbell, notebooks and other fields
|
Model No |
SNS-GM131M-V1 |
|
Sensor |
1/3.6" GalaxyCore GC1064 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
4.2µm x 4.2µm |
|
Protocol & Connection |
Plug-&-Play (UVC compliant) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Output Format |
Raw Data 10bits |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
41dB |
|
Interface type |
USB2.0 |
|
Lens FOV |
120° |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Microphone |
2 |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
