Metal Housing USB 1MP Camera Module HD 720p UVC Compliant Drive
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-H62-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" SOI JX-H62 |
|---|---|---|---|
| Resolution: | 1MP 1296 (H) X 732 (V) | Dimensions: | 38*38mm(customizable) |
| Lens FOV: | 130°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | With Metal Housing |
| High Light: | USB 1MP Camera Module,HD 1MP Camera Module,1MP UVC Camera Module |
||
Product Description
Metal Housing USB 1MP Camera Module HD 720p UVC Compliant Drive
1MP USB Camera Module HD 720p UVC Compliant Drive Free Plug & Play With Metal Housing
USB 1MP Camera Module

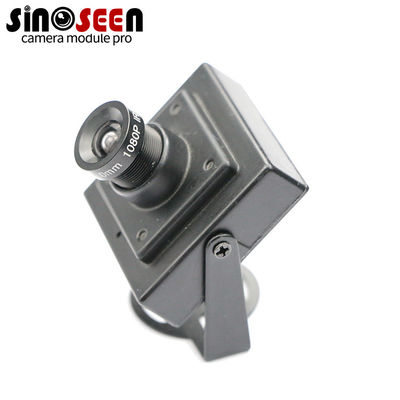

This is a 1mp USB camera module with H62 sensor, located in a 38*38mm metal housing, it is HD 720P. Can make it compact and low consumption. The camera module housing can be used in many applications, you can choose whether to carry it with you. If an enclosure is needed, there are plastic enclosures and metal enclosures, as well as waterproof enclosures with glass. The current standard housing is 38*38mm or 32*32mm, other sizes of housing can also be customized.
Specification
|
Model No |
SNS-1MP-H62-H1 |
|
Sensor |
1/4’’ SOI JX-H62 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1296 (H) x 732 (V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Resolution |
1280x720; 640x480; 320x240; |
|
Frame Rate |
30fps |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Shutter Type |
Electronic rolling shutter |
|
Sensitivity |
4300 mV/lux-sec |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
37dB |
|
Dynamic range |
72dB |
|
Interface type |
USB 2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 1.7mm |
|
Lens size: 1/2.5’’ |
|
|
FOV: 130° |
|
|
Thread size: M12*P0.5 |
|
|
Power consumption |
DC5V, 100mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm |
|
Operating temperature |
-30°C to 85°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
