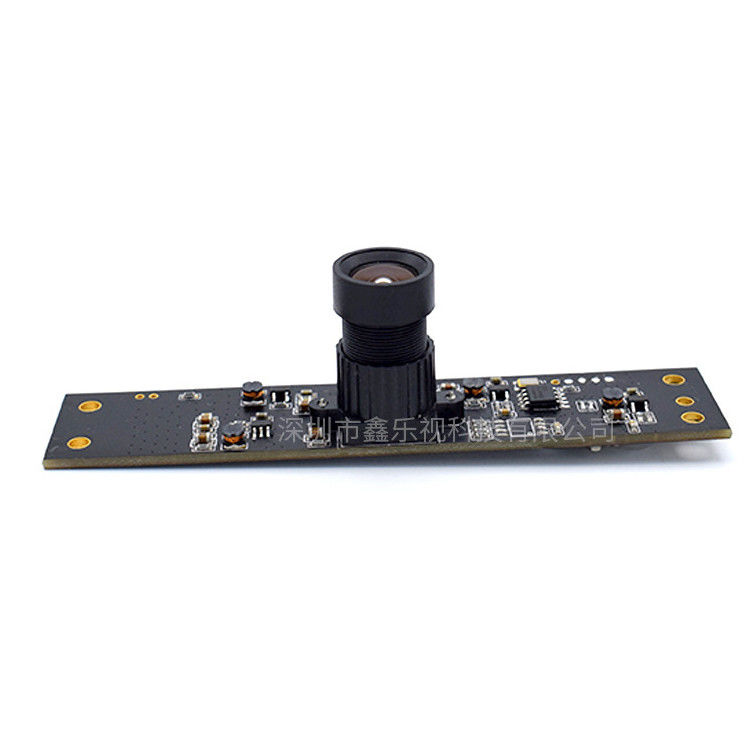

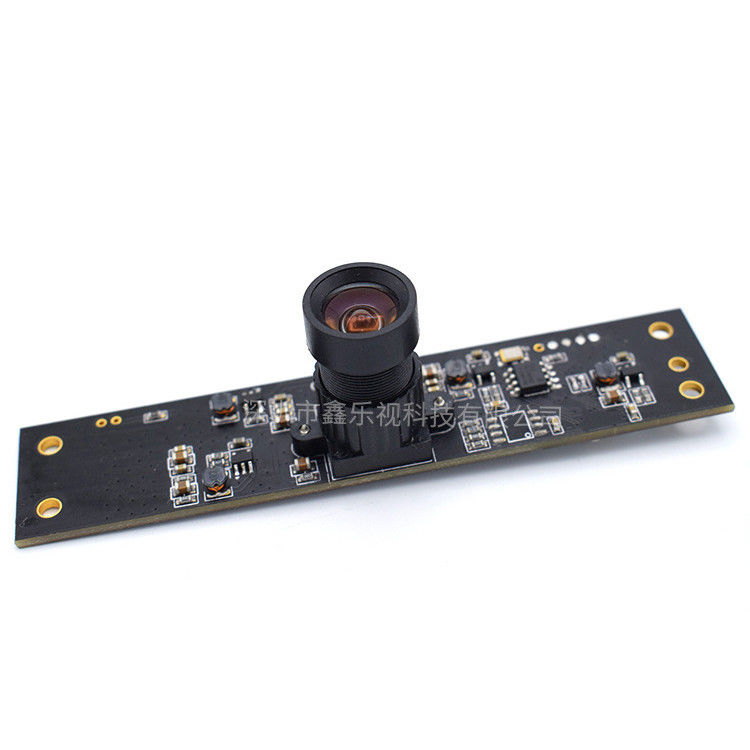

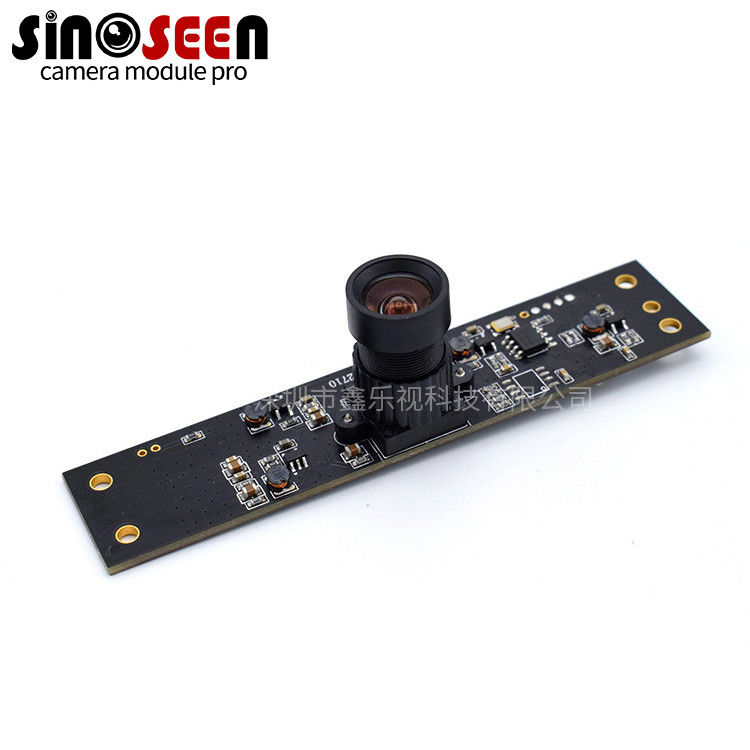

Fixed Focus 1080p Micro USB 2MP Camera Module For Kiosk ATM Machine
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OV2710-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Omnivision OV2710 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| High Light: | 32*32mm 2MP Camera Module,240FPS 2MP Camera Module,240FPS ov2710 camera |
||
Product Description
Fixed Focus 1080p Micro USB 2MP Camera Module For Kiosk ATM Machine
30FPS 1080p Micro HD 2MP USB Camera Module For Video Conference And Kiosk ATM Machine
USB 2MP Camera Module
This is our best selling 2MP USB camera module for video conference,notebook and kiosk ATM machine,it is with sensor OV2710 from Omnivision,which suooprt below frame rate:
1080p:30FPS
cropped 720P;60FPS
VGA:120FPS
QVGA:240FPS
OV2710 is widely used in notebook computers,high-end video conferencing and security.
The current camera module size is 95x20mm,and you can customize it whatever you need.
Specification
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
HD 1928(H)X1088(V) |
|
Image Sensor |
1/2.7" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV90°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
32*32mm |
|
Cable Length |
1m/1.5m |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
