High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-SC2315-S1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.7" SmartSens SC2315 CMOS
Resolution: 2MP (1920*1080) Dimensions: Customizable
Lens FOV: 85°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: HFR
High Light:

SC2315 1080p UVC Camera Module

,

SC2315 UVC Camera Module

,

SC2315 megapixel camera module

Product Description

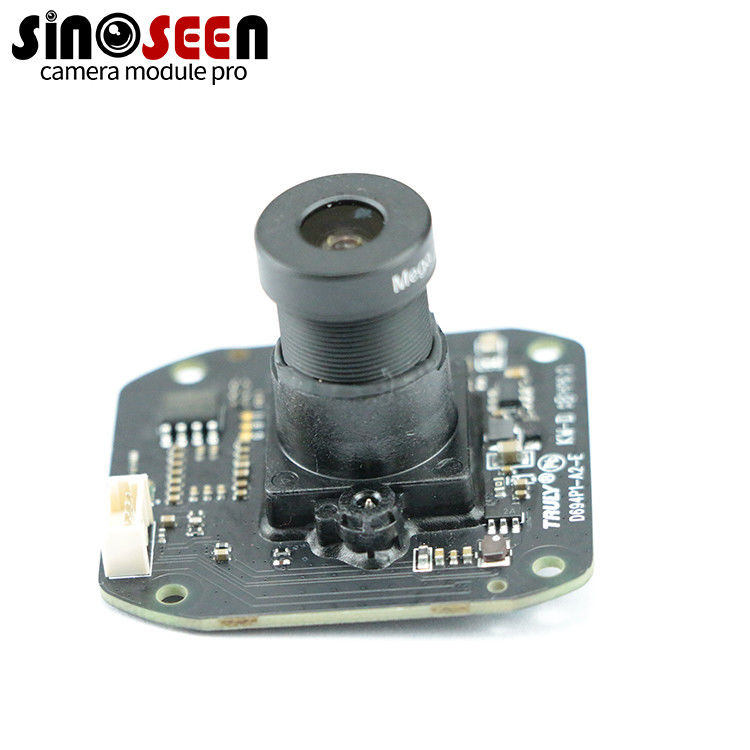

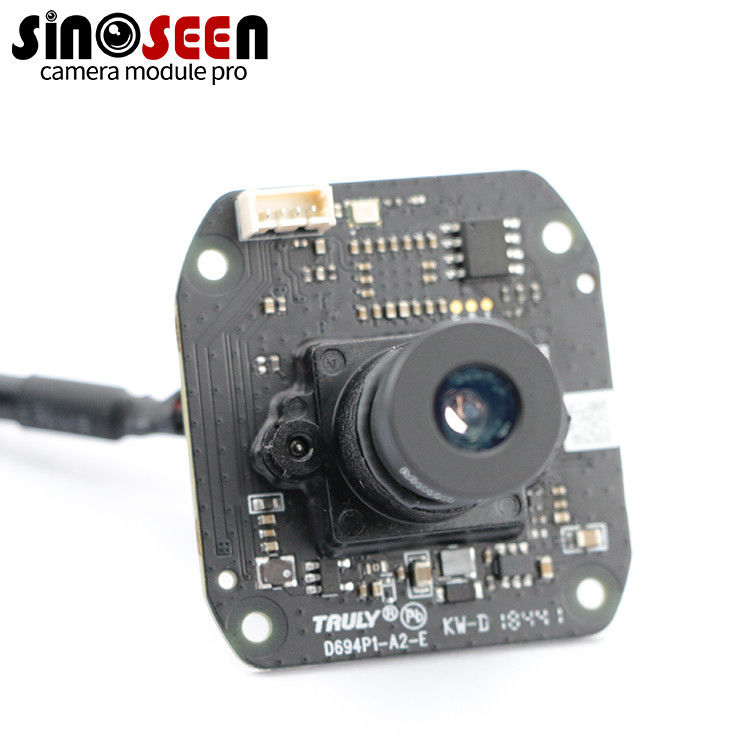

High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor

60FPS HFR High Frame Rate 2MP 1080p UVC Plug And Play Drive Free USB Camera Module



2MP 1080p Camera Module

This is a very good and cheap camera module. The biggest advantage of this camera module is that it supports a high frame rate of 60FPS at full resolution (1920x1080), while most similar products can only support it at 1920x1080 resolution.
The size of the camera module and the FOV of the lens, other parameters can be customized according to your requirements





Specification

Model No

SNS-2MP-SC2315-S1

Sensor

1/2.7’’ SmartSens SC2315 CMOS

Pixel

2 Mega Pixel

Most effective pixels

1920(H) x 1080(V)

Pixel Size

3.0µm x 3.0µm

CRA

12°

Chroma

Color

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

42dB

Dynamic range

82dB

Sensitivity

4800mV / lux-sec

Interface type

USB2.0

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 3.6mm

Lens Size: 1/2.7 inch

FOV: 85°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 190mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38MM x 38MM (32MM x 32MM)

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC



High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor 0High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor 1High Frame Rate 2MP 1080p UVC Camera Module 60FPS SmartSens SC2315 Sensor 2



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
