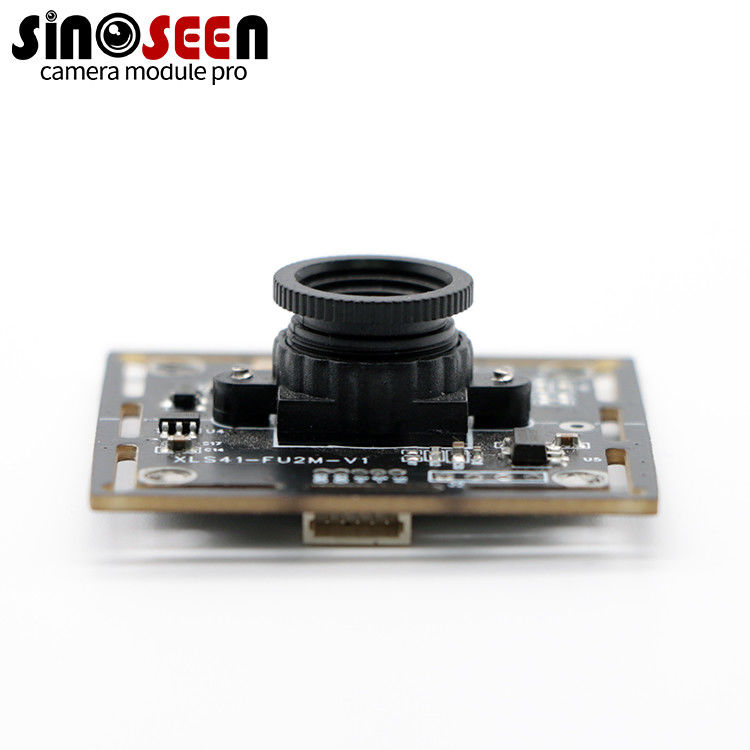

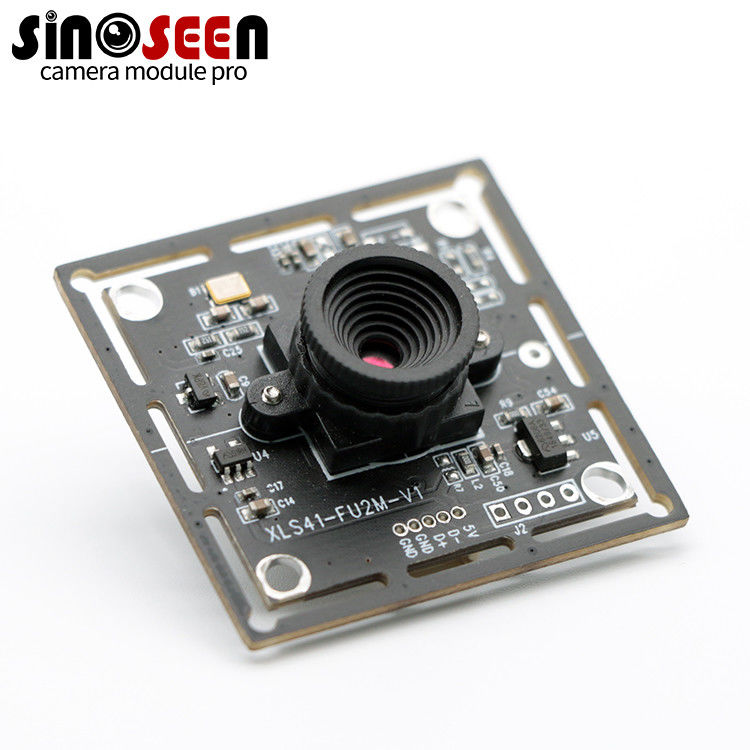

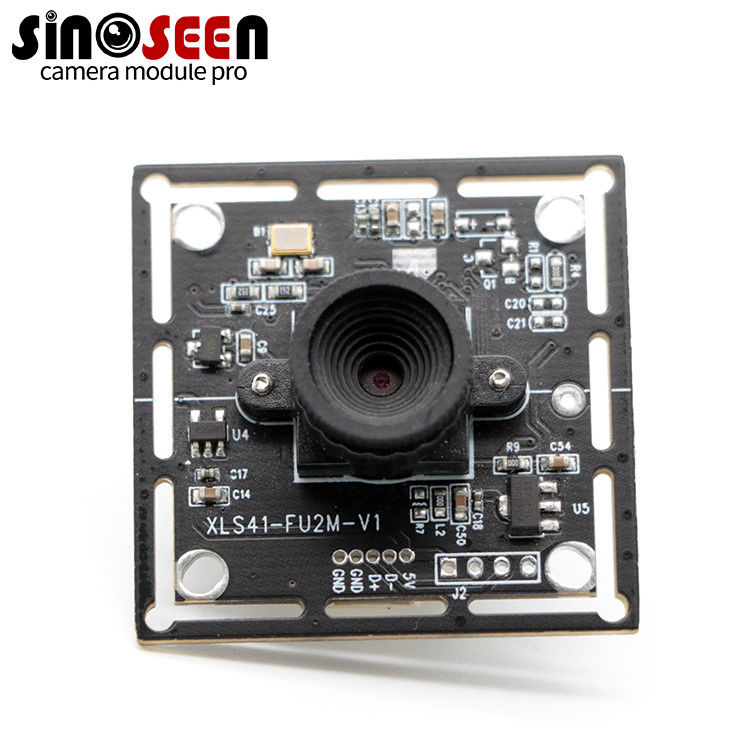

GC2145 Sensor 2MP Camera Module 1600x1200 USB2.0 Interface Adjustable
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-41-FU2M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/5" GalaxyCore GC2145 |
|---|---|---|---|
| Resolution: | 2MP (1600*1200) | Dimensions: | 38x38mm Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | 4:3 |
| Highlight: | 1600x1200 2MP Camera Module,GC2145 2MP Camera Module,GC2145 color camera module |
||
Product Description
GC2145 Sensor 2MP Camera Module 1600x1200 USB2.0 Interface Adjustable
Low Cost 2MP 1600x1200 USB Camera Module With GalaxyCore GC2145 CMOS Sensor
2MP Camera Module
This is a very economical 2MP USB camera module. It uses the GC2145 produced by the Chinese chip manufacturer GalaxyCore. With the gradual development of China, China's scientific and technological strength is also increasingly updated. Although the technology of some high-end chips may not be comparable to some large international chip manufacturers, our performance is also excellent for low-end chips, and we can achieve very cheap prices.
It supports below frame rate:
1600x1200 @15fps
1280x720 @ 15fps
640x480 @ 30 fps
320x240 @30fps
If you consider a 2MP USB camera module with good performance and affordable price, believe me, this will be a good choice for you.
Specification
|
Model No |
SNS-41-FU2M-V1 |
|
Sensor |
1/5" GalaxyCore GC2145 |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1600(H) x 1200(V) |
|
Pixel Size |
1.75µm x 1.75µm |
|
Protocol & Connection |
Plug-&-Play (UVC compliant) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Output Format |
10b / 12b RAW |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Interface type |
USB2.0 |
|
Lens FOV |
90° |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Microphone |
2 |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
