120 Degree Wide Angle Lens Digital Camera Module 1080P 2MP High Dynamic Range
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-FPC02C10-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Smart Camera Module | Sensor: | 1/2.8" Omnivision OS02C10 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | Customizable |
| Lens FOV: | 120° | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | 2MP 1080P Digital Camera Module,OS02C10 Digital Camera Module,OS02C10 smart camera module |
||
Product Description
120 Degree Wide Angle Lens Digital Camera Module 1080P 2MP High Dynamic Range

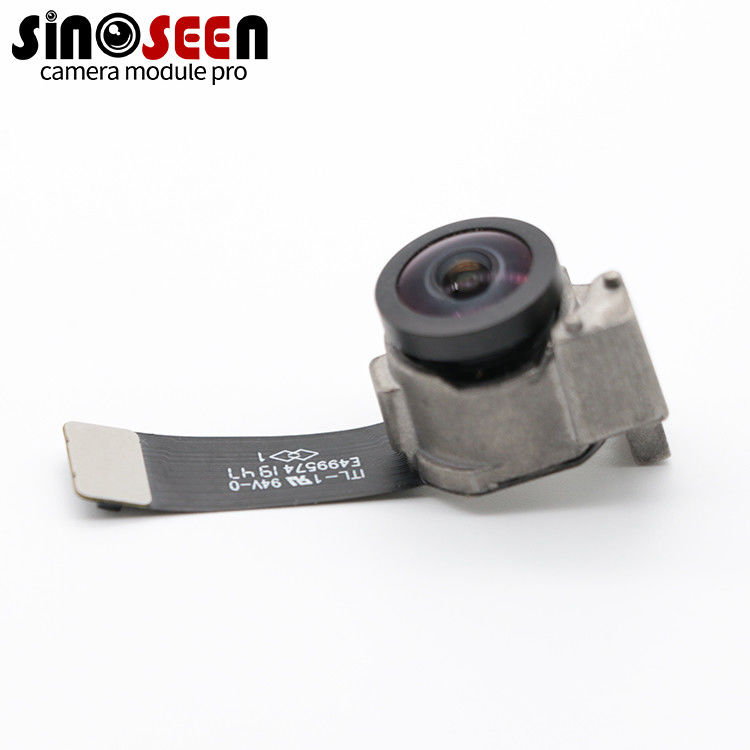

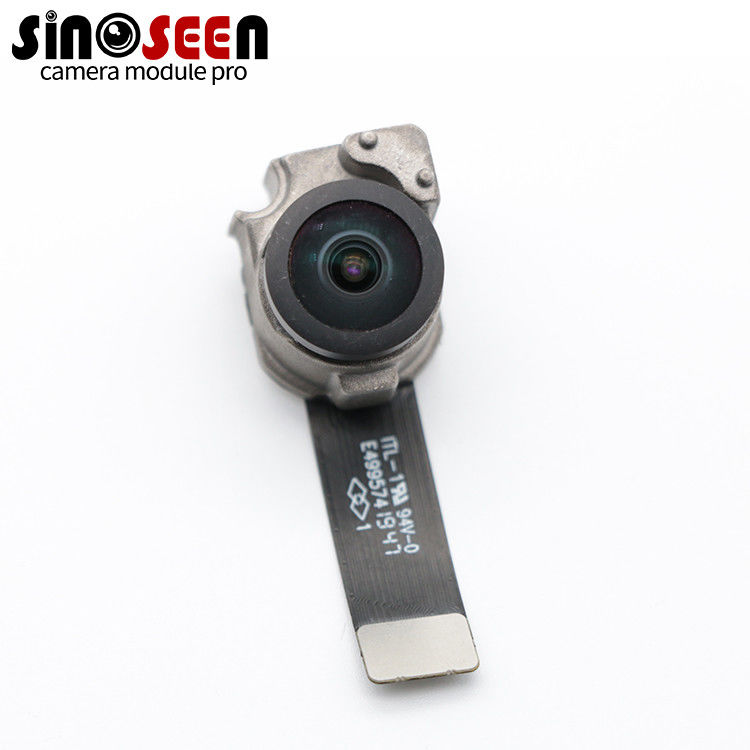

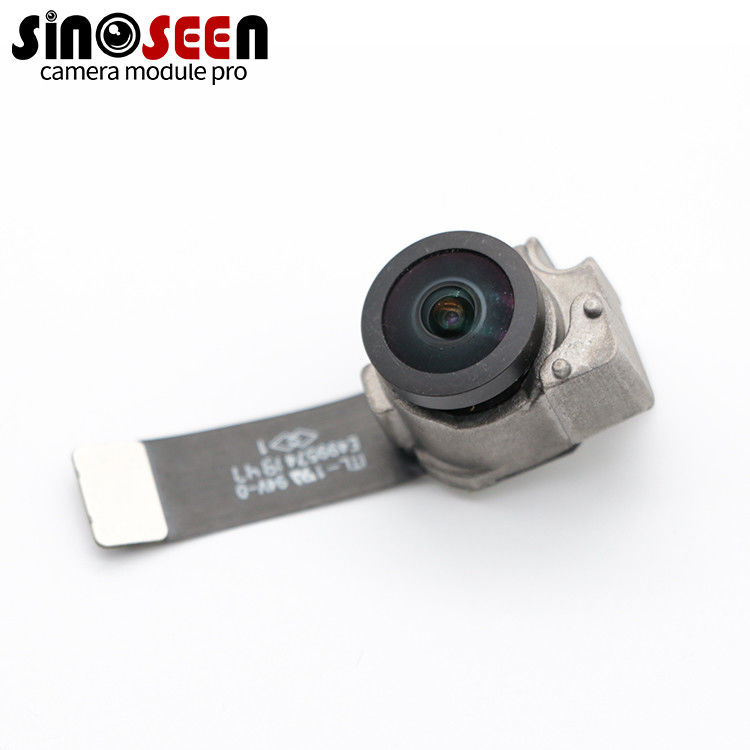

120 Degree Wide Angle Lens HDR 2MP 1080P MIPI Camera Module With Omnivision OS02C10
This is a MIPI camera module made with Omnivision OS02C10 with a 120 degrees wide angle lens,OS02C10 is a very good HDR sensor,it has below features:
active array size: 1920 x 1080
power supply:
analog: 2.8V
digital: 1.1V
I/O: 1.8V
power requirements:
active: 250 mW
temperature range:
operating: -30°C to 85°C junction temperature
(see table 8-2)
output interfaces: up to 4-lane MIPI CSI-2 or LVDS
input clock frequency: 6 ~ 36 MHz
lens size: 1/2.8"
lens chief ray angle: (see figure 10-3)
SCCB speed: up to 1 MHz
scan mode: progressive
shutter: rolling shutter
output formats: single exposure HDR - 16-bit
combined RAW, 12-bit (PWL) compressed combined
RAW; dual exposure HDR - 16-bit combined RAW +
12-bit VS RAW, 12-bit (PWL) compressed combined
RAW + 12-bit VS RAW; 3-exposure HDR - 12-bit
long exposure+12-bit medium exposure+12-bit short
exposure
maximum image transfer rate:
40X3 fps @ 1080p in 10-bit
30X3 fps @ 1080p in 12-bit
sensitivity: 32,000 e- /Lux-sec (green pixel response
at 530 nm illumination)
max S/N ratio: 40.8 dB
dynamic range:
>120 dB DCG+VS staggered HDR and
3-exposure staggered HDR
pixel size: 2.9 µm x 2.9 µm
image array area: 5614.4 μm x 3178.4 μm
package dimensions: 8903 μm x 7100 μm
Specification
|
Module No |
SNS-FPC02C10-V1 |
|
Pixel Size |
3μm x 3μm |
|
Effective Pixels |
1920×1080 |
|
Video output |
10-bit paeallel/one-lane MIPI RAW RGB(10-bit) |
|
Active Array Size Video Rate
|
1080P @ 30 fps 720P @ 60fps 640×480 @ 120fps 244×328 @ 240fps |
|
Image Sensor |
1/2.8" OS02C10 HDR |
|
Sensor Type |
OS02C10 |
|
Lens view |
FOV120°(optional),F/N(optional) |
|
TV Distortion |
<15% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:2.8V DOVDD:1.8V DVDD:1.1V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
