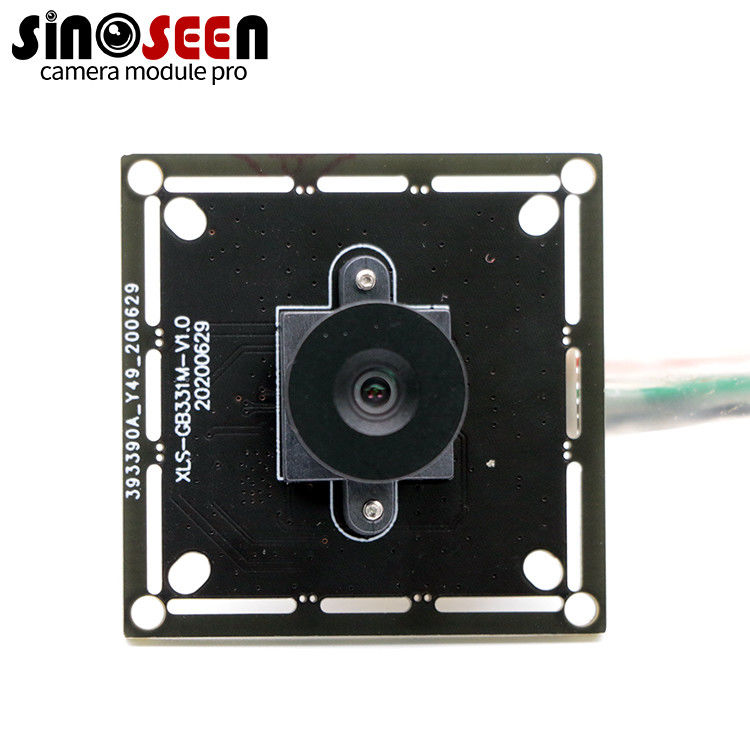

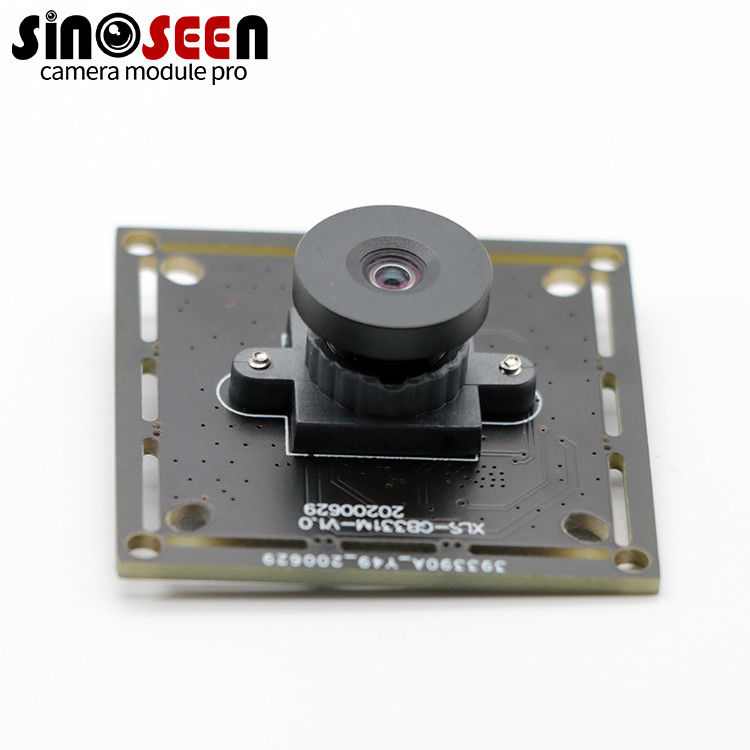

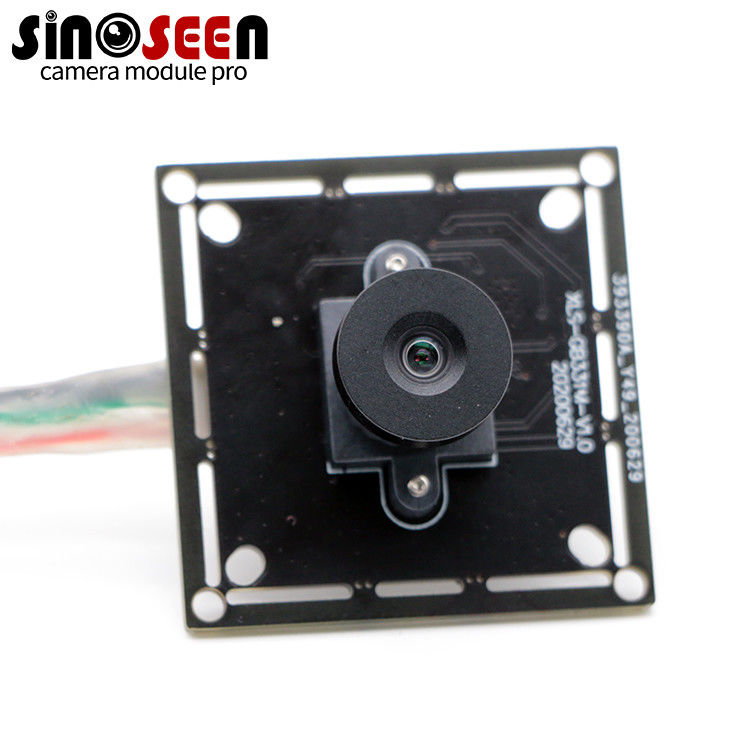

Fixed Focus AR0144 Global Shutter Camera Module 1MP Color Image
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GB331M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" ON Semiconductor AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 1MP AR0144 Global Shutter Camera Module,1MP Global Shutter Camera Module,1MP Ar0144 Camera Module |
||
Product Description
Fixed Focus AR0144 Global Shutter Camera Module 1MP Color Image
Fixed Focus 1MP Color Image Global Shutter AR0144 USB Camera Module
AR0144 usb camera module
This is a global exposure USB camera module made with AR0144 sensor from ON Semiconductor. Its resolution is 1MP (1280x800). It is one of the few color global exposure sensors.
For shooting moving objects, especially fast moving objects, in addition to keeping the exposure time as low as possible, the global shutter camera should be used as much as possible. The low exposure time is to avoid motion blur, and the global shutter is selected to avoid distortion. According to the principle described above, if you use a rolling shutter to shoot a moving object, the time for each row to freeze is different, so the object will be deformed like a parallelogram.
Therefore, this AR0144 module is often used in QR code scanning, high-speed moving object capture, high-speed ETC charging and other fields.
So if you need to use your camera module to shoot moving objects, AR0144 camera module will be a very good choice.
Specification
|
Model No |
SNS-GB331M-V1 |
|
Sensor |
1/4’’ ON Semiconductor AR0144 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280H x 800V |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
63.9dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Dimension |
38x38MM customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
