Drive Free 2MP USB Parallel Camera Module With GalaxyCore GC2145 Sensor
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-YDD10F2M-V2 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/5" GalaxyCore GC2145 |
---|---|---|---|
Resolution: | 2MP (1600*1200) | Dimensions: | Customizable |
Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | 4:3 |
Highlight: | 2MP USB Parallel Camera Module,gc2145 Parallel Camera Module,2MP gc2145 camera |
Product Description

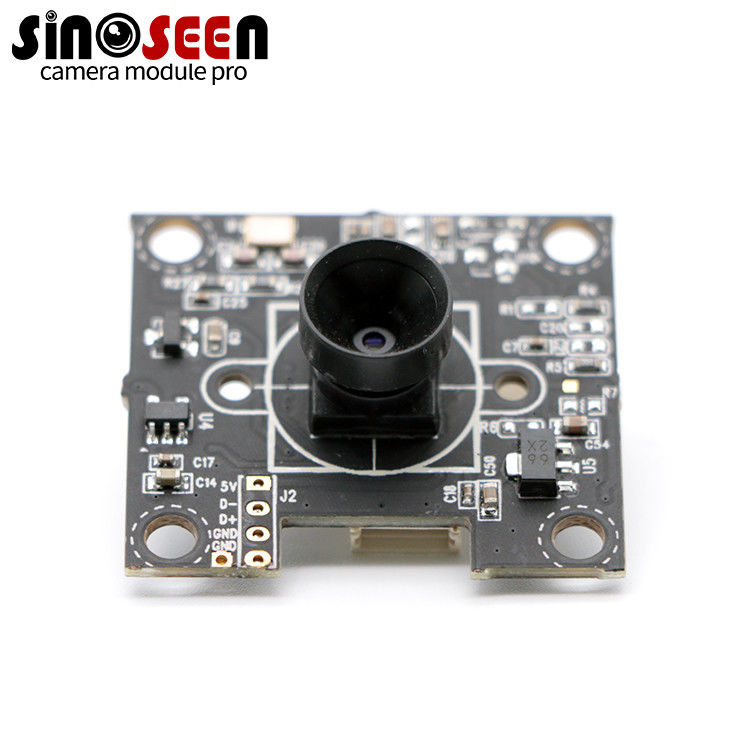

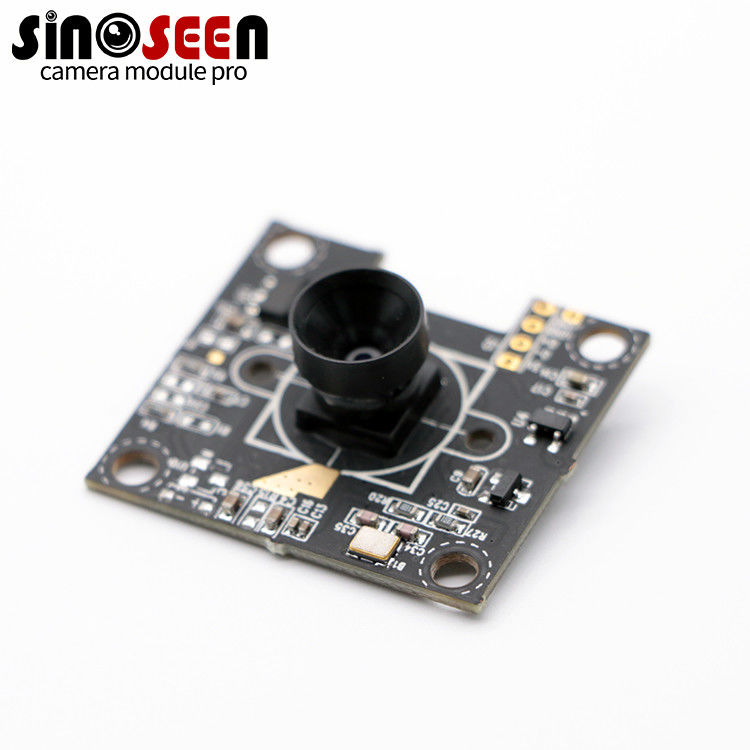

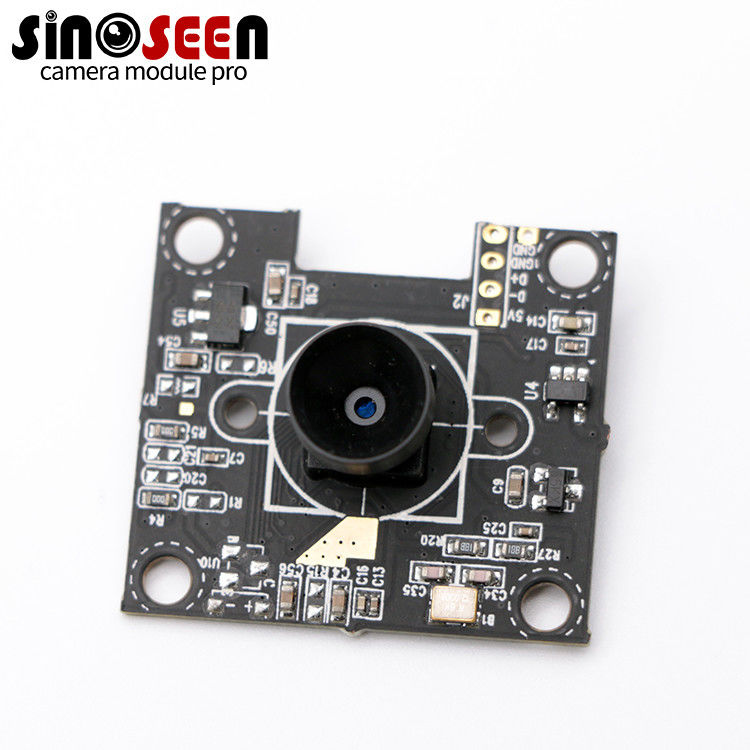

Drive Free 2MP USB Parallel Camera Module With GalaxyCore GC2145 Sensor
Customizable 2MP Drive Free Plug And Play USB Camera Module With GalaxyCore GC2145 Sensor
USB Camera Module
This is another 2MP GC2145 USB camera module we customized, it's drive free, plug&play.It can output 1600x1200 images, if you happen to need a 4:3 aspect ratio, you can try to use it to customize your own camera module.
You can customize the size you want according to your needs, or you can choose the lens you want, large lens, small lens, large angle, small angle are no problem. In mass production, you can also customize the cable length you want according to the actual situation. In short, everything can be customized, and we can help you achieve all your needs.
Specification
Module No |
SNS-YDD10F2M-V2 |
Pixel Size |
1.75μm x 1.75μm |
Effective Pixels |
1600(H)X1200(V) |
Video output |
YUV2 MJPG |
Active Array Size Video Rate |
1600x1200 @15fps 1280x720 @ 15fps 640x480 @ 30 fps 320x240 @30fps |
Image Sensor |
1/5" GC2145 |
SNR max |
TBDdB |
Dynamic range |
TBDdB |
OTG |
USB2.0 OTG |
Drive free |
USB Video Class(UVC) |
AEC |
Support |
AEB |
Support |
AGC |
Support |
Adjustable parameters |
Brightness/Contrast/Color saturation/Hue/Definition/ |
Lens view |
FOV90°(optional),F/N(optional) |
Interface |
USB BUS POWER 5P-1.0mm |
Working voltage |
DC5V |
Working current |
120mA~220mA |
Operating temperature |
0~60℃ |
Storage temperature |
-20~70℃ |
Cable length |
Defualt |
OS |
WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
