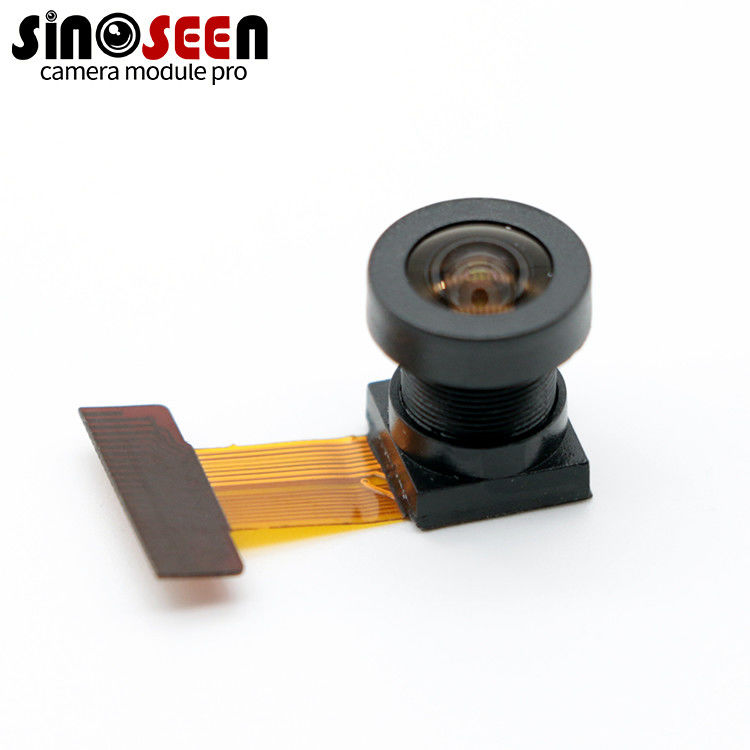

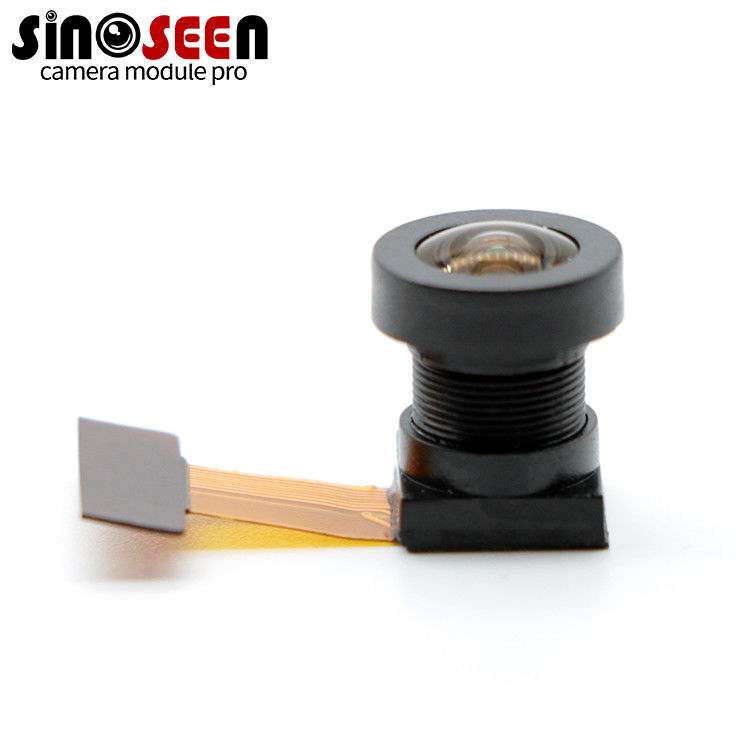

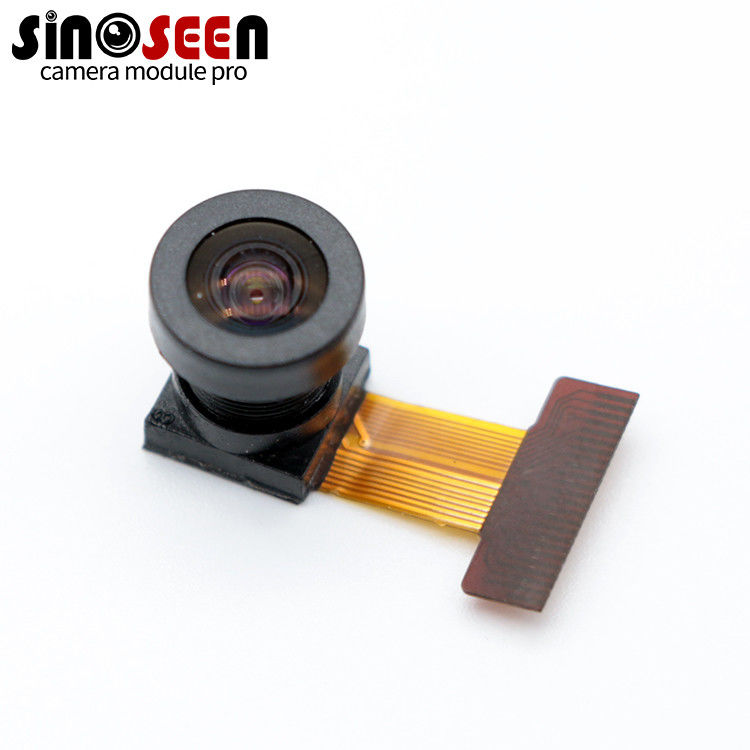

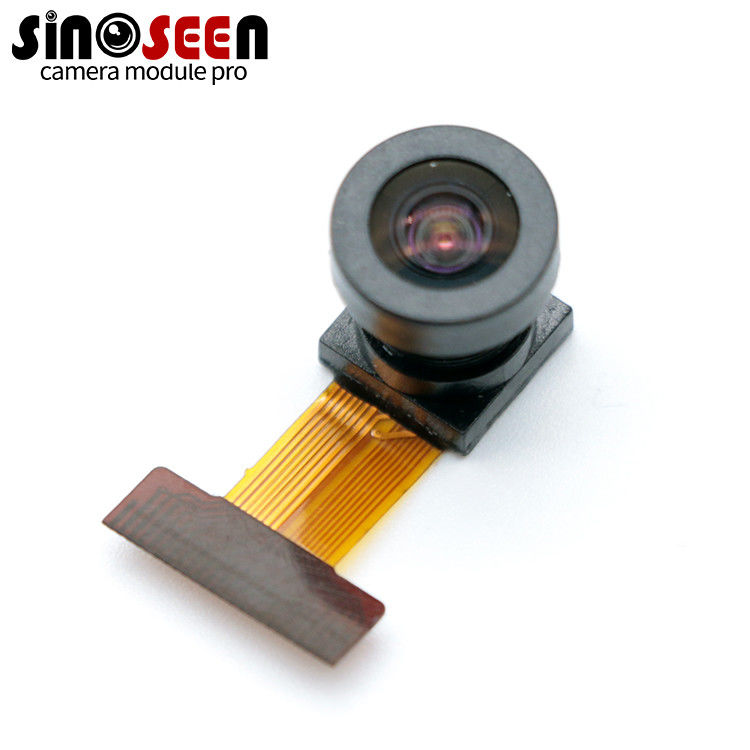

Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor

Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-FPC2685-V1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: MIPI Camera Module Sensor: 1/5" Omnivision OV2685
Resolution: 2MP 1600x1200 Dimensions: Customizable
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: MIPI Feature: Non Distortion
High Light:

FH26 MIPI Camera Module

,

OV2685 MIPI Camera Module

,

OV2685 mobile camera module

Product Description

Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor

2MP Fixed Focus FH26 MIPI Interface Camera Module With Omnivision OV2685 Sensor



This is a 2MP MIPI camera module with OV2685,OV2685 is a 1/5" color image sensor that has a resolution of 1600x1200 with a frame rate up to 30FPS,it has below features:



1.75umx1.75um pixel with OmniPixel-3HS technology

optical size of 1/5"

28.0° CRA

supports image size:UXGA(1600Hx1200V),1600 HD+(1600Hx900V),SXGA(1280Hx960V),720p(1280Hx720V),and more

support for output formats:10-bit RGB RAW,8-bit YUV

2MP at 30FPS

programmable controls for frame rate,mirror and flip,cropping,and windowing

two-wire serial bus control(SCCB)

MIPI serial output interface(2-lane MIPI)

automatic image control functions:automatic exposure control(AEC),automatic gain control(AGC),auto white balance(AWB),and image de-noise

on-chip phase lock loops(PLLs)

image quality control:defect pixel correction,saturation,hue,gamma,lens correction,and automatic black level calibration

suitable for module size of TBD



It always used in cellular and picture phones,home entertainment,PC multimedia,toys and other applications.



Specification



Module No

SNS-FPC2685-V1

Pixel Size

1.75μm x 1.75μm

Effective Pixels

1600×1200

Video output

Raw Bayer10bit/8bit

Active Array Size Video Rate

30FPS

Image Sensor

1/5"

Sensor Type

Omnivision OV2685

Lens view

FOV90°(optional),F/N(optional)

TV Distortion

<1%

AEC

Support

AEB

Support

AGC

Support

Operating voltage

AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V

Operating temperature

0~60℃

Storage temperature

-20~70℃

Dimensions

Customizable

Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor 0Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor 1Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor 2

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
