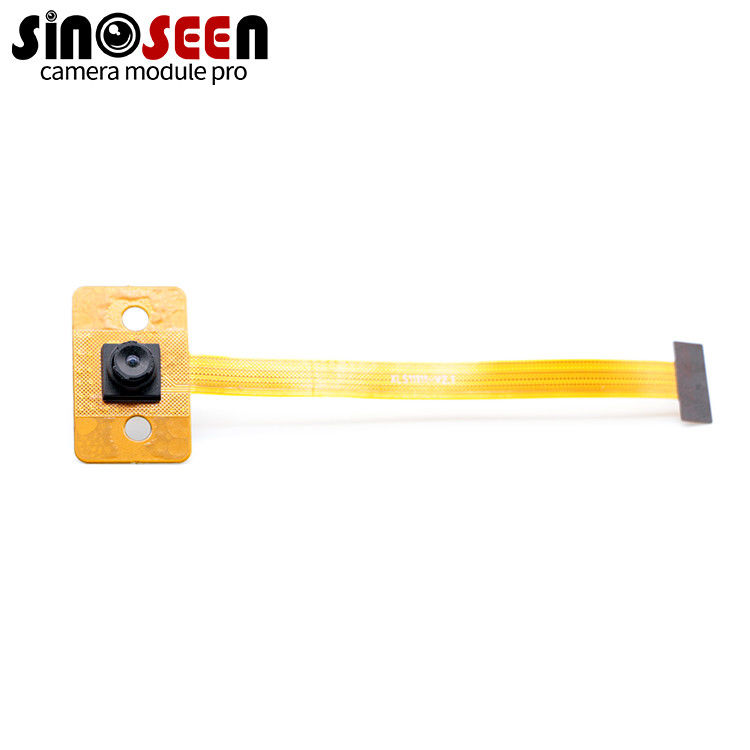

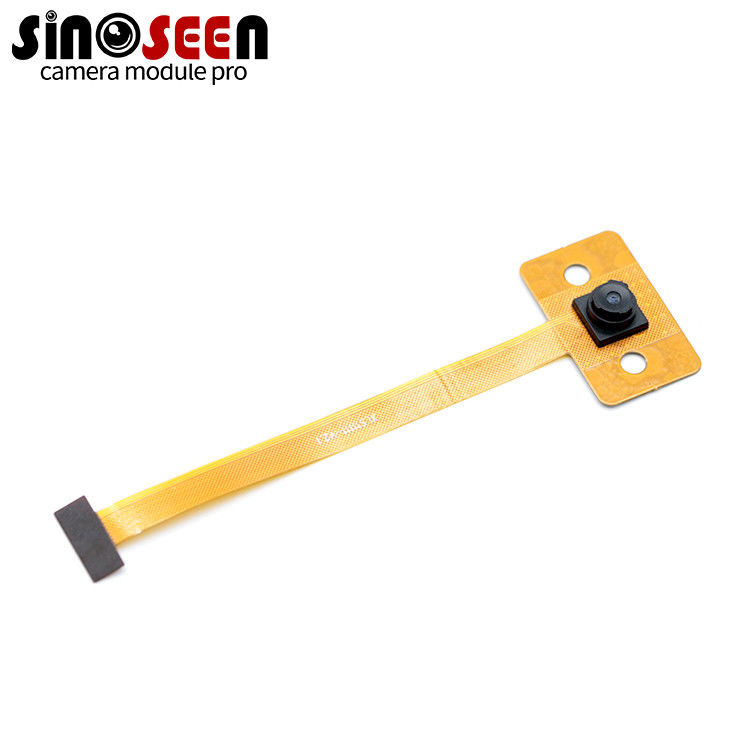

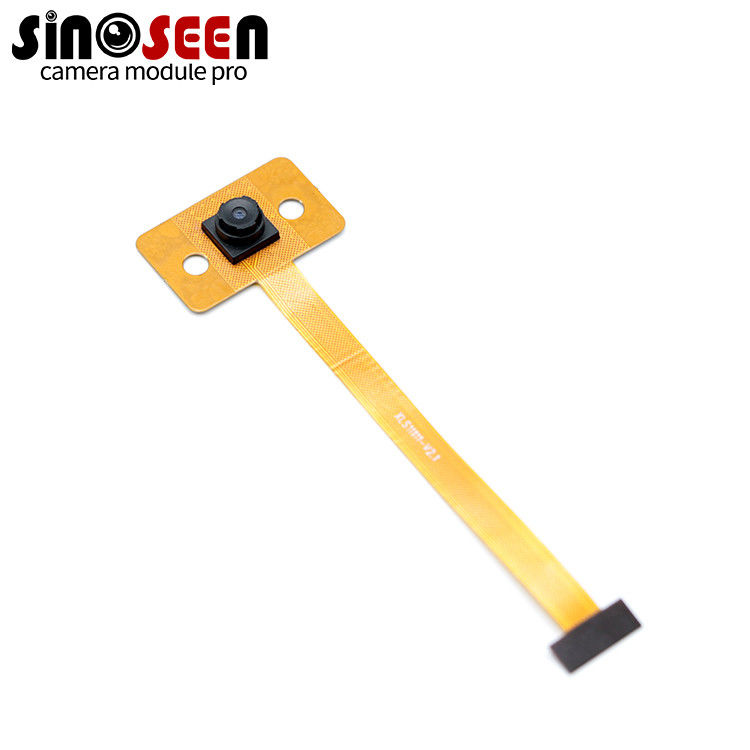

NOVATEK NT99141 MIPI Camera Module 720P HD Auto White Balance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-NT99141-M1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/4" Novatek NT99141 |
|---|---|---|---|
| Resolution: | 1MP 1280Hx720V | Dimensions: | Customizable |
| Lens FOV: | 65°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HD |
| High Light: | NT99141 MIPI Camera Module,1MP 720P MIPI Camera Module,NT99141 720p camera module |
||
Product Description
NOVATEK NT99141 MIPI Camera Module 720P HD Auto White Balance
Customizable Size Low Cost 720P HD MIPI Camera Module With NT99141 Sensor From NOVATEK
This is a low-cost 720P MIPI camera module with NT99141 sensor from Novatek, The NT99141 is such a high performance image sensor that by incorporating a 1284H x 724V image array, an on-chip 10 bits ADC, and embedded image signal processor all the required image signal processing functions -including sharpness, noise reduction, defect correction, gamma, and color saturation adjust-are in default supported, while its easy controllability and usability are maintained by the two-wire serial interface bus.It is suitable for use in products such as cellular phones and PC cameras.
It has below features:
Low dark current
Auto black level calibration
Two wire serial interface, 16-bit address and 8-bit data
Support output format: YCbCr (4:2:2), RGB565, RGB555, RGB444, Raw, CCIR656, and JPEG also. Support image size: HD (1280 x 720), and any size from scaling down
Lens shading correction
Automatic control functions: Auto-Exposure control(AE), Auto-White Balance(AWB)
Including: Sharpness, noise reduction, defect correction, gamma, color saturation adjust.
Specical effects included.
Embedded 1.5V regulator for core power
Target module size: 8mm x 8mm
Multi-Sensor Mode for 3D application.
You can customize the camera module with any size you need for your application.
Specification
|
Module No |
SNS-NT99141-M1 |
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
1280H×720H |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
1280x720@30FPS;640x360@60FPS |
|
Image Sensor |
1/4" |
|
Sensor Type |
Novatek NT99141 |
|
Lens view |
FOV65°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
