Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle

Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-5MP-IMX335-H1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/2.8" SONY IMX335 CMOS
Resolution: 5MP 2592(H) X 1944(V) Dimensions: 38mmx38mm(customizable)
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Starvis
High Light:

5MP night vision usb camera

,

imx335 night vision usb camera

,

imx335 camera

Product Description

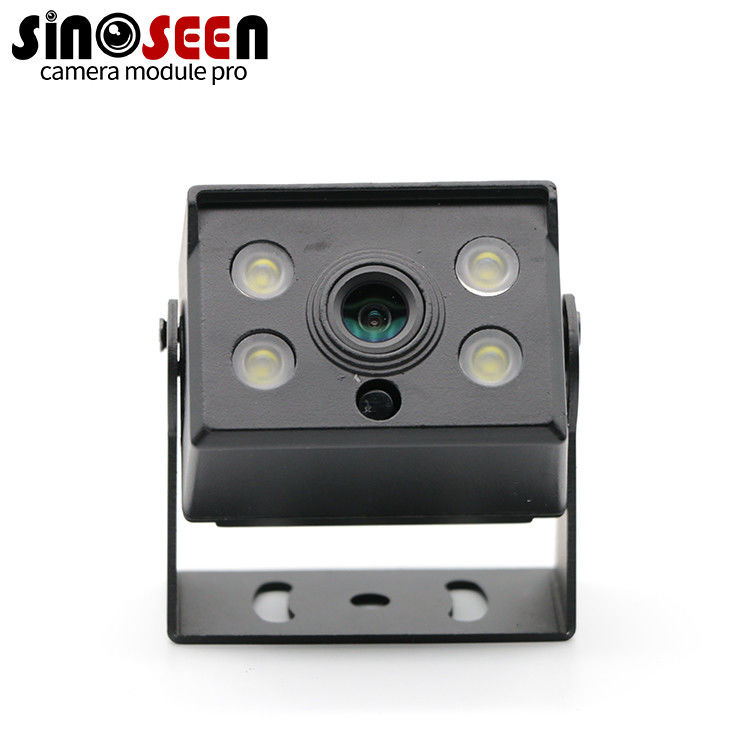

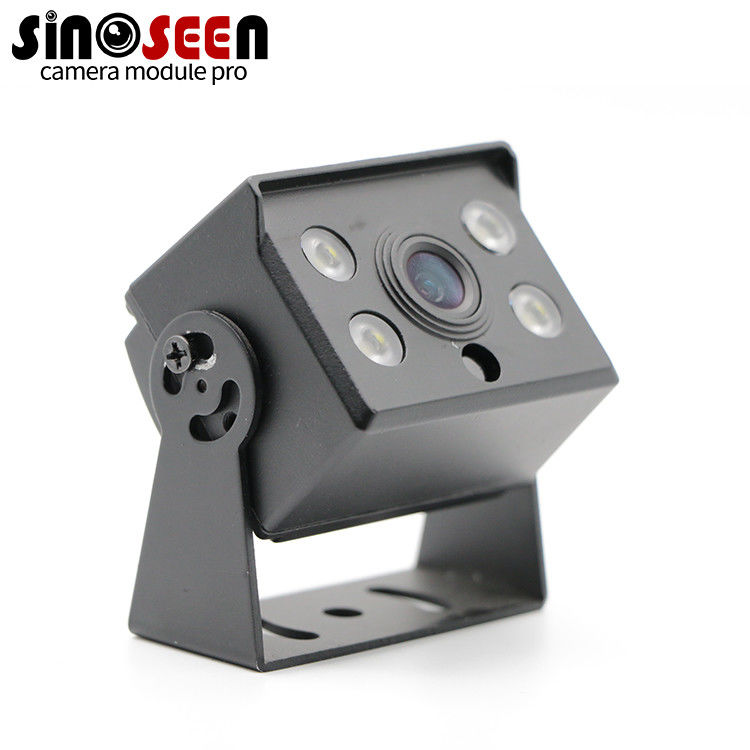

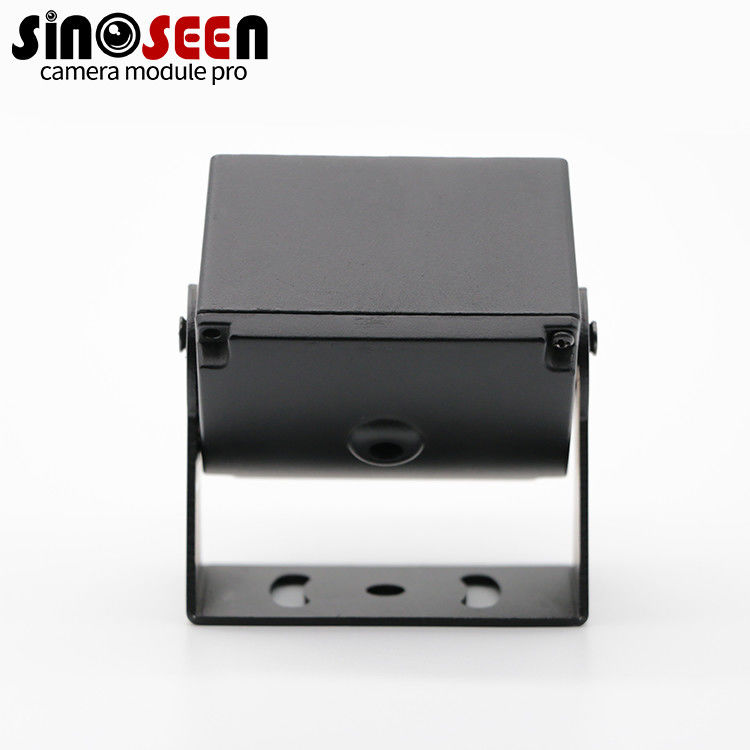

Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle

In Vehicle Night Vision USB Camera Module With Aluminum Alloy Housing And 4 LEDs



Night Vision USB Camera Module

This is our newly developed car camera module. It uses an all-aluminum alloy shell and uses waterproof rubber gaskets for waterproofing.
Today, with the rapid development of automotive electronics and security technology, on-board cameras have become indispensable hardware for traffic safety. It mainly has the following functions:
1. Provide reliable evidence for the analysis and judgment of traffic accidents.
2. It is convenient for drivers and passengers to check the situation in the car.
3. Provide a basis for handling problems such as passenger disputes, lost property finding, robbery and theft prevention in the car.
4. Provide monitoring of the environment inside and outside the vehicle compartment to provide safety guarantee for vehicle driving.
performance



Specification

Model No

SNS-5MP-IMX335-H1

Sensor

1/2.8’’ SONY IMX335 CMOS

Pixel

5 Mega Pixel

Most effective pixels

2592(H) x 1944(V)

Pixel Size

2.0µm x 2.0µm

Chroma

Color

Compression format

MJPEG / YUV2 (YUYV)

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

Microphone

Built-in

Dynamic range

72dB

Sensitivity

>= 2000mV

Interface type

USB2.0 high speed

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens

Focal length: 3.6MM



Lens Size: 1/2.8 inch



FOV: 90°



Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 150mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

38mm*38mm (compatible with 32mm*32mm)

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 60°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC




Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle 0Aluminum Alloy Housing Night Vision USB Camera Module 4 LEDs For Vehicle 1

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
